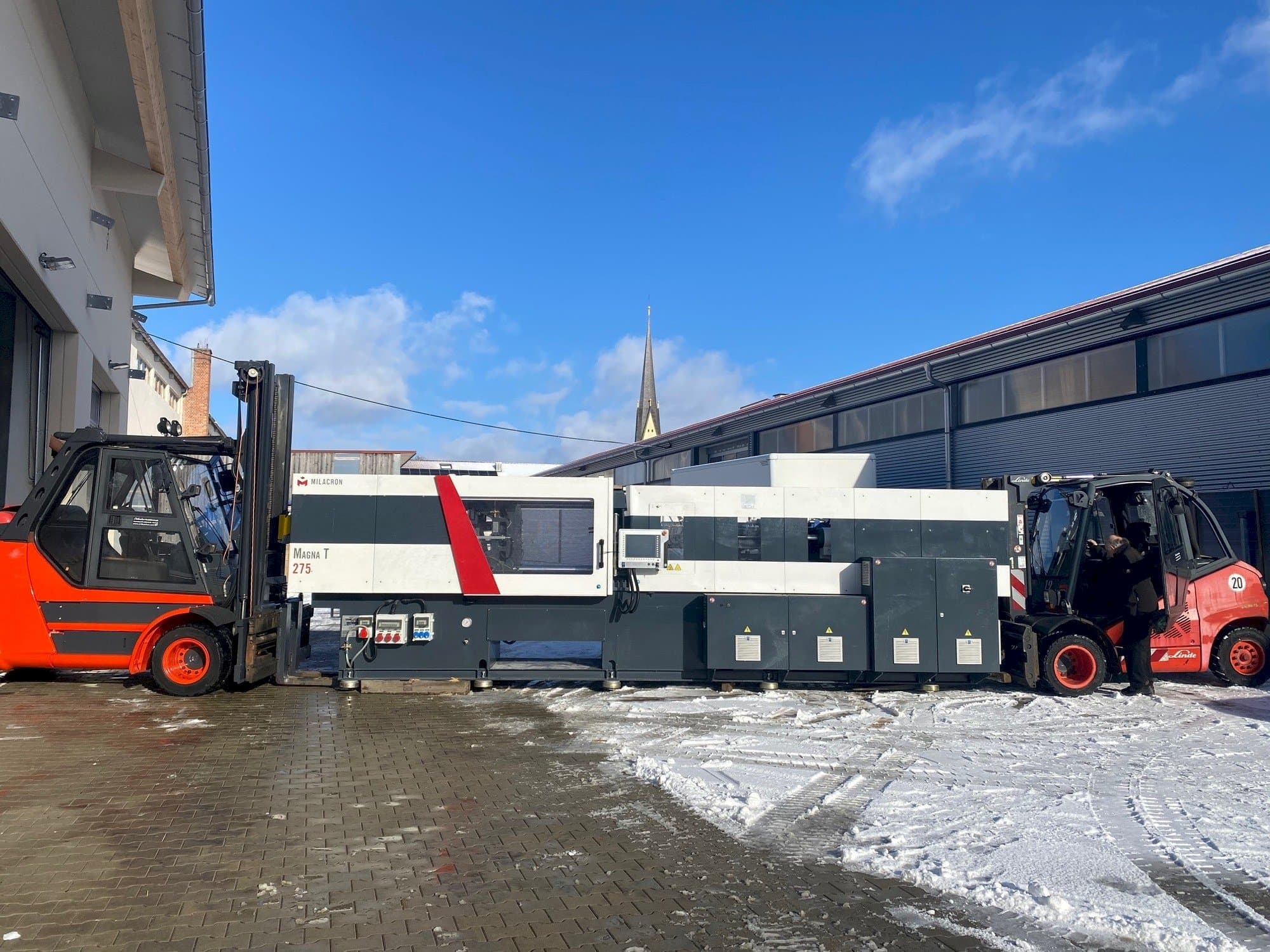

FERROMATIK - Magna T (MTs) - 275DE-INJ-FER-2018-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Injection unit 1540 in horizontal machine length axis with screw diameter 50 mm
  • - 2x hydraulic core pullers (2-fold)
  • - Thermoplastic equipment: bimetallic screw cylinder type: x 102
  • - Standard 3-zone screw aps with improved abrasive wear protection
  • - Cooling water battery with 10 control circuits
  • - Clamping force 2750 kn / plate distance max. 1580 mm
  • - Clear column distance 660 x 660 mm / mold installation height minimum 400 max 950 mm
  • - Mold opening stroke 610 mm / robust mono toggle lever for 50 tons and 80 tons
  • - Lifting unit: length 1000mm / width 1300mm / speed 6m/min / stroke approx. 450mm max. / load 150lg lifting / speed 2,5/min
• Qualitative Machine Benefits:
  • - Ejector or core pull can be moved in parallel via closing movement via separate pump
  • - Control system siemens s7 / kuka
  • - Injection unit 1540 / screw diameter 50mm / standard 3-zone screws aps
  • - Bimetallic screw cylinder type x 102 / hydraulic core pull 2-fold / cooling water battery with 10 control circuits
  • - Sar automation: dimensions 6000 x 5000 x 3000 mm
  • - Provision of inserts bushing diameter 11x6mm
  • - Combined provision of inserts diameter 8x3mm and 6x3mm
  • - Marking laser for dmc
  • - Component slide laser / sprue funnel / qs drawer
  • - Stack conveyor system with lifting unit : conveyor belt 1: length 3200mm / width 1300mm / speed 6m/min // conveyor belt 2: length 2400mm / width 1300mm / speed 6m/min

Extra information

• - Scope of delivery is machine without automation. The automation solution is not included in the price but is for sale at additional cost.

Payment Terms

• Payment in advance

• Asset Financing
