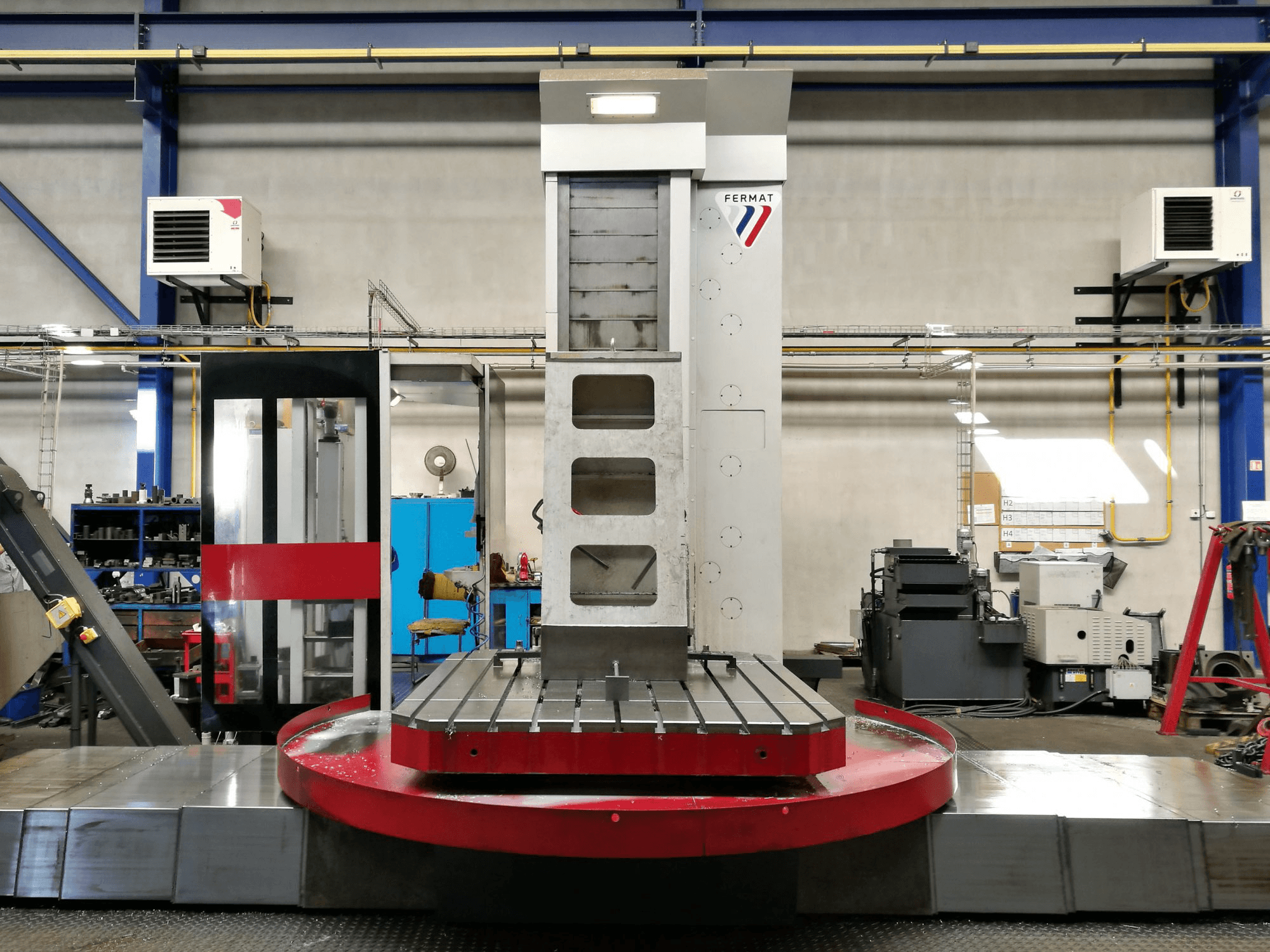

FERMAT WFT 13 CNC Boring Machine

Show in original language

This FERMAT WFT 13 CNC Boring Machine from Czech Republic was manufactured in 2014 and has a production record of only 4800 working hours. This highly accurate machine is equipped with a HEIDENHAIN iTNC 530 Control unit, and stands out for its chip conveyor and cooling spindle. Additionally, two pinions are continuously driving the table. It must be noted that this equipment has received a regularly serviced maintenance.

Overview

brand: FERMAT
year: 2014
MODEL: WFT 13 CNC
production hours: 4800
application type: Other Machine Tools
Location: Czech Republic
machine type: Boring Machine (Metal)
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - FERMAT WFT 13 CNC

General Data

Measurements width: 8500 mm
Measurements depth: 6940 mm
Measurements height: 5350 mm
Machine weight: 41900 kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530
CNC main language: Czech
CNC language customizable: Yes

Main drive

Spindle speed range: 3000 1/min

Movement

X-AXIS Movement: 3500 mm
Y-AXIS Movement: 2500 mm
Z-AXIS Movement: 1500 mm
W-Axis Movement: 730 mm

Workpiece

Workpiece weight: 15000 kg

Table

Outer length: 2200 mm
Outer width: 1800 mm

Media

Power consumption: 94 kVA
Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
