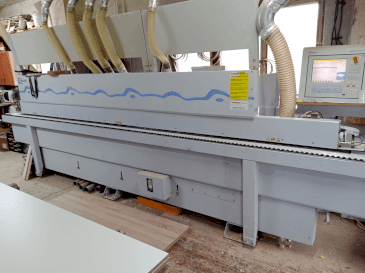

FELDER - Tempora 45.03 LXDE-EDG-FEL-2019-00001

Additional equipment

• - Upper and lower radius scraper blades
• - polishing units
• - neumatic insertion lock for workpiece distance monitoring
• - Lighting equipment: LED for Tempora 45.03L
• - Optional: extraction unit with the complete pipework

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Electrical: 3×400v, 50hz
  • - Speed: 9 m/min
  • - Drive motor: 0. 75 kw (s6)
  • - Minimum workpiece length: 140 mm
  • - Joining unit: 1. 5 kw, 12,000 rpm, max. Chip removal 2 mm, diamond cutter d-80 x 49 mm
  • - Cross-cut saw unit: high-frequency motor with 0. 35 kw, 12,000 rpm, adjustable cutting angle 0° to 10°
  • - Corner processing unit: for edge thicknesses of 0. 4-3 mm, min. Workpiece length 270 mm
  • - Flush and radius trimming unit: positioning-controlled, 0. 75 kw, 12,000 rpm (both top and bottom)
  • - Gluing unit: teflon-coated, for 1. 5 kg eva granulate, synchronized glue roller, suitable for pur glue
• Qualitative Machine Benefits:
  • - Rcd to be connected upstream: type b, tripping current 300ma
  • - Segmented, rubberized support pads with quick-change system

Extra information

• - Machine still under power
