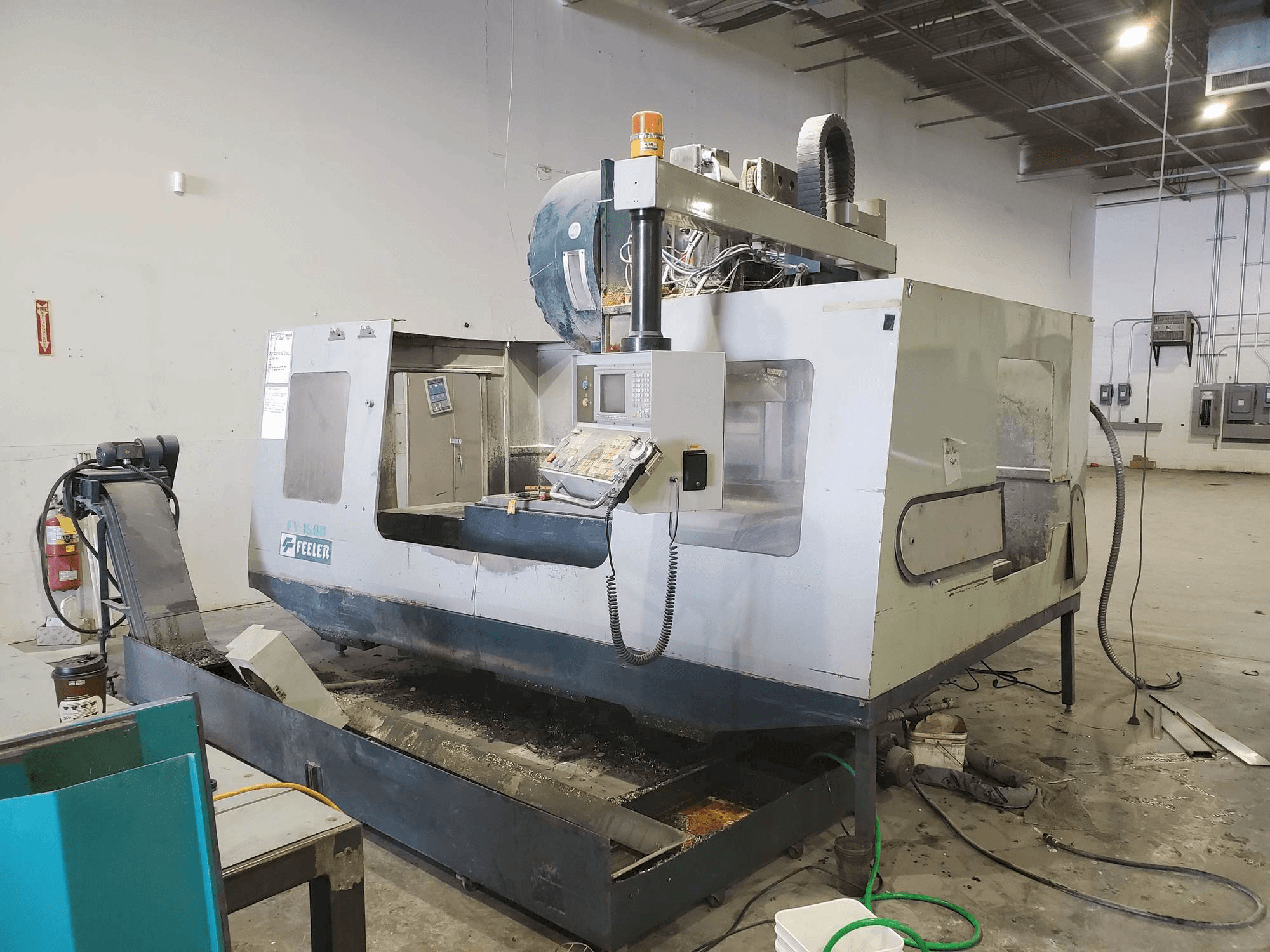

Feeler FV-1500A Milling Machine

Show in original language

This Feeler FV-1500A Milling Machine from the year 1999 was made in Taiwan. It is equipped with a Mitsubishi M520 control unit. This machine is capable of working with a spindle speed 50 - 6000 rpm. It includes a BT50 tool holders with the cart.

Overview

brand: Feeler
year: 1999
MODEL: FV-1500A
application type: Milling
Location: Canada
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Feeler FV-1500A

Control Unit

Model: M520
Brand: MITSUBISHI

Main drive

Spindle speed range: 50 - 6000 1/MIN
Tool taper: BT50

Movement

X-AXIS Movement: 1524 mm
Y-AXIS Movement: 762 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 750 mm
Outer width: 1700 mm
Table load: 1497 kg

Additional equipment

- BT50 tool holders with the cart

Additional Information

Machine Benefits

Technical Machine Benefits:
- - No. Of tools: 24
- - Horse power: 20
- - Spindle nose to table: 142 mm - 800 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
