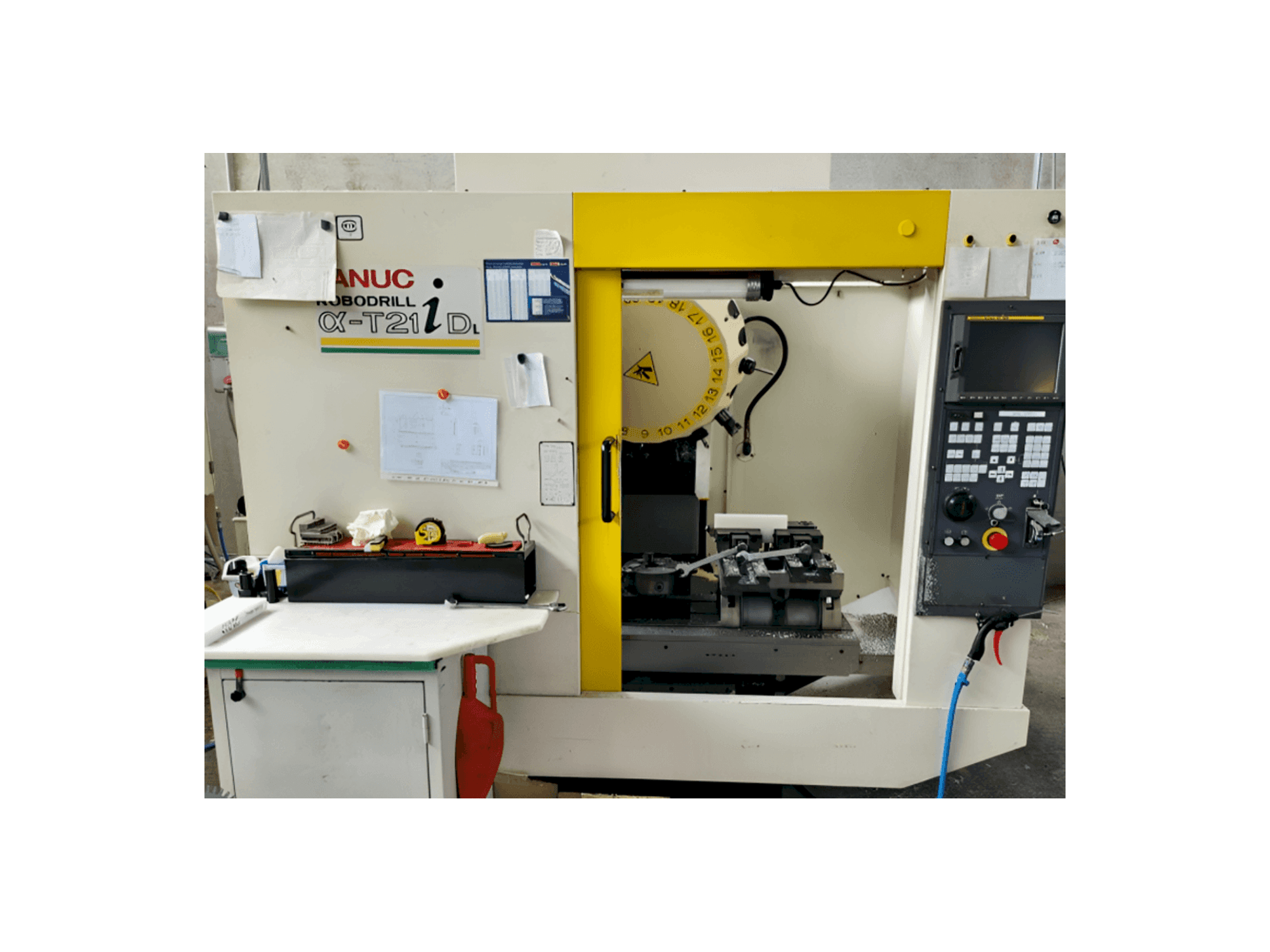

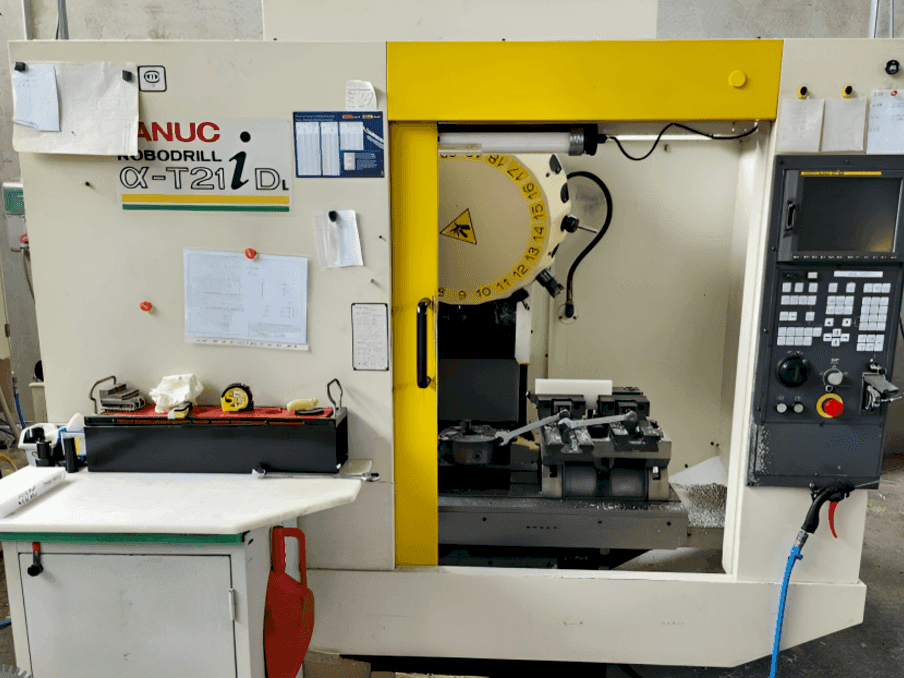

FANUC Robodrill Alpha T21iD Vertical Machine Center

Show in original language

This FANUC Robodrill Alpha T21iD Vertical Machine Center was made in the year 2004. It is equipped with a Fanuc 16iMB control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: FANUC
year: 2004
MODEL: Robodrill Alpha T21iD
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC Robodrill Alpha T21iD

General Data

Measurements width: 1570 mm
Measurements depth: 2040 mm
Measurements height: 2240 mm
Machine weight: 2100 kg

Control Unit

Model: 16iMB
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 5,5 kw
Number of axis: 3

Movement

X-AXIS Movement: 700 mm
X-AXIS Rapid traverse: 54 M/Min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 54 M/Min
Z-AXIS Movement: 330 mm
Z-AXIS Rapid traverse: 54 M/Min

Table

Outer length: 650 mm
Outer width: 400 mm
Table load: 250 kg

Tools

Slots in storage: 21

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cone spindle: bt30

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
