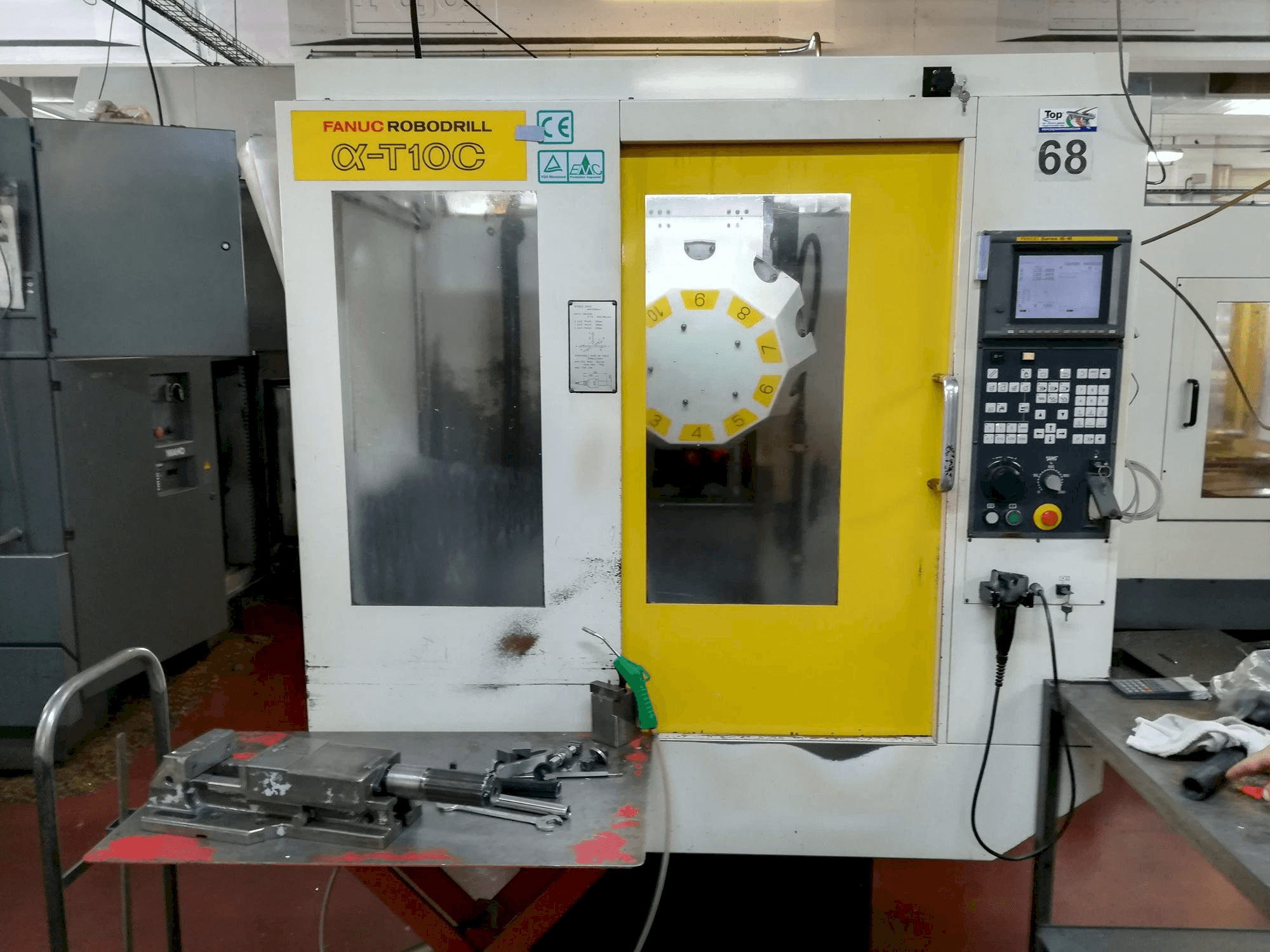

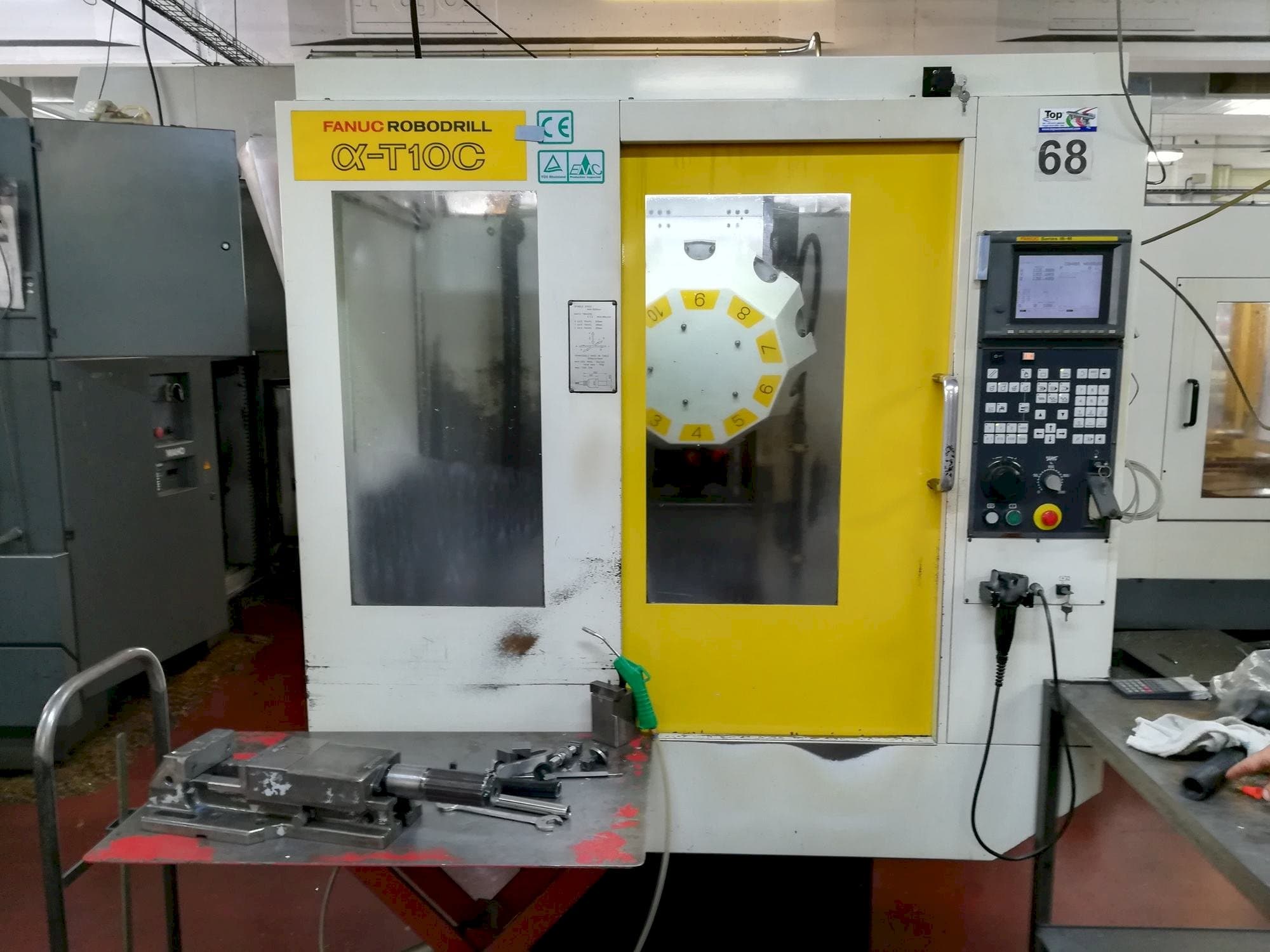

FANUC Robodrill alpha-T 10 C Horizontal Machining Center

Show in original language

This FANUC Robodrill alpha-T 10 C Horizontal Machining Center was manufactured in 1997 in Japan. It has an overall working time of 15714 production hours. It is equipped with a FANUC Series 16-MC control unit. This machine works with a spindle speed up to 8000 rpm.

Overview

brand: FANUC
year: 1997
MODEL: Robodrill alpha-T 10 C
production hours: 15714
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC Robodrill alpha-T 10 C

General Data

Measurements width: 1560 mm
Measurements depth: 1945 mm
Measurements height: 2218 mm
Machine weight: 1700 kg

Control Unit

Model: Series 16-MC
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 380 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece weight: 200 kg

Table

Outer length: 650 mm
Outer width: 380 mm

Media

Power consumption: 9 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
