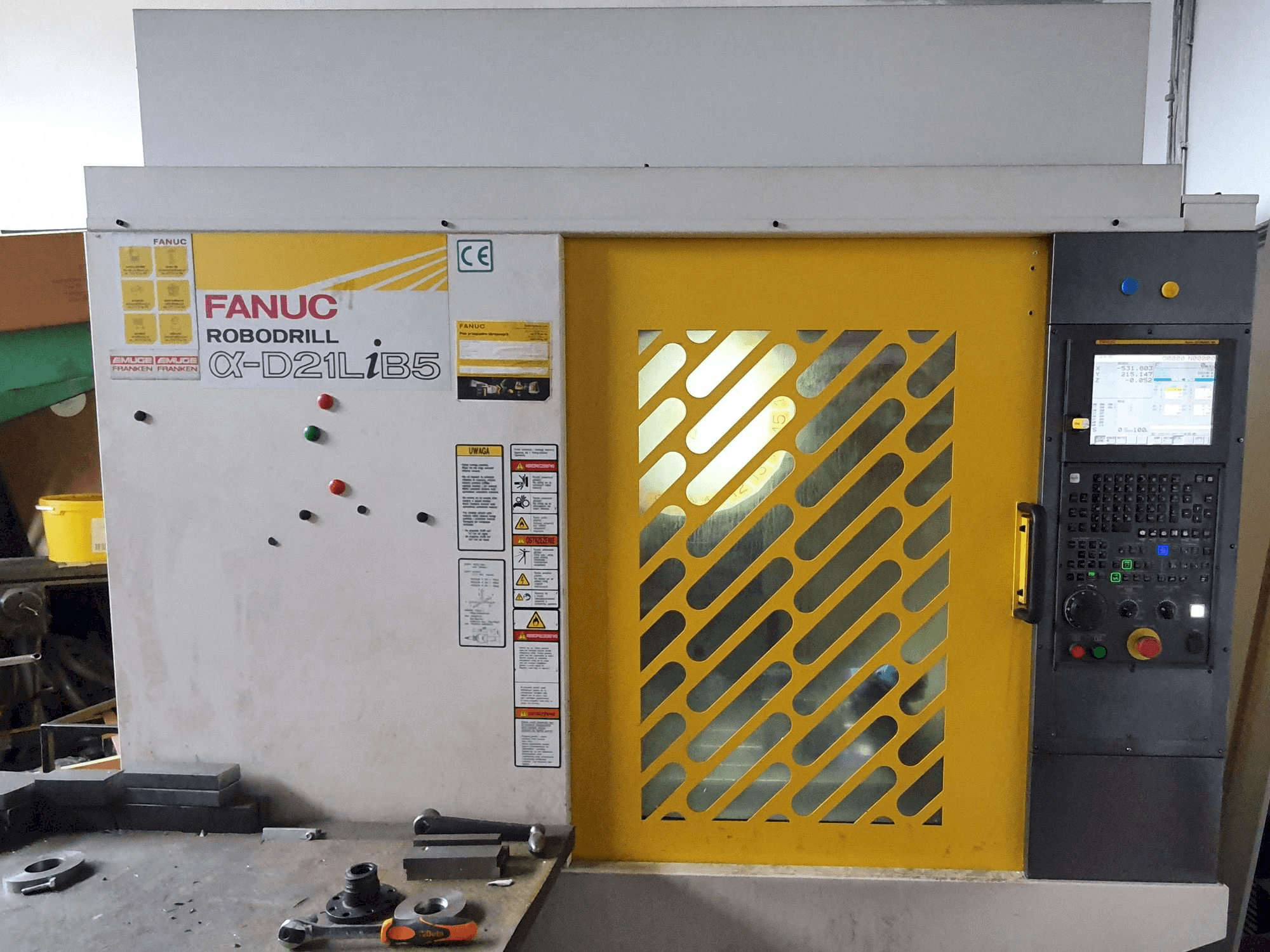

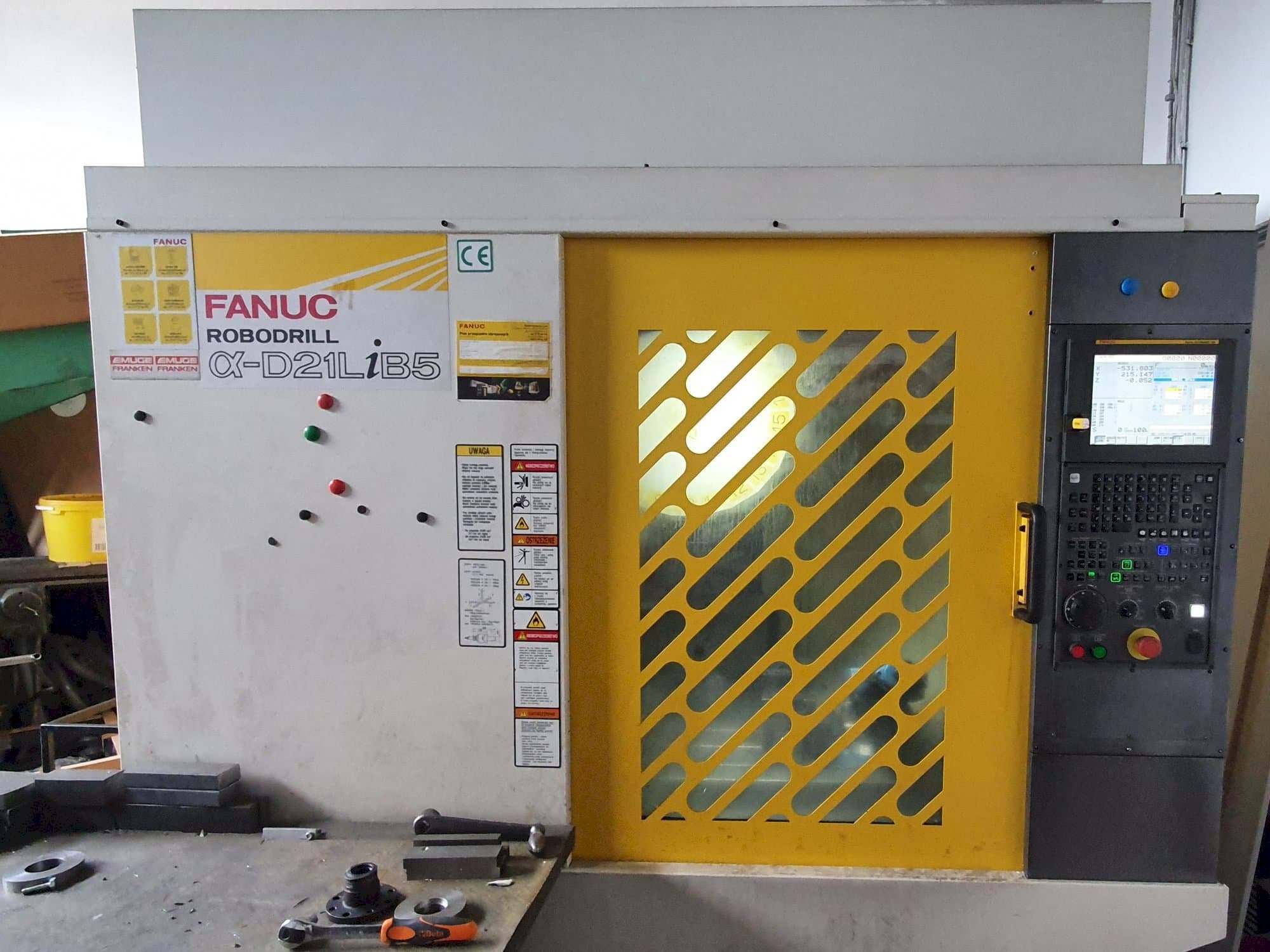

FANUC ROBODRILL Alpha-D21LiB5 Vertical Machining Center

Show in original language

This FANUC ROBODRILL Alpha-D21LiB5 Vertical Machining Center was manufactured in the year 2017 in Japan. This 3 axis machine has been working for 2232 hours. It operated through a FANUC 31i-MODEL B5 control unit. It incorporates a spindle speed up to 10000 rpm and a table size of 850 x 410 mm. It includes some tooling with holders, 1 vice and full documentation available. Machine in very good condition ready for tests.

Overview

brand: FANUC
year: 2017
MODEL: ROBODRILL Alpha-D21LiB5
production hours: 2232
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC ROBODRILL Alpha-D21LiB5

General Data

Measurements width: 2165 mm
Measurements depth: 1900 mm
Measurements height: 2082 mm
Machine weight: 2300 KG

Control Unit

Model: 31i-MODEL B5
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Tool taper: BBT30
Number of axis: 3

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Table

Outer length: 850 mm
Outer width: 410 mm
Table load: 300 KG

Tools

Max weight: 3 KG
Max tool diameter: 80 mm
Max tool length: 250 mm

Media

Main electronic connection: 220 V / 50-60 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of tools: 21 pcs
- - Some tooling with holders
- - 1 vice
Qualitative Machine Benefits:
- - Machine in very good condition ready for tests
- - Low number of working hours
- - Full documentation available
- - It was always serviced by fanuc poland

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
