FANUC - Robocut Alpha-1iDDE-EDM-FAN-2008-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- FANUC Robocut Alpha-1iD Erosion machine

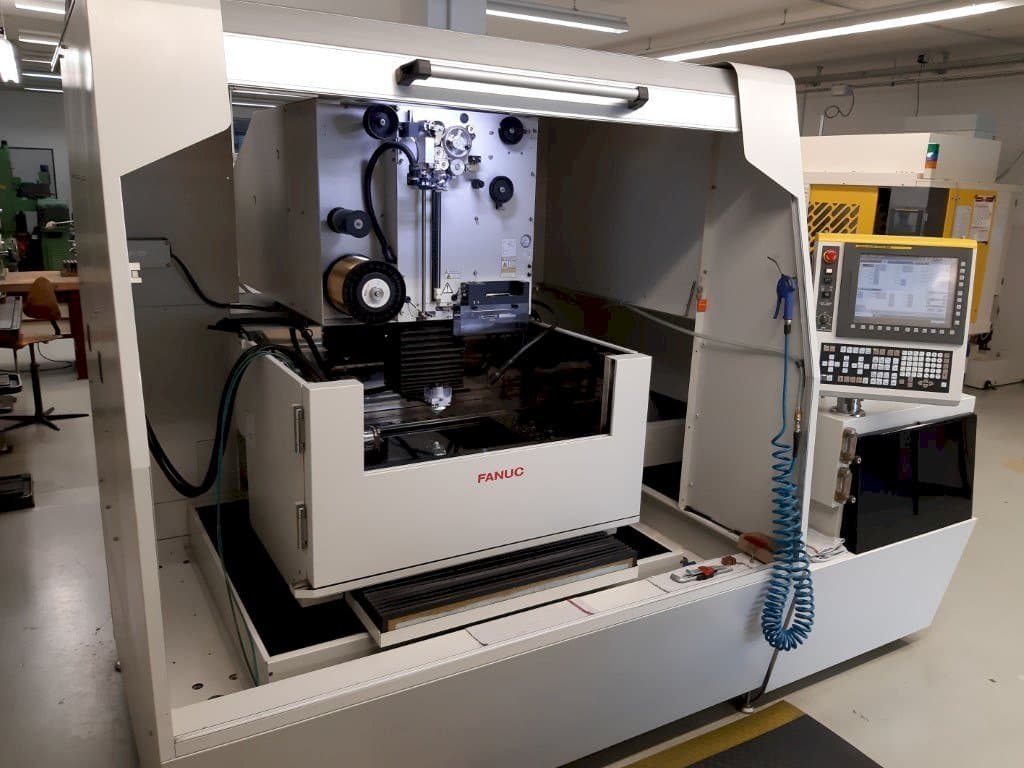

This FANUC Robocut Alpha-1iD Erosion machine was made in 2008 and has 22500 hours. It has a rotary axis and the 4th axis is included.
Overview
- brand: FANUC
- year: 2008
- MODEL: Robocut Alpha-1iD
- production hours: 22500
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
- availability: Sold
Technical Information - FANUC Robocut Alpha-1iD
Movement
- X-AXIS Movement: 600 mm
- X-AXIS Rapid traverse: 900 mm/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Rapid traverse: 900 mm/min
- Z-AXIS Movement: 310 mm
- Z-AXIS Rapid traverse: 900 mm/min
- V-Axis Movement: 200 mm
- V-Axis Rapid traverse: 450 mm/min
- U-Axis Movement: 200 mm
- U-Axis Rapid traverse: 450 mm/min
Workpiece
- Workpiece weight: 1000 kg
Additional Information
- Technical Machine Benefits:
- - 4th axis included
- - Chuck not included
- - Has rotary axis
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
