➤ Used FANUC Robocut Alpha 1C For Sale | gindumac.com

Show in original language

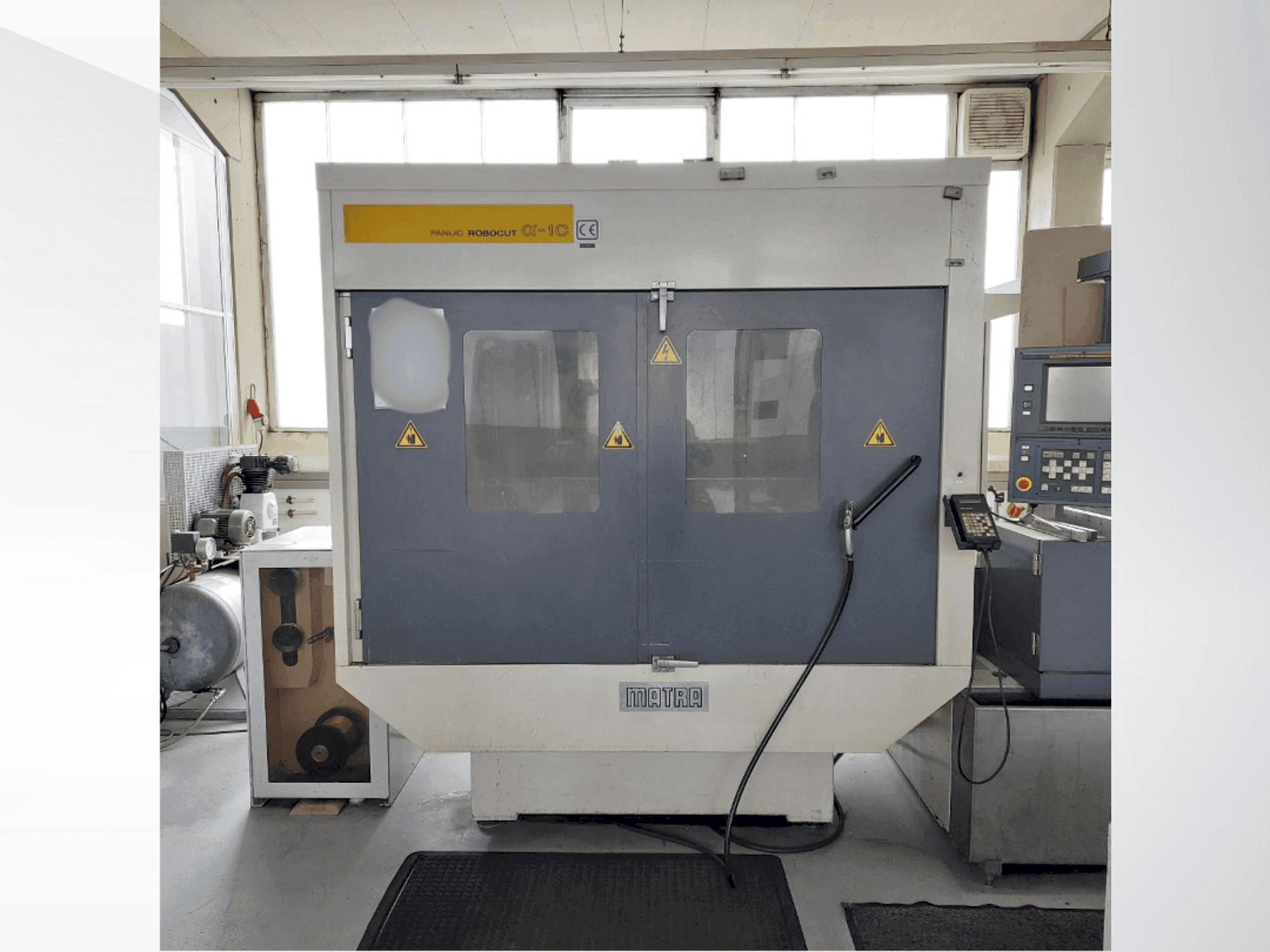

This 5-axis FANUC Robocut Alpha 1C erosion machine was manufactured in 1997. It features a coordinate travel of 520 x 370 mm on the X and Y axes, and a Z-axis adjustment of 300 mm. The machine can handle a maximum workpiece weight of 650 kg and offers a rapid traverse of 900 mm/min. Ideal for precision erosion tasks, the FANUC Robocut Alpha 1C machine we have for sale. Contact us for further details regarding this erosion machine.

Overview

brand: FANUC
year: 1997
MODEL: Robocut Alpha 1C
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Immediately
control unit brand: FANUC

Technical Information - FANUC Robocut Alpha 1C

General Data

Measurements width: 2610 MM
Measurements depth: 3270 MM
Measurements height: 2240 MM
Machine weight: 2600 KG

Control Unit

Model: System 16-WB
Brand: FANUC

Main drive

Max taper angle: ± 30 degrees/80 mm (option ± 45 degrees/40 mm)
Number of axis: 5

Movement

X-AXIS Movement: 520 mm
Y-AXIS Movement: 370 mm
Z-AXIS Movement: 300 mm (275 mm in water bath)
U-Axis Movement: ± 60 mm
W-Axis Movement: ± 60 mm

Workpiece

Workpiece x: 790 mm
Workpiece y: 730 mm
Workpiece z: 275 mm
Workpiece weight: 650 kg (with coaxial spindle), 450 kg (with water bath)

Table

Outer length: 750 mm
Outer width: 590 mm

Additional equipment

- Bedra wire unwinding device BAS 45/100E (to the left of the machine), capable of handling wire spools weighing up to 45 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Smallest step size of the drives: 0. 0001 mm
- - Capable of handling large workpieces with a maximum weight of 650 kg (with coaxial spindle)
- - Max. Rapid traverse: 900 mm/min
Qualitative Machine Benefits:
- - Advanced control system with fanuc system 16-wb
- - Versatile wire edm capabilities with adjustable wire diameter and tension

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
