FANUC - ARC Mate 100iCHU-ROB-FAN-2012-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment

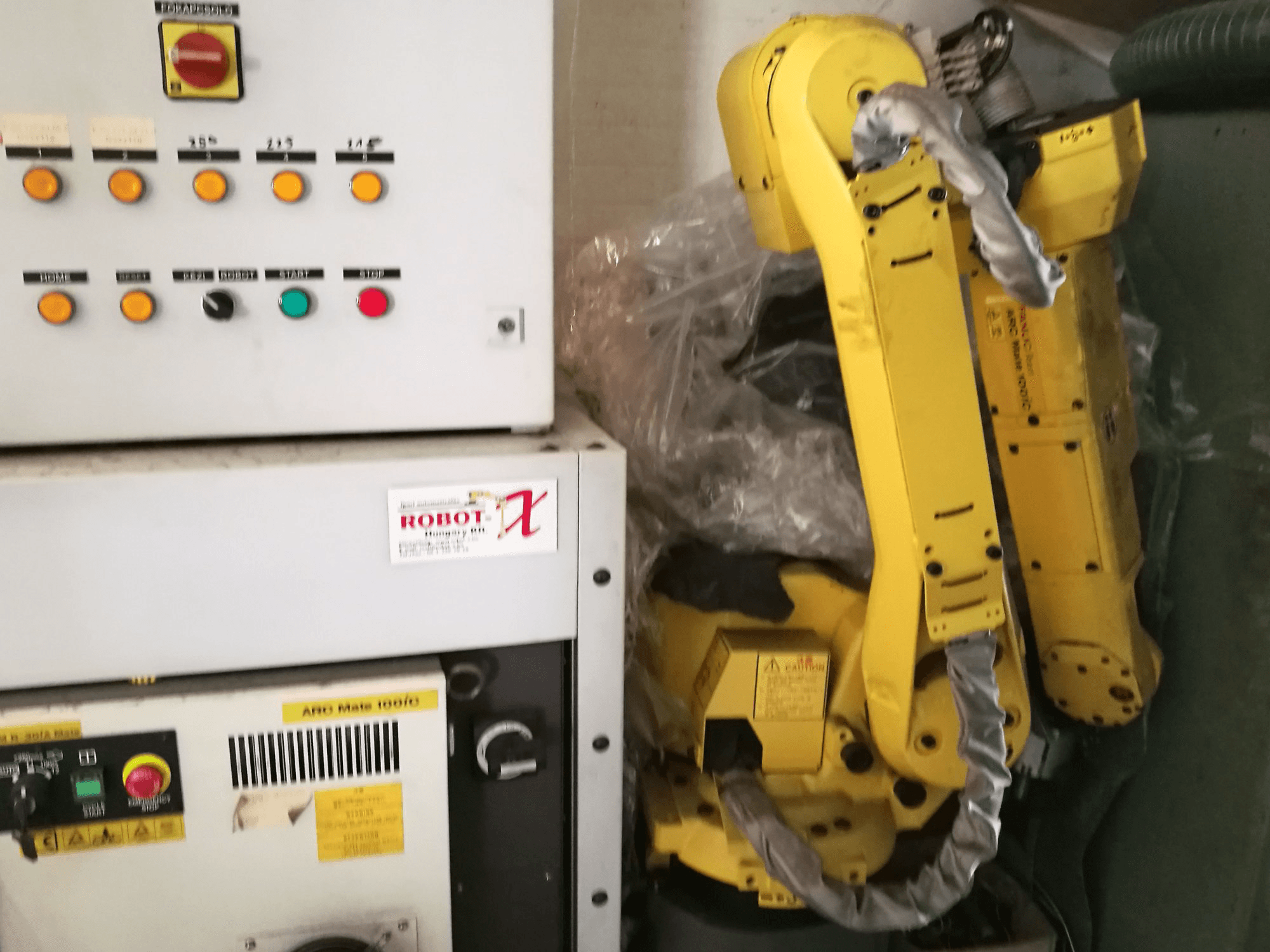

FANUC ARC Mate 100iC Robot Machine

Show in original language

This FANUC ARC Mate 100iC Robot which was made in Japan in the year 2012, shows a working history of 12000 production hours. Operated through a FANUC SYSTEM R-30iA Mate Control unit, this robot offers a maximum payload of 12 kg within 1420 mm of reach. A conveyor with loader tables and some D60 pneumatic chucks are included.

Overview

brand: FANUC
year: 2012
MODEL: ARC Mate 100iC
production hours: 12000
application type: Robotics
Location: Hungary
machine type: Robot Arm
availability: Sold
control unit brand: FANUC

Technical Information - FANUC ARC Mate 100iC

General Data

Measurements width: 600 mm
Measurements depth: 600 mm
Measurements height: 1700 mm
Machine weight: 130 kg

Control Unit

Model: SYSTEM R-30iA Mate
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of axis: 8
Range payload: 12 kg
Max payload: 12 kg
Max reach: 1420 mm

Movement

AXIS 1 Movement: 320 º °
AXIS 2 Movement: 320 º °
AXIS 3 Movement: 320 º °
AXIS 4 Movement: 320 º °
AXIS 5 Movement: 320 º °
AXIS 6 Movement: 320 º °

Media

Main electronic connection: 3x400V
Power consumption: 30
Ambient temperature: 0-45 ºC °C

Additional equipment

- Parts conveyor with loader tables
- D60 pneumatic chucks

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
