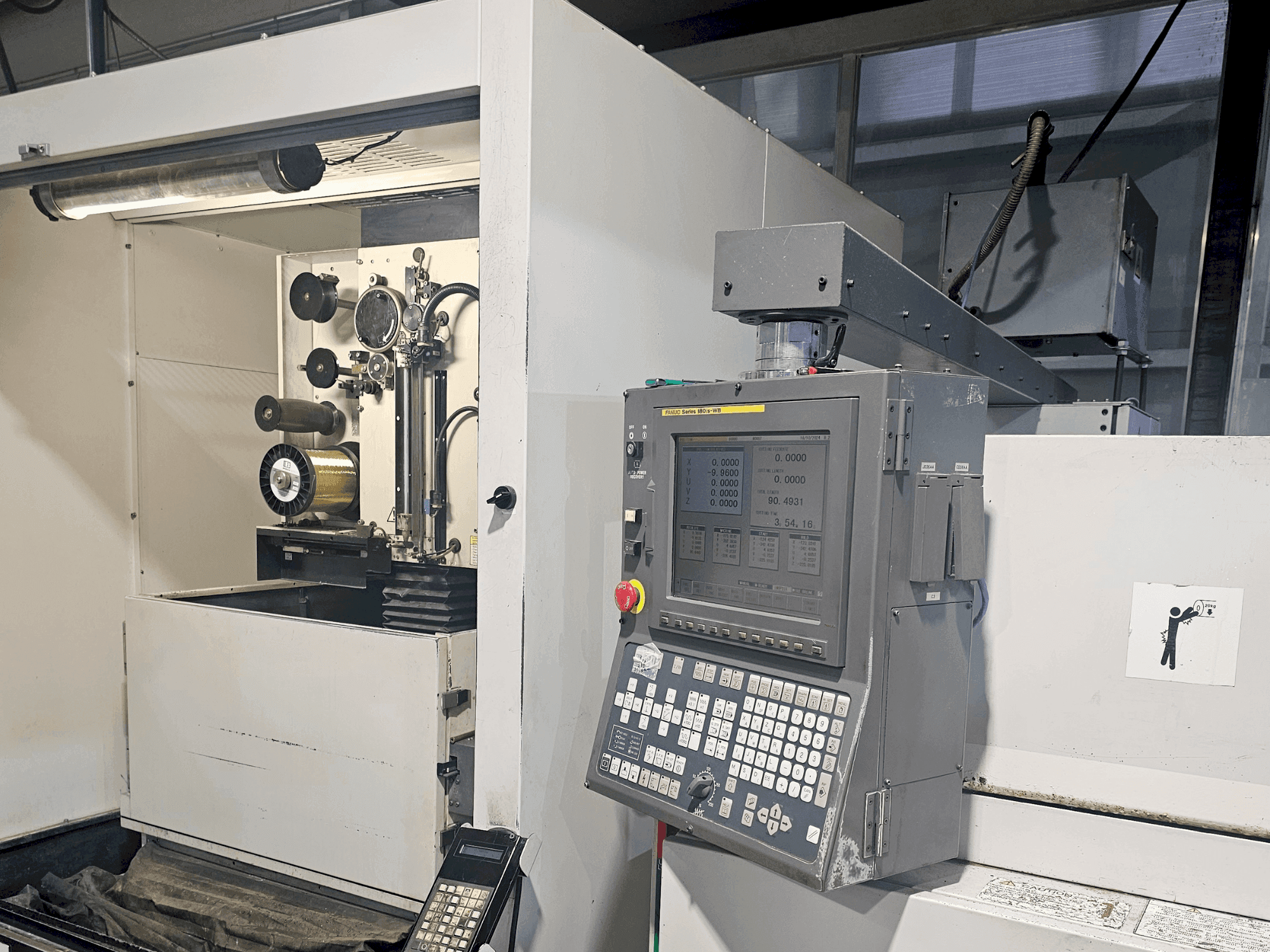

Front view of FANUC alpha 1iC machine
Front view of FANUC alpha 1iC machine

FANUC - alpha 1iCSI-EDM-FAN-2006-00001

Rs. 2,665,450
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis FANUC alpha 1iC wire EDM machine was manufactured in 2006. It features a working area of 820 × 730 × 300 mm, a maximum taper angle of 11°, and can handle a workpiece mass up to 1,000 kg. Ideal for precision cutting, it supports wire diameters from 0.1 to 0.3 mm. If you are looking to get high-quality EDM capabilities, consider the FANUC alpha 1iC machine we have for sale. Contact us for more information.

Overview

  • brand: FANUC
  • year: 2006
  • MODEL: alpha 1iC
  • application type: EDM
  • Location: Slovenia
  • machine type: Wire EDM Machine
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - FANUC alpha 1iC

General Data

  • Measurements width: 130 mm
  • Measurements depth: 1000 mm
  • Measurements height: 300 mm
  • Machine weight: 3000 kg

Control Unit

  • Brand: FANUC
  • Model: series 180is-VB

Main drive

  • Number of axis: 5

Movement

  • Z-AXIS Movement: 310 - 410 mm
  • U/V Movement: 180 mm

Workpiece

  • Workpiece weight: 1000 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum taper angle: 11°
      • - Workpiece height: standard: 180 mm; option: 255 mm
      • - Table travel: 550 × 370 mm (optional)
      • - Wire diameter: standard: 0. 1–0. 3 mm; option: 0. 05–0. 3 mm
      • - Maximum wire mass: 76 kg
      • - Maximum cutting speed: 330 mm/min (using 0. 3 mm brass wire with ac cutting)
      • - Working area: 820 × 730 × 300 mm

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
