FAMUP MCX 450 Vertical Machining Center

Show in original language

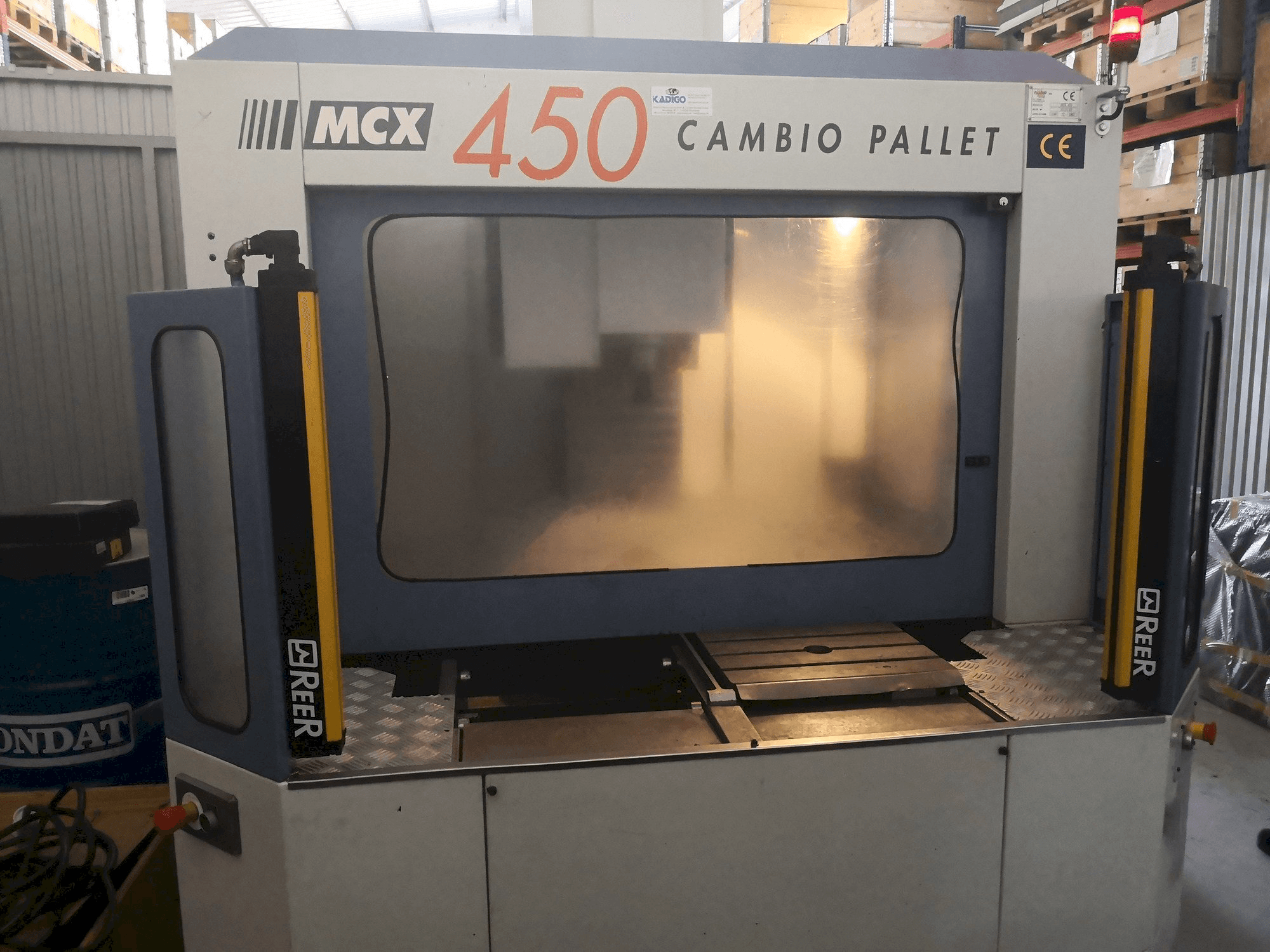

This FAMUP MCX 450 Vertical Machining Center was manufactured in Spain in the year 1999. It is equipped with a Fanuc Series O-M control unit. This machine incorporates a table outer length of 400 mm, and outer width of 300 mm.

Overview

brand: FAMUP
year: 1999
MODEL: MCX 450
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FAMUP MCX 450

General Data

Measurements width: 2100 mm
Measurements depth: 2375 mm
Measurements height: 1800 mm
Machine weight: 2800 kg

Control Unit

Model: Series O-M
Brand: FANUC

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece weight: 450 kg

Table

Outer length: 400 mm
Outer width: 300 mm

Media

Main electronic connection: 400 V
Power consumption: 15 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
