➤ Used FAMUP MCL 120 Evolution For Sale | gindumac.com

Show in original language

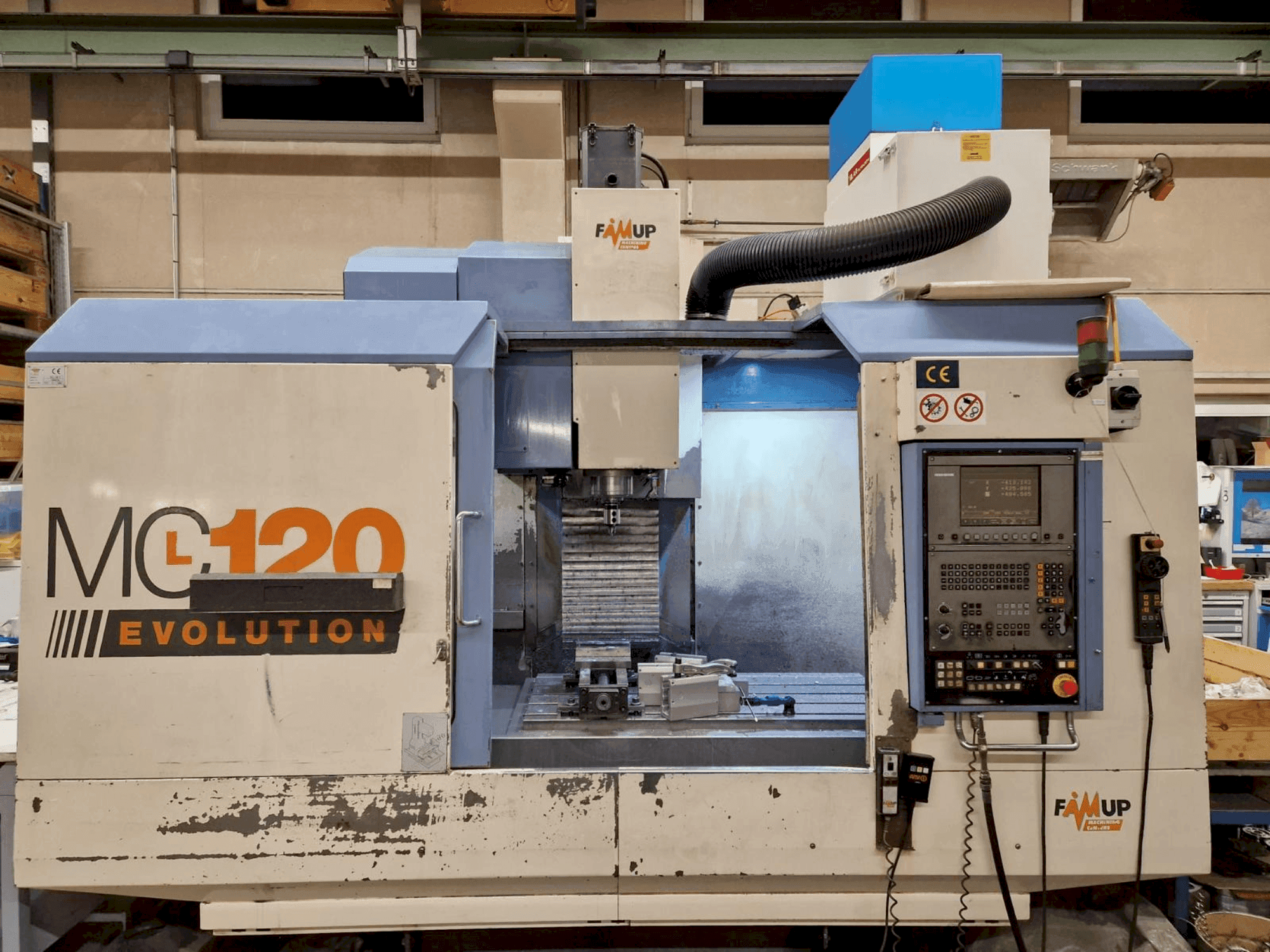

This 3-axis FAMUP MCL 120 Evolution vertical machining centre was manufactured in 2002. It features a large work range with X, Y, Z axes at 1200 mm, 600 mm, and 640 mm respectively, and a rapid traverse rate up to 30,000 mm/min. The spindle supports speeds from 50 to 10,000 rpm, and the tool magazine holds 24 slots. If you are looking to get high-quality milling capabilities, consider the FAMUP MCL 120 Evolution machine we have for sale. Contact us for more information.

Overview

brand: FAMUP
year: 2002
MODEL: MCL 120 Evolution
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - FAMUP MCL 120 Evolution

General Data

Measurements width: 2100 mm
Measurements depth: 3350 mm
Measurements height: 3160 mm
Machine weight: 6500 kg

Control Unit

Brand: HEIDENHAIN

Movement

X-AXIS Movement: 1200 MM
Y-AXIS Movement: 600 MM
Z-AXIS Movement: 640 MM

Table

Outer length: 1300 mm
Outer width: 620 mm
Table load: 800 kg

Additional equipment

- Machine comes without suction unit (blue white thing on top of machine, see WA0104), without tools (WA0053) and without clamping system (WA0064)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Sound level: 71. 5 db(a)
- - Minimum compressed air pressure: 6 bar
- - Foundation: unreinforced concrete
- - Working feed (x, y, z): 10000 mm/min / rapid traverse (x, y, z): 30000 mm/min / working force (s1, x, y): 4800 n / working force (s1, z): 7200 n
- - Positional accuracy in one direction (x, y, z): ±5 µm / repeatability in one direction (x, y, z): ±1. 5 µm / average reversal error: 3 µm
- - Number of slots: 5 / slot width: 18 mm / slot spacing: 125 mm
- - Magazine slots: 24 / tool selection: double-sided / maximum tool diameter: 75 mm / maximum tool length: 280 mm / maximum tool weight: 6 kg / tool change time: 1. 7 seconds / tool change time: 1. 7 seconds
- - Coolant tank capacity: 350 dm³ / pump type: centrifugal pump / max delivery rate: 4 dm³/min / max pressure: 25 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
