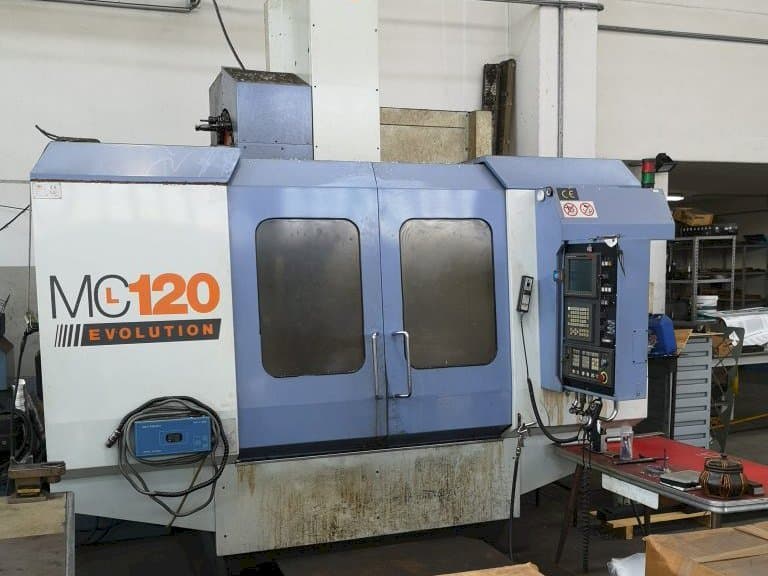

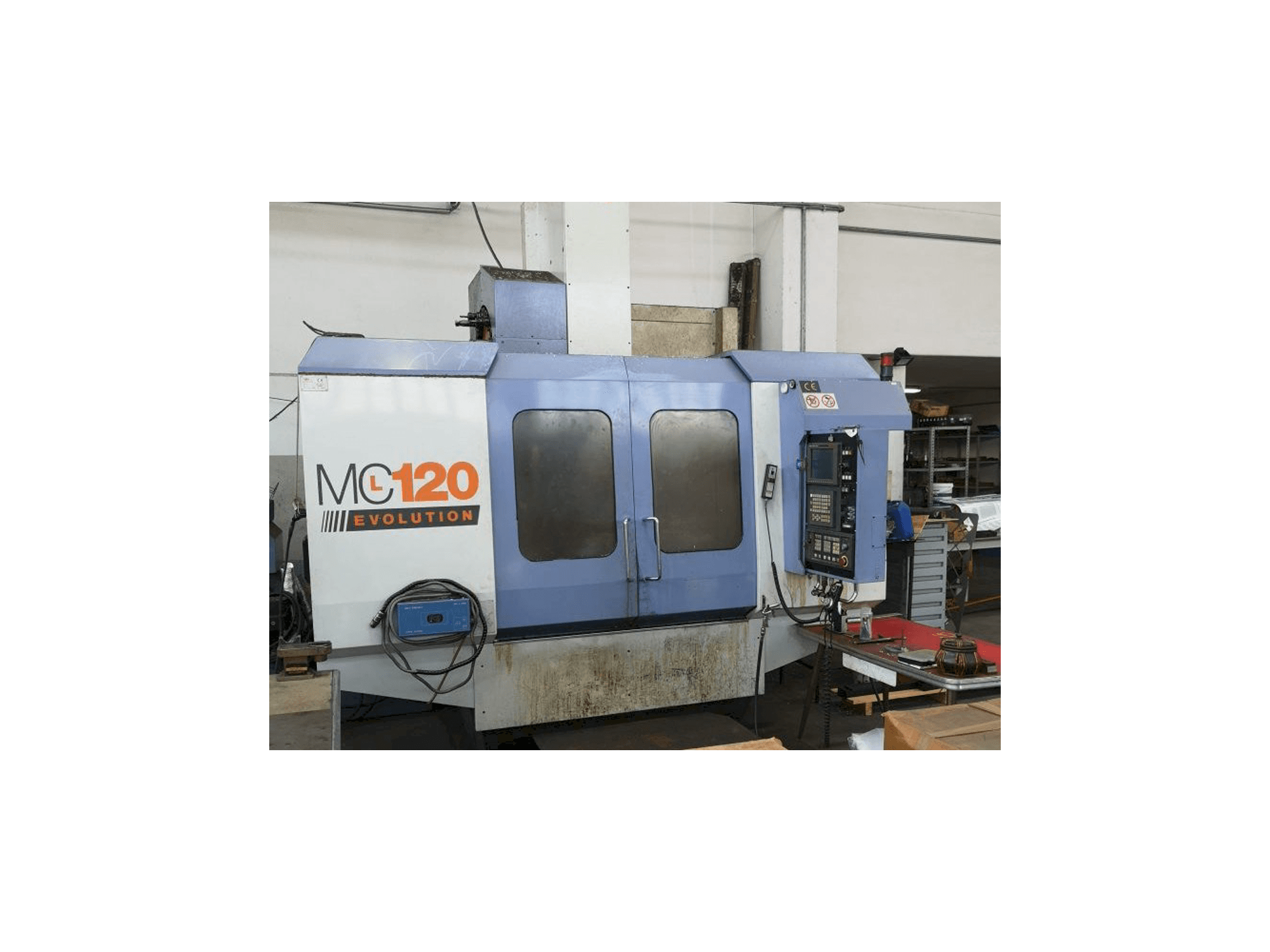

FAMUP MCL 120 E Vertical Machining Center

Show in original language

This FAMUP MCL 120 E Vertical Machining Center was manufactured in the year 2002. Operated through a FANUC 18i MA control unit. This machine can work with a spindle speed up to 10000 rpm.

Overview

brand: FAMUP
year: 2002
MODEL: MCL 120 E
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FAMUP MCL 120 E

General Data

Measurements width: 4290 mm
Measurements depth: 3810 mm
Measurements height: 3300 mm

Control Unit

Model: 18i MA
Brand: FANUC

Main drive

Spindle speed range: 50 - 10000 1/MIN
Spindle motor power: 40 kW

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 1380 mm
Outer width: 620 mm

Tools

Number of stations: 24
Max weight: 6 kg
Max tool diameter: 75 mm
Max tool length: 280 mm
Type of tool holder: ISO 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4 * divider axis
- - Advancements 10000 mm/1 '
- - Rapid 30000 mm/1 '
- - Flow rate kg 800
- - Two-way tool selection
- - High pressure for refrigeration

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
