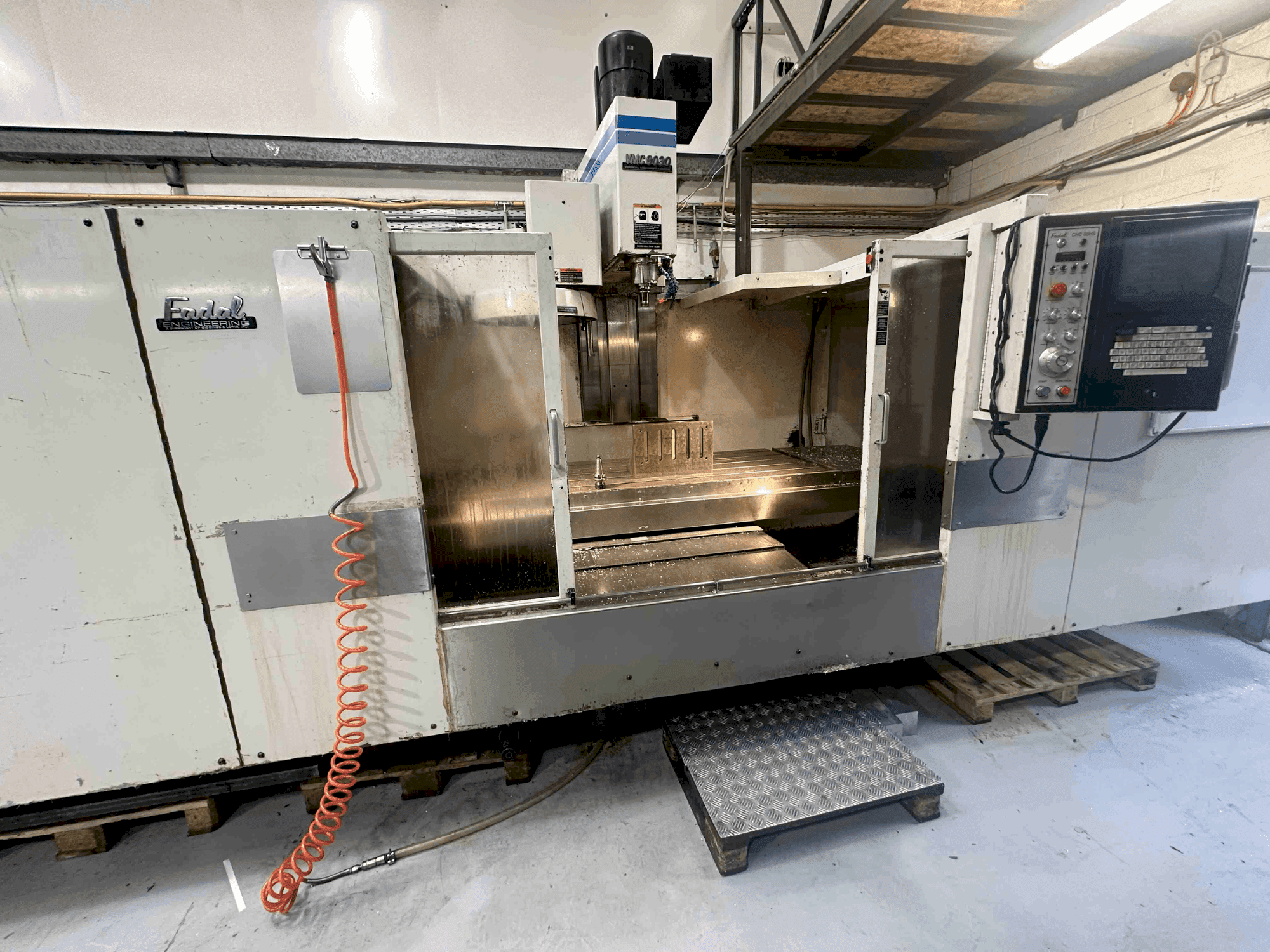

➤ Used FADAL VMC8030HT - 1997 - Vertical centre For sale

Show in original language

Equipped with the Fadal CNC 88HS control unit, this machine offers robust control with its user-friendly interface. It hosts a single spindle capable of speeds up to 10,000 rpm and generous X, Y, and Z travel distances of 2030 mm, 760 mm, and 760 mm respectively. The large table size of 2100 x 760 mm facilitates ample working space, while additional features like internal cooling and a chip conveyor augment its efficiency. 3-Axis vertical machining centres such as the FADAL VMC8030HT, manufactured in 1997, are designed to handle a range of machining tasks. Contact us for further details.

Overview

brand: FADAL
year: 1997
MODEL: VMC8030HT
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold

Technical Information - FADAL VMC8030HT

General Data

Measurements width: 3000 mm
Measurements depth: 5540 mm
Measurements height: 2250 mm
Machine weight: 4000 kg

Control Unit

Model: CNC 88HS

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 2030 mm
Y-AXIS Movement: 760 mm
Z-AXIS Movement: 760 mm

Table

Outer length: 2100 mm
Outer width: 760 mm

Tools

Slots in storage: 20

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High spindle speed of 10,000 rpm facilitates fast and precise machining operations.
- - Large table dimensions (2100 x 760 mm) offer ample working area for various milling tasks.
Qualitative Machine Benefits:
- - Robust build with a machine weight of 4000 kg ensures stability during high-speed operations.
- - The advanced control unit (fadal cnc 88hs) provides precise control and ease of operation with its main language in english.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
