➤ Used FADAL VMC 4020HT - Vertical Machining Center

Show in original language

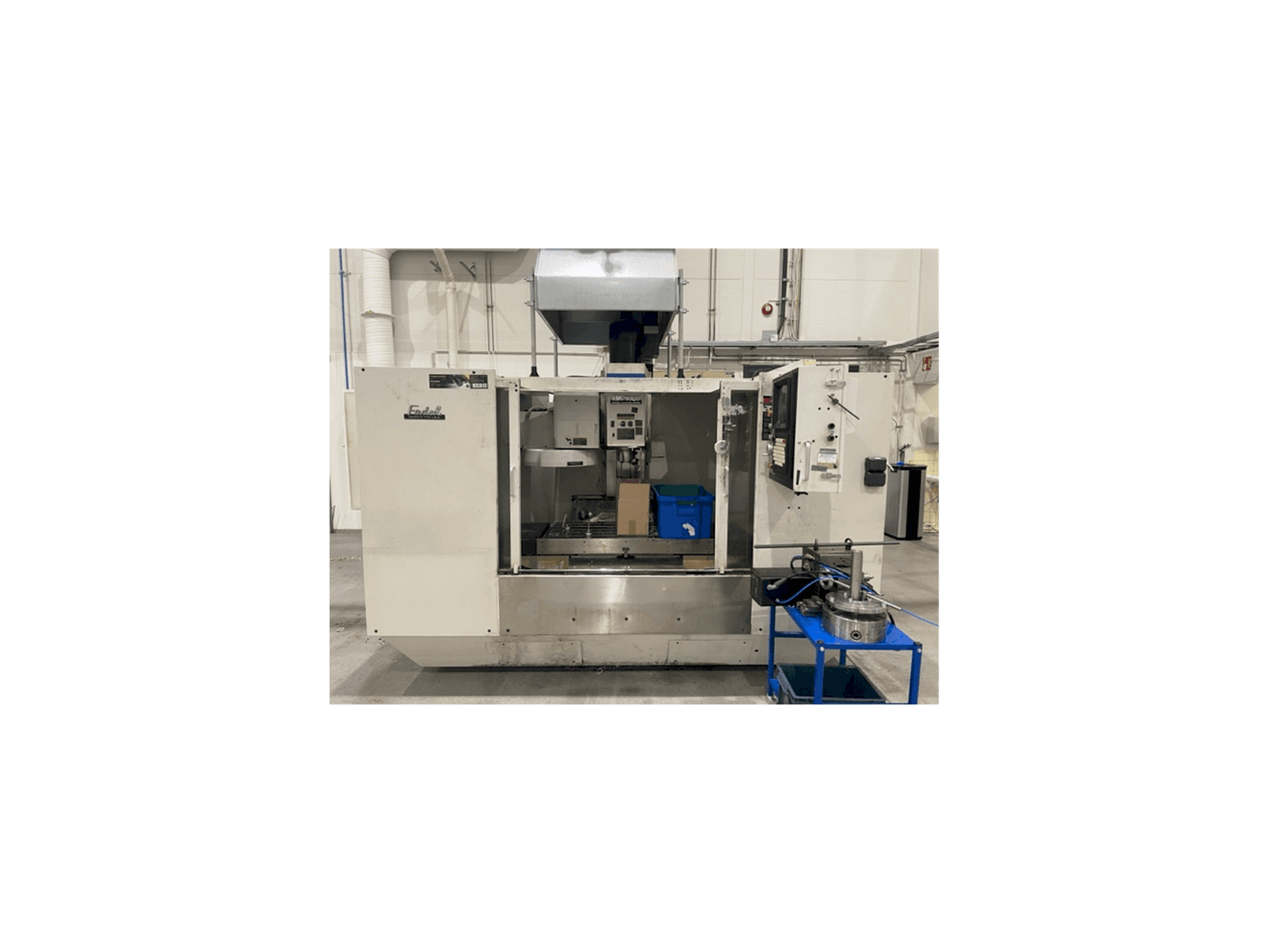

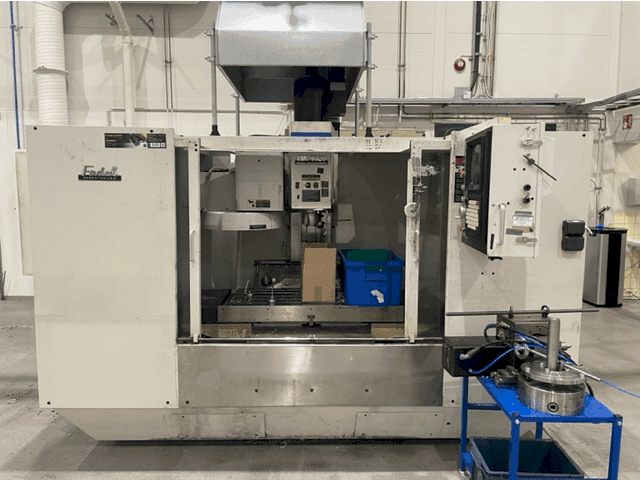

This FADAL VMC 4020HT Vertical Machining center was built in the United States in 1995. It is equipped with a control unit of the same brand. This machine operates with a spindle speed up to 10000 rpm. It works with a table size of 1220 x 510 mm. Machine in good condition

Overview

brand: FADAL
year: 1995
MODEL: VMC 4020HT
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold

Technical Information - FADAL VMC 4020HT

General Data

Measurements width: 2950 mm
Measurements depth: 2209 mm
Measurements height: 2795 mmm
Machine weight: 4760 kg

Control Unit

Model: CNC 88HS

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 1015 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1220 mm
Outer width: 510 mm

Tools

Slots in storage: 21

Media

Main electronic connection: 400 V
Power consumption: 10 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
