➤ Used FADAL VMC 15XT For Sale | gindumac.com

Show in original language

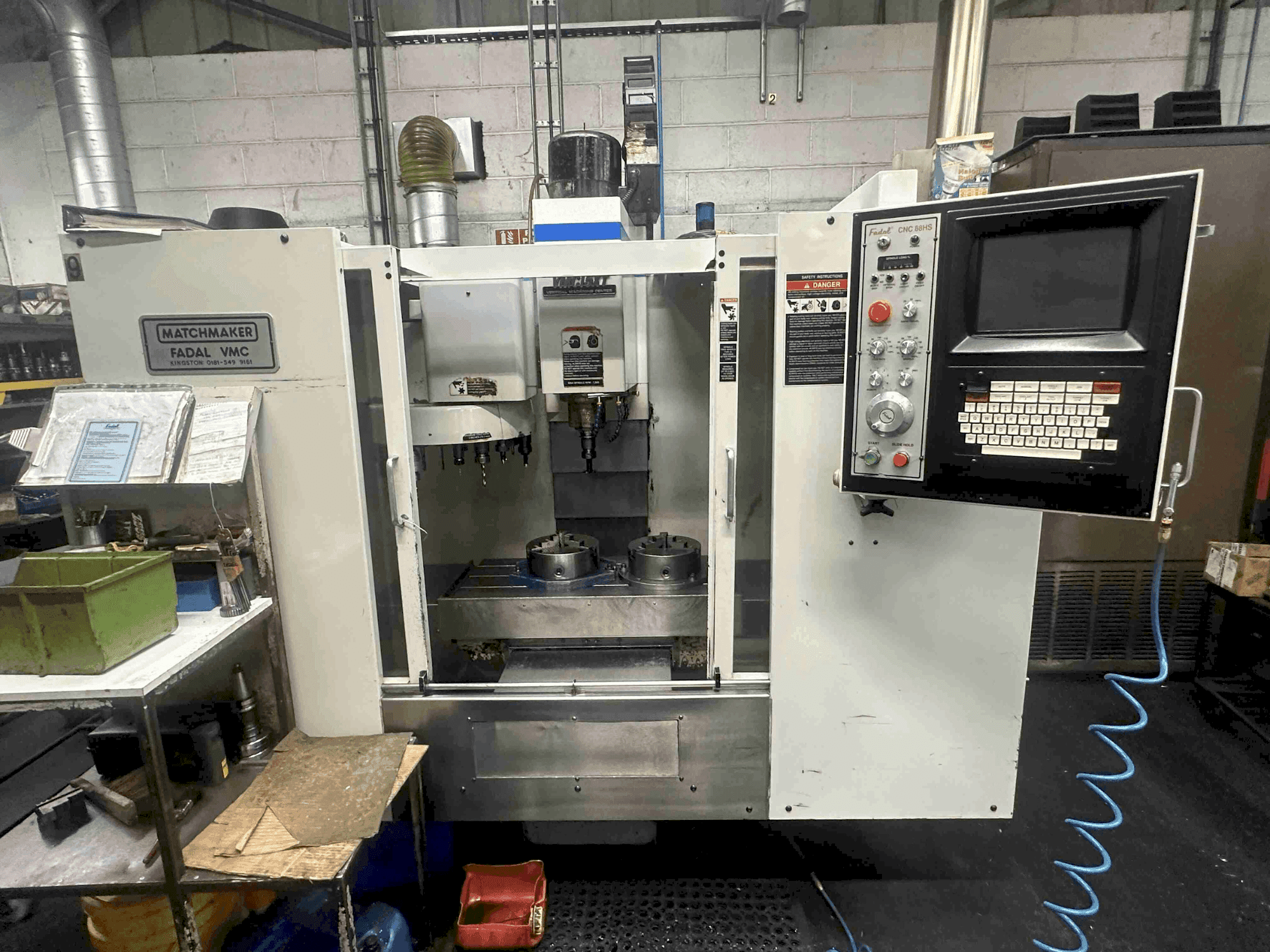

This 3-axis Fadal VMC 15XT was manufactured in 1996. A robust vertical machining center featuring a Fadal CNC 88HS control, it offers a table size of 965 x 406mm and a maximum table load of 680kg. It includes a 21-station tool changer, a spindle motor of 15HP, and a maximum spindle speed of 7,500rpm. Ideal for milling applications, the Fadal VMC 15XT machine we have for sale is in good condition. Contact us for further details regarding this machining center.

Overview

brand: FADAL
year: 1996
MODEL: VMC 15XT
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold

Technical Information - FADAL VMC 15XT

General Data

Measurements width: 2380 MM
Measurements depth: 2380 MM
Measurements height: 2340 MM
Machine weight: 2720 KG

Control Unit

Model: CNC 88HS

Main drive

Spindle speed range: 7500 1/MIN
Spindle motor power: 15 HP
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 762 MM
Y-AXIS Movement: 406 MM
Z-AXIS Movement: 508 MM

Table

Outer length: 965mm
Outer width: 406mm
Table load: 680kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
