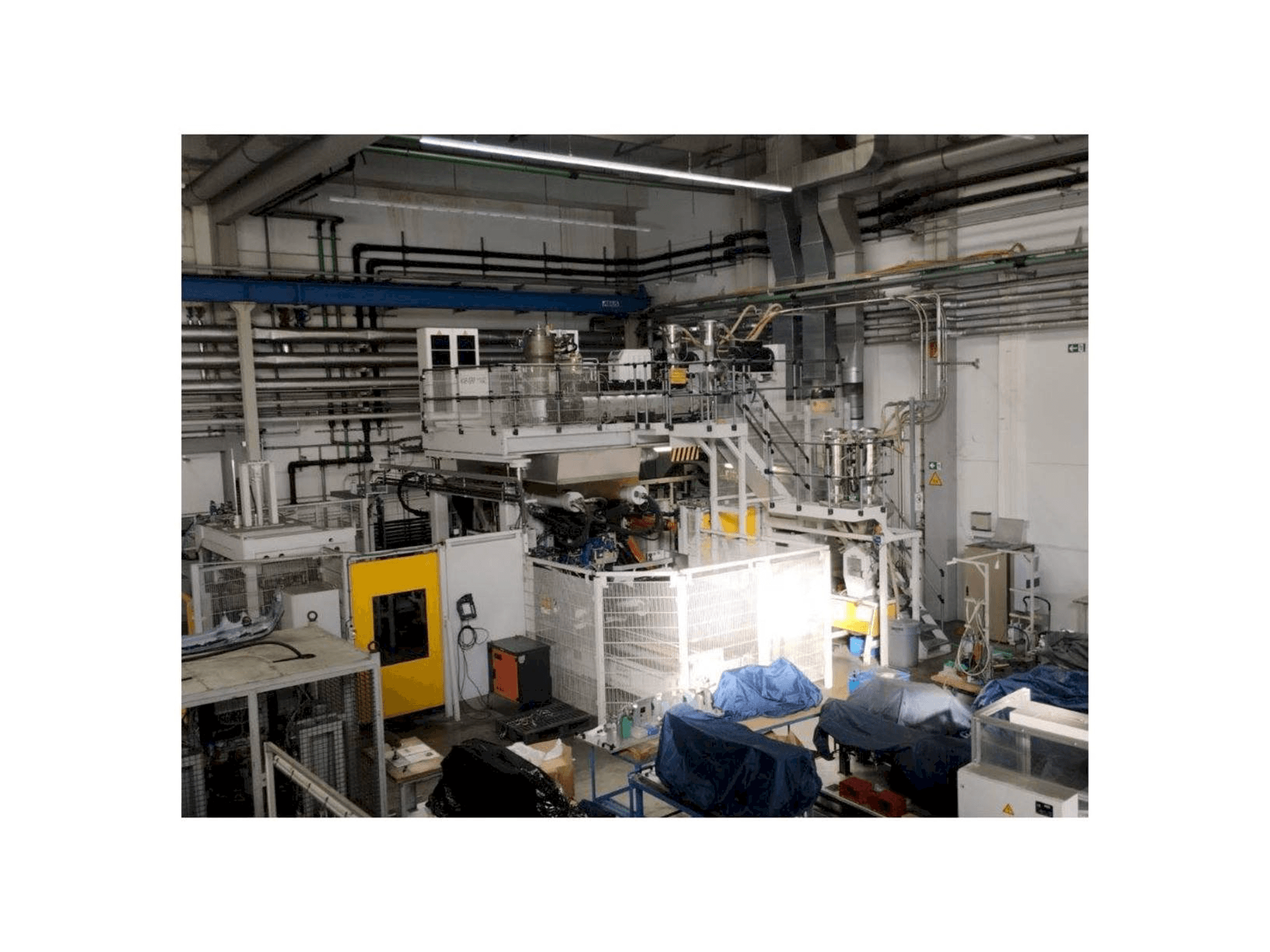

Front view of EXTRAPLAST 140to machine
Front view of EXTRAPLAST 140to machine

EXTRAPLAST - 140toDE-BLO-EXT-2015-00001

Rs. 22,847,900
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This EXTRAPLAST 140to Blow Moulding machine was manufactured in the year 2015. It is equipped with a it-AUTEC Blow Control. The machine has a clamping force of 1400 kN. See tech specs details in attached PDF (German).

Overview

  • brand: EXTRAPLAST
  • year: 2015
  • MODEL: 140to
  • application type: Blow Moulding
  • Location: Germany
  • machine type: Blow Moulding Machine
  • availability: Immediately

Technical Information - EXTRAPLAST 140to

Control Unit

  • Model: Blow Control

Injection Unit

  • Screw diameter: 120 mm

Clamping unit

  • Clamping force: 1400 kN
  • Opening stroke: 1000 mm
  • Max open daylight: 1800 mm
  • Mould height min: 2x 400 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Blow head
      • - Extruder
      • - Nozzles dm
      • - Output: hdpe 690 kg/h, abs 450-500 kg/h
      • - Two control panels special features: 14 liter accumulator head, spiral distributor, internally coated 120-400mm 2x120/25
      • - Designed for blowing pressures up to 30 bar (for optical requirements, suitable for rear spoiler production, among other things) - fully and semi-automatic operation possible (manual removal, insertion of inserts, etc. )
      • - Operation as a single-station system possible
      • - Double station operation with two wds programs possible

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
