Ex-cell-o XHC 241 M/3 Horizontal Machining Center

Show in original language

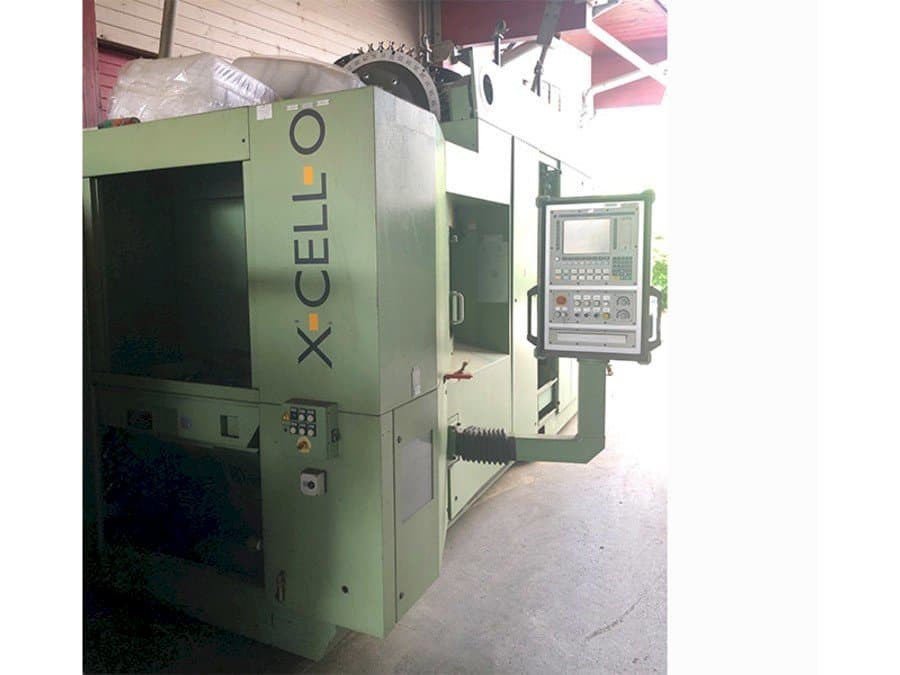

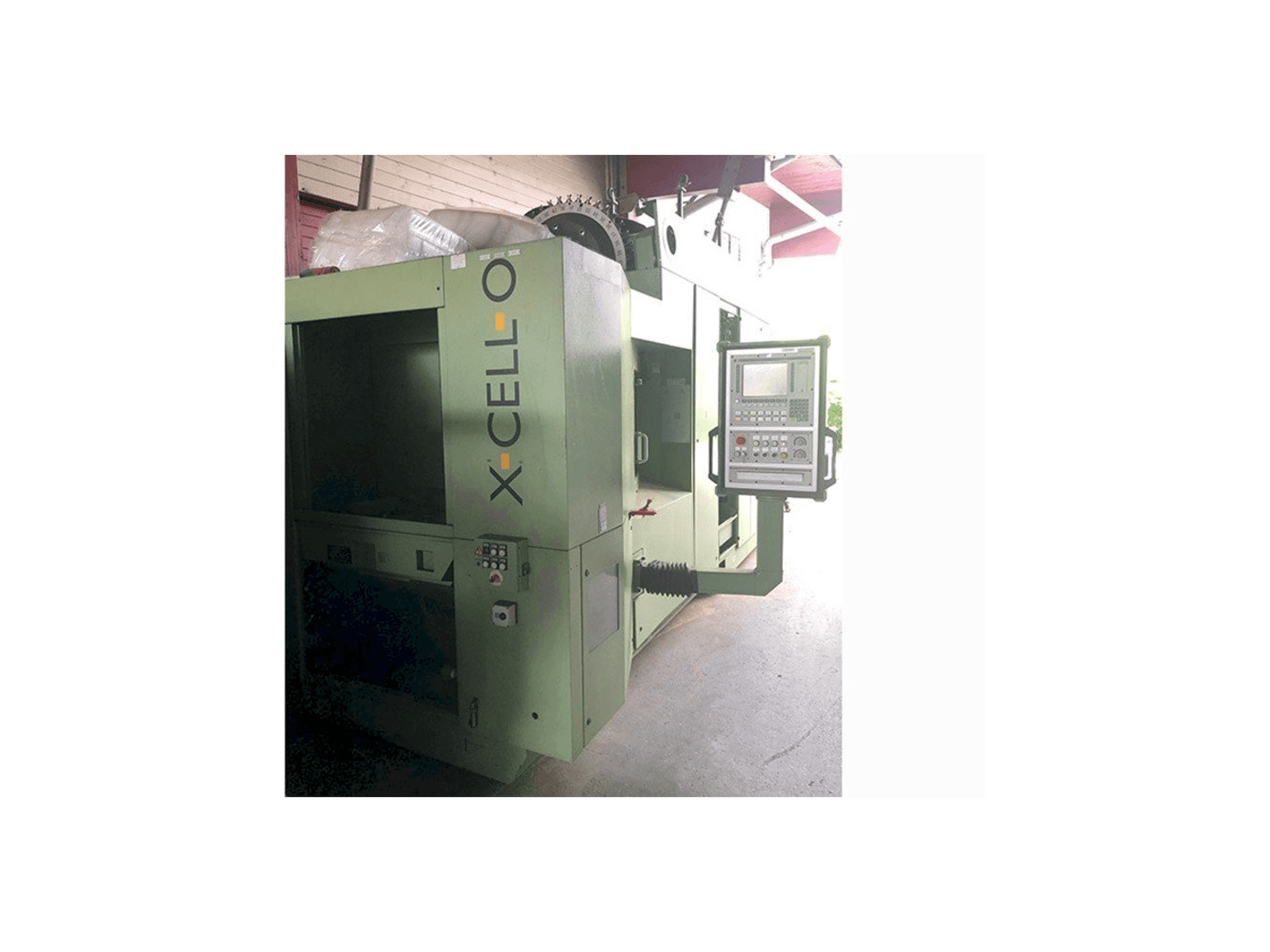

This EXCELLO XHC 241 M/3 Horizontal Machining Center was built in the year 2003. It is operated through a Indramat MTC 200 control unit . This machine perform with a spindle speed up to 16000 rpm.

Overview

brand: EXCELLO
year: 2003
MODEL: XHC 241 M/3
application type: Milling
Location: Slovenia
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - EXCELLO XHC 241 M/3

General Data

Measurements width: 6500 mm
Measurements depth: 1750 mm
Measurements height: 3900 mm
Machine weight: 16000 kg

Control Unit

Model: MTC 200

Main drive

Spindle speed range: 16000 1/MIN
Spindle motor power: 53 kW

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 630 mm
Z-AXIS Movement: 710 mm

Table

Outer length: 500 mm
Outer width: 500 mm
Table load: 400 kg

Tools

Type of tool holder: HSK 63 - E&A DIN 69893

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
