- Eumach VMC 1100 Vertical Machining center

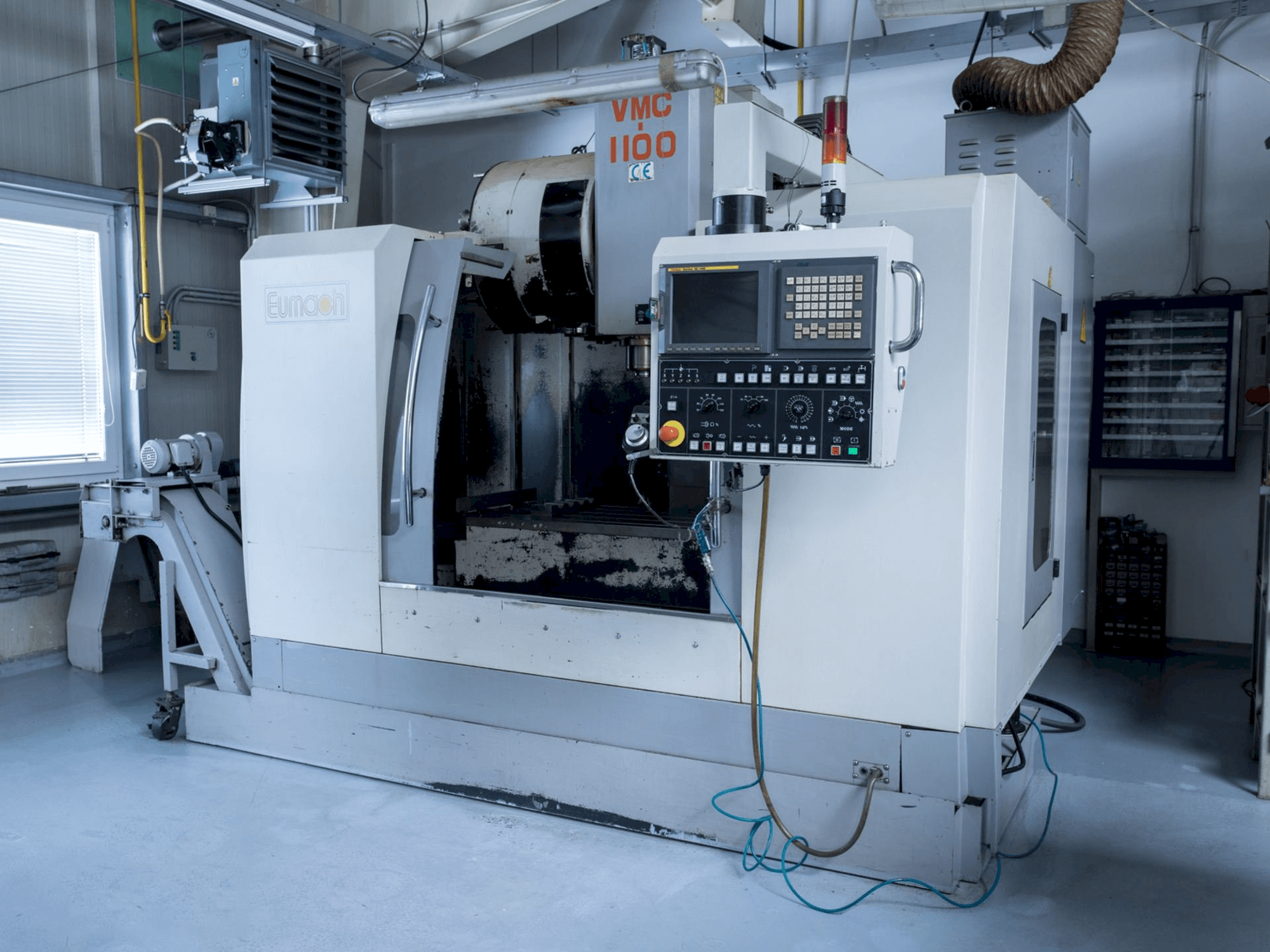

This Eumach VMC 1100 Vertical Machining center was made in Taiwan in the year 2006. It has been power on for 13433 hours of which 10897 are spindle hours. It is equipped with a Fanuc Series 18i-MB control unit. This 4 axis machine has a table of dimensions 1270 x 640 mm. It includes a through and outer spindle coolant by fluid or air. Machine in very good condition.
Overview
- brand: Eumach
- year: 2006
- MODEL: VMC 1100
- production hours: 10897
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - Eumach VMC 1100
General Data
- Machine weight: 6500 KG
Control Unit
- Brand: Fanuc
- Model: Series 18i-MB
Main drive
- Number of spindles: 1
- Number of axis: 4
Movement
- X-AXIS Movement: 1100 mm
- Y-AXIS Movement: 610 mm
- Z-AXIS Movement: 610 mm
Workpiece
- Workpiece weight: 300 KG
Table
- Outer length: 1270 mm
- Outer width: 640 mm
Tools
- Slots in storage: 24
- Type of tool holder: ISO 40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Simultaneous axis operation
- - 4th axis table incl. Tailstock
- - 20 bar high pressure cooling
- - Min. -max. Height under spindle: 102 - 610 mm
- - 3-jaw universal chuck: 250 mm
- - Through spindle coolant by fluid or air
- - Outer spindle coolant by fluid or air
- Qualitative Machine Benefits:
- - Includes machine manual
- - Very good condition
- - Low hours
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
