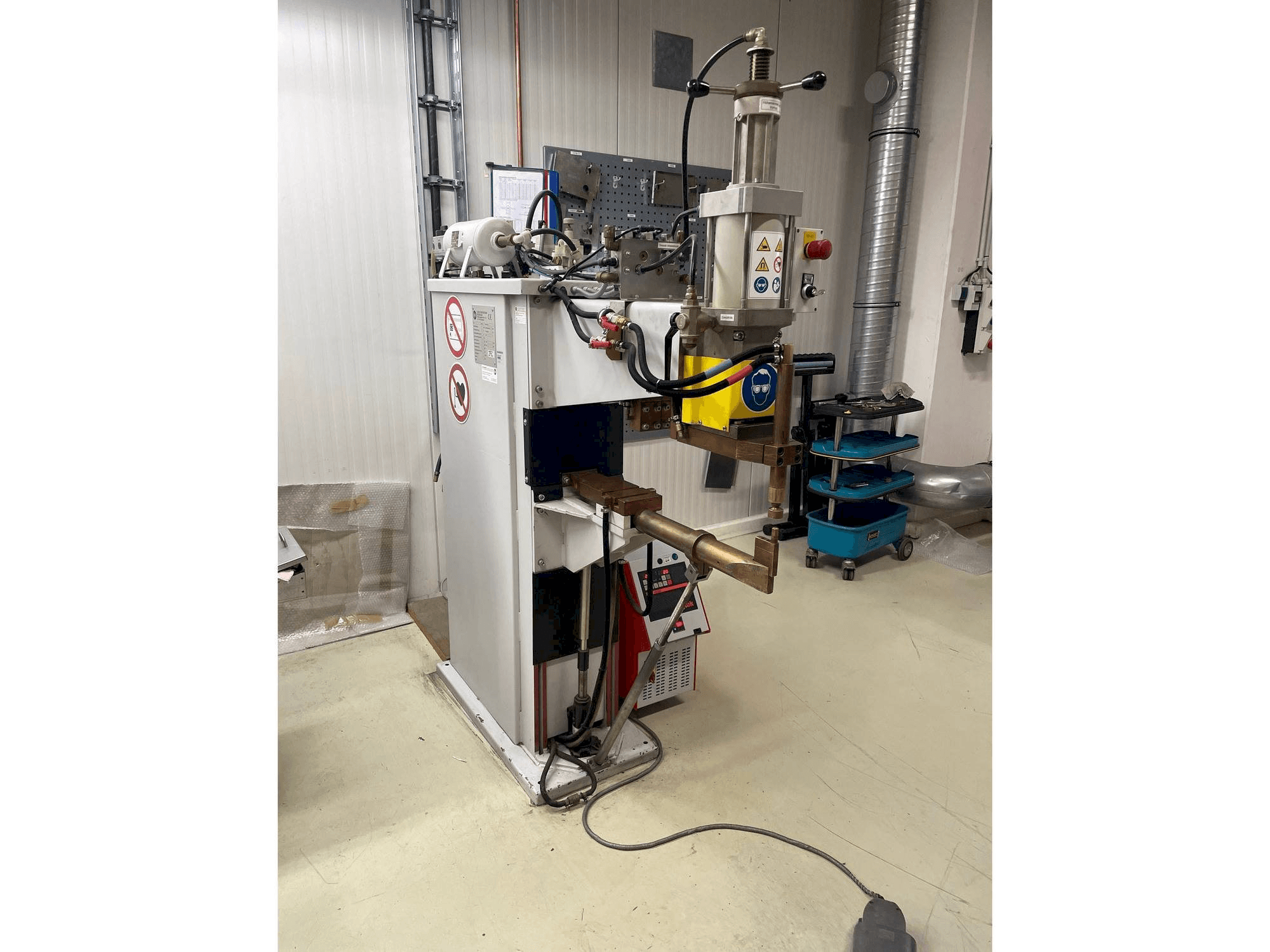

EST - 8212 SDE-WEL-EST-2004-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Welding cylinder with 736 dan at 6 bar to provide the necessary electrode force (double lifting cylinder with chrome steel wall and torsion protection)
  • - Adjusting device for welding cylinder
  • - Back pressure, lowering the electrode at low pressure, adjustable via precision pressure regulator
  • - Lowering the cylinder without pressure for set-up and maintenance work
  • - Emergency stop switch and emergency stop main machine switch
  • - Additional tubular electrode arm with indirectly cooled bar and finger electrode
  • - Lower console 99001-03. 01 (d=270/ d=120/ =x 465) lower arm support
• Qualitative Machine Benefits:
  • - Proportional valve for working pressure (set/actual value adjustment with pressure monitoring)
  • - Pressure tank to compensate for mains fluctuations
  • - Pre-stroke controlled via key switch
  • - Lower console height-adjustable by means of lifting device
  • - T-slot plates top / bottom width 120mm, slot spacing 63mm for slot stone m12
  • - Solenoid valve for shutting off the cooling water and water flow monitor (flow control switch)
  • - Rs 232 interface
  • - Interface for proportional valve
  • - 2-stage foot switch (start 1)
  • - Second welding programme can be called up via optional 2nd foot switch
