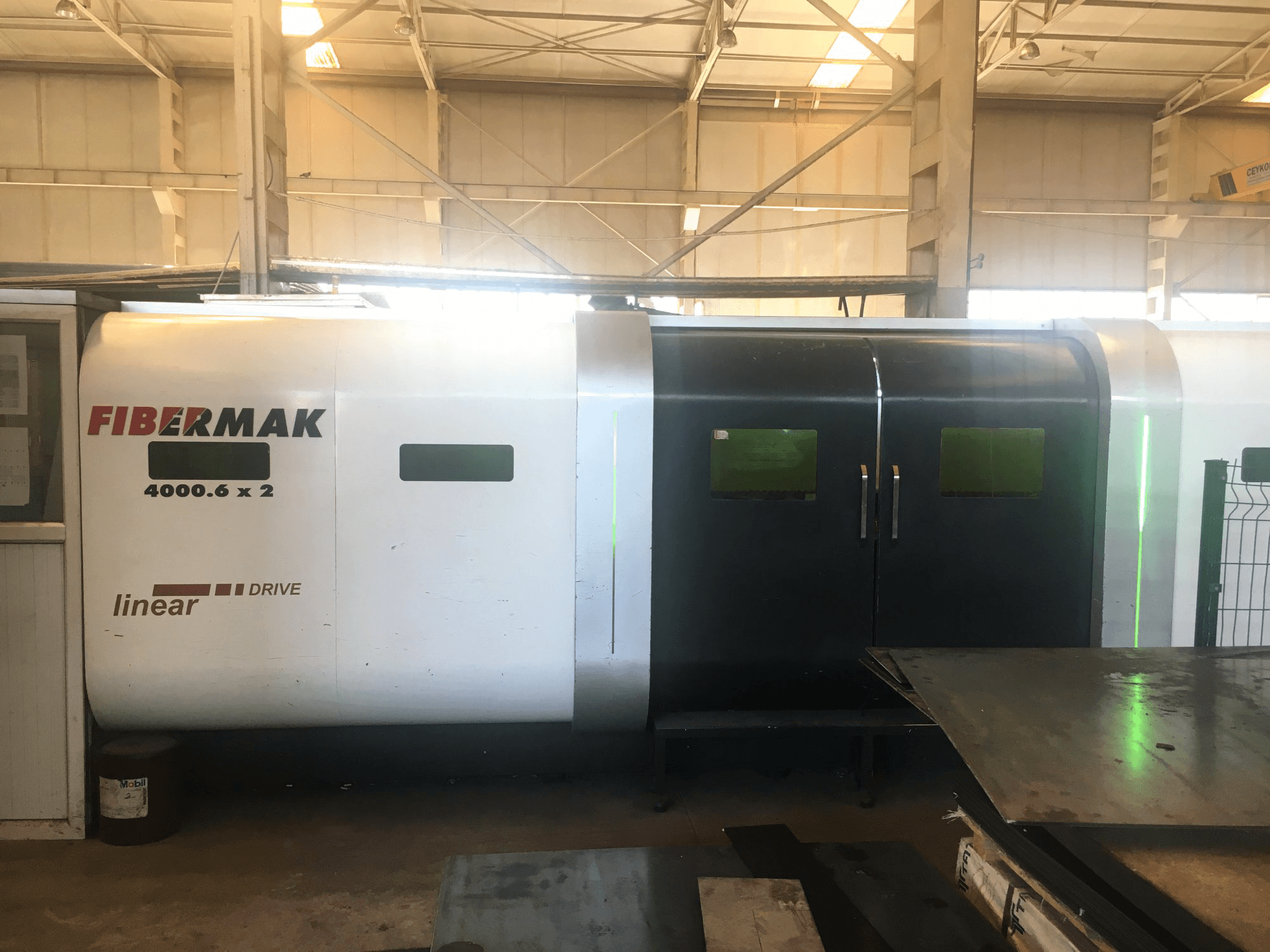

ERMAKSAN EFB 4000 6x2 Fiber Laser Cutting Machine

Show in original language

This ERMAKSAN EFB 4000 6x2 Fiber Laser Cutting Machine from 2012 was made in Turkey and has been operative for 11790 production hours. During the past, this machine has mainly processed steel sheets, is equipped with a POWER AUTOMATION Control unit and stands out due to its linear drive system, dual pallet system and its 4 axis movement range.

Overview

brand: ERMAKSAN
year: 2012
MODEL: EFB 4000 6x2
production hours: 11790
application type: Cutting
Location: Turkey
machine type: CO2 Laser Cutting Machine
availability: Sold

Technical Information - ERMAKSAN EFB 4000 6x2

General Data

Measurements width: 3370 mm
Measurements depth: 15485 mm
Measurements height: 2325 mm
Machine weight: 16700 kg

Main drive

Laserpower: 4 kW
Laser type: Fiber
Laser brand: IPG YLS-4000

Workpiece

Workpiece x: 2000 mm
Workpiece y: 6000 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 10 mm

Media

Main electronic connection: 380 V
Power consumption: 42 kVA

Additional equipment

- Chiller
- Dust Collector

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
