Enshu - DT-CLES-MIL-ENS-1995-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Enshu DT-CL Machining Center

Show in original language

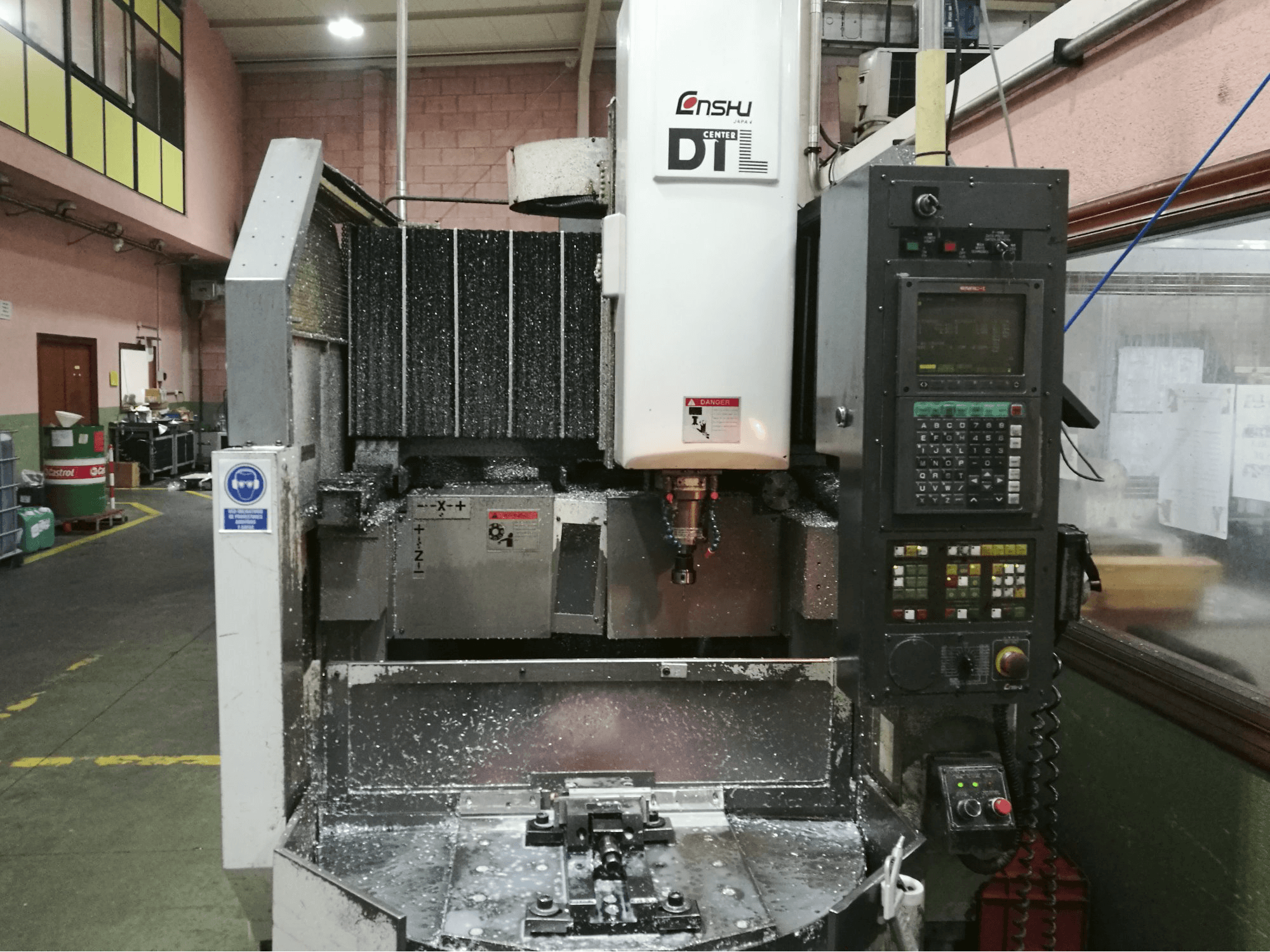

This Enshu DT-CL Machining Center from 1995 is operated through a Yasnac Enac-I Control unit, and comes with BT-30 cones as additional equipment. In the past, this machine has worked with aluminium 98% of its operation. The Enshu DT-CL is indeed a very fast equipment, ideal for aluminium machining tasks.

Overview

brand: Enshu
year: 1995
MODEL: DT-CL
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - Enshu DT-CL

General Data

Measurements width: 1350 mm
Measurements depth: 2760 mm
Measurements height: 2615 mm
Machine weight: 3500 kg

Control Unit

Model: Enac-I

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/min
Spindle motor power: 7.5 kW
Tool taper: BT30

Movement

X-AXIS Movement: 500 mm
X-AXIS Working Feed: 5000 mm/min
X-AXIS Feed Force: 36000 mm/min
Y-AXIS Movement: 400 + 210 mm
Y-AXIS Working Feed: 5000 mm/min
Y-AXIS Feed Force: 36000 mm/min
Z-AXIS Movement: 300 + 80 mm
Z-AXIS Working Feed: 5000 mm/min
Z-AXIS Feed Force: 36000 mm/min

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 700 mm
Outer width: 400 mm
Number of tslots: 3
Distance between: 14 mm

Media

Main electronic connection: 220 V / 50-60 Hz

Additional equipment

- BT-30 cones

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
