➤ Used ENGEL VC 750/150 Plus - Injection Moulding Machine

Show in original language

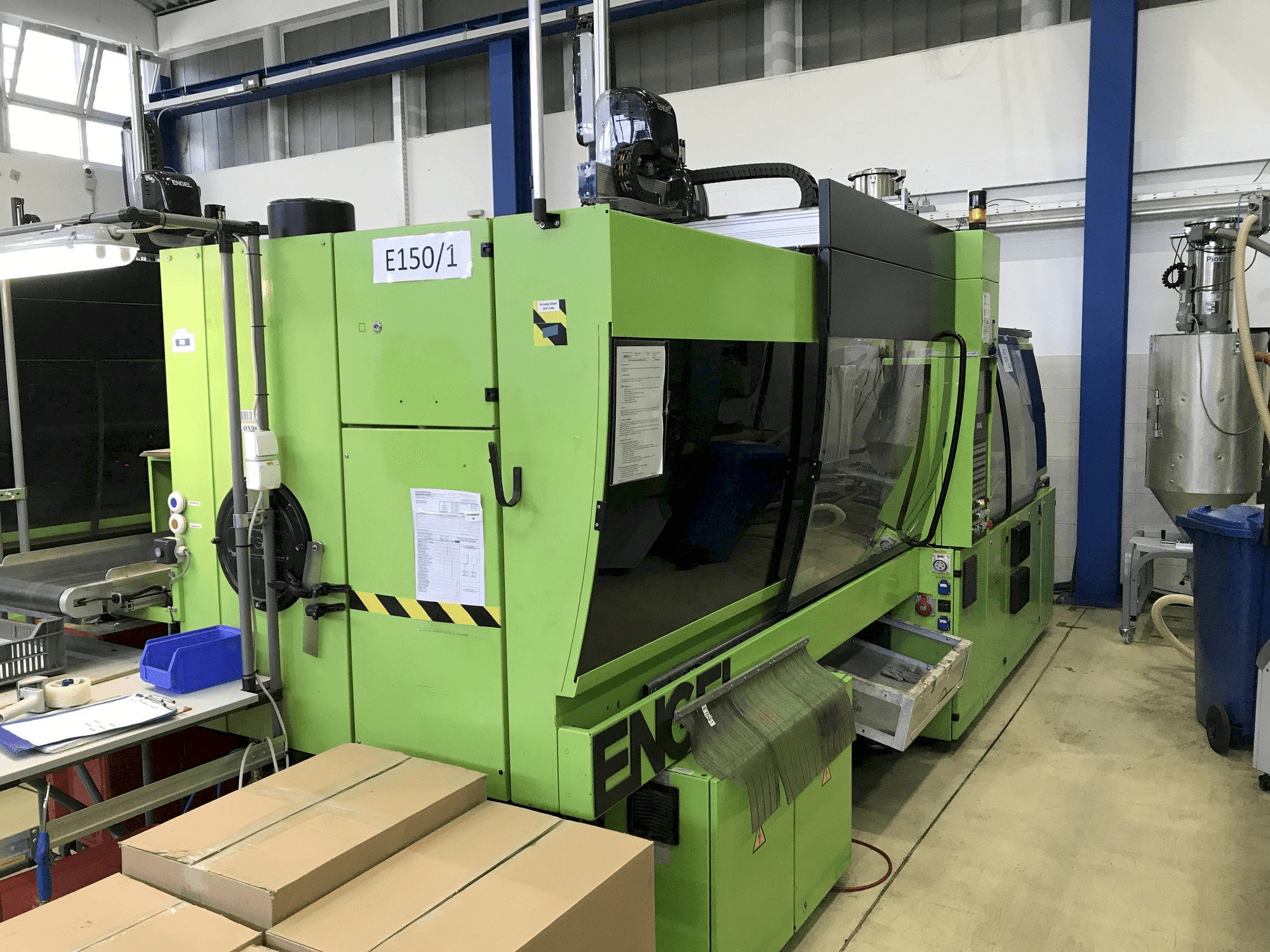

This ENGEL VC 750/150 Plus Injection Moulding Machine was built in 2004 in Germany and has a production record of 88911 hours since then. Operated through an ENGEL CC200 Control unit, this machine can work with a clamping force of 1500 kN. An ENGEL ERC 23/2-F robot is included additionally.

Overview

brand: Engel
year: 2004
MODEL: VC 750/150 Plus
production hours: 88911
application type: Injection Moulding
Location: Hungary
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel VC 750/150 Plus

General Data

Measurements width: 5150 mm
Measurements depth: 1710 mm
Measurements height: 2100 mm
Machine weight: 9500 kg

Control Unit

Model: CC200
Brand: ENGEL

Injection Unit

Screw diameter: 50 mm
Stroke volume: 393 CM³
Injection pressure: 1427 bar

Clamping unit

Clamping force: 1500 kN
Opening stroke: 605 mm

Media

Power consumption: 30 kVA

Additional equipment

- Engel ERC 23/2-F robot

Additional Information

Machine history

Industries: Automotive

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
