➤ Used ENGEL ES 1300/200 - Injection Moulding Machine

Show in original language

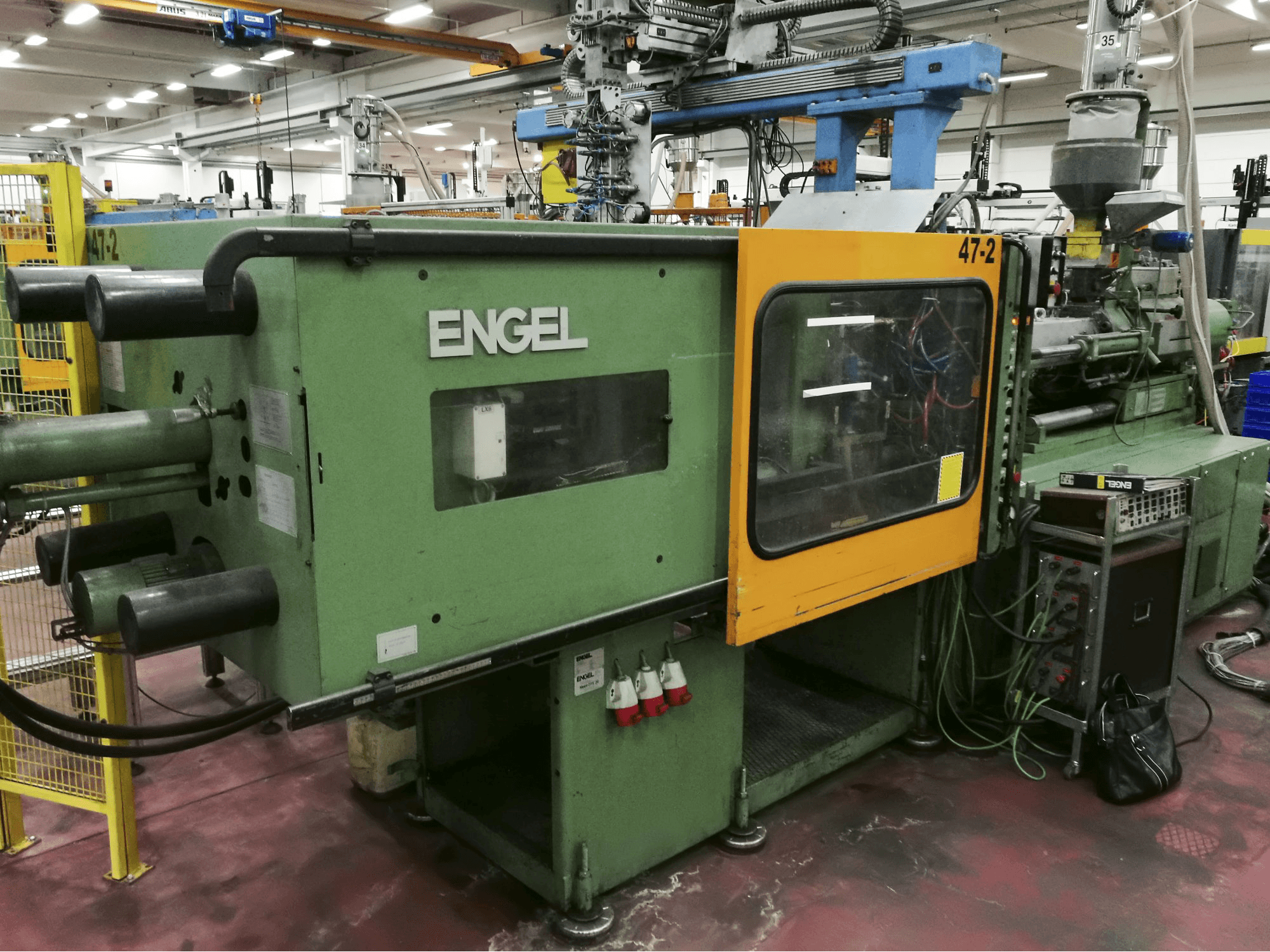

This ENGEL ES 1300/200 Injection Moulding Machine from 1989 was manufactured in Germany and has a production record of 145305 working hours. Equipped with an ENGEL CC90 Control unit, this model stands out due to its 2 core pull cylinders. Producing items like wheels for shopping carts, this machine mainly processed PP56M10 polymer during the past.

Overview

brand: Engel
year: 1989
MODEL: ES 1300/200
production hours: 145305
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel ES 1300/200

General Data

Measurements width: 6850 mm
Measurements depth: 1630 mm
Measurements height: 2440 mm
Machine weight: 8500 kg

Control Unit

Model: CC90
Brand: ENGEL

Injection Unit

Screw diameter: 70 mm
Shot weight: 900 g/PS
Stroke volume: 1000 cm³
Injection pressure: 1100 bar
Plasticizing rate max.: 380 g/s PS
Screw speed: 5-210 1/min
Heating capacity: 18.6 kW
Adjustable heating zones: 4
Nozzle pressure: 96 kN

Clamping unit

Clamping force: 2000 kN
Opening stroke: 510 mm
Distance between bars: 510 x 510 mm
Mould height min: 200 mm
Mould height max: 510 mm
Size of mold platens: 770 x 770 mm
Ejector stroke: 150 mm
Ejector force for / back: 61 kN

Media

Pump drive power: 37 kVA
Oil tank: 360 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
