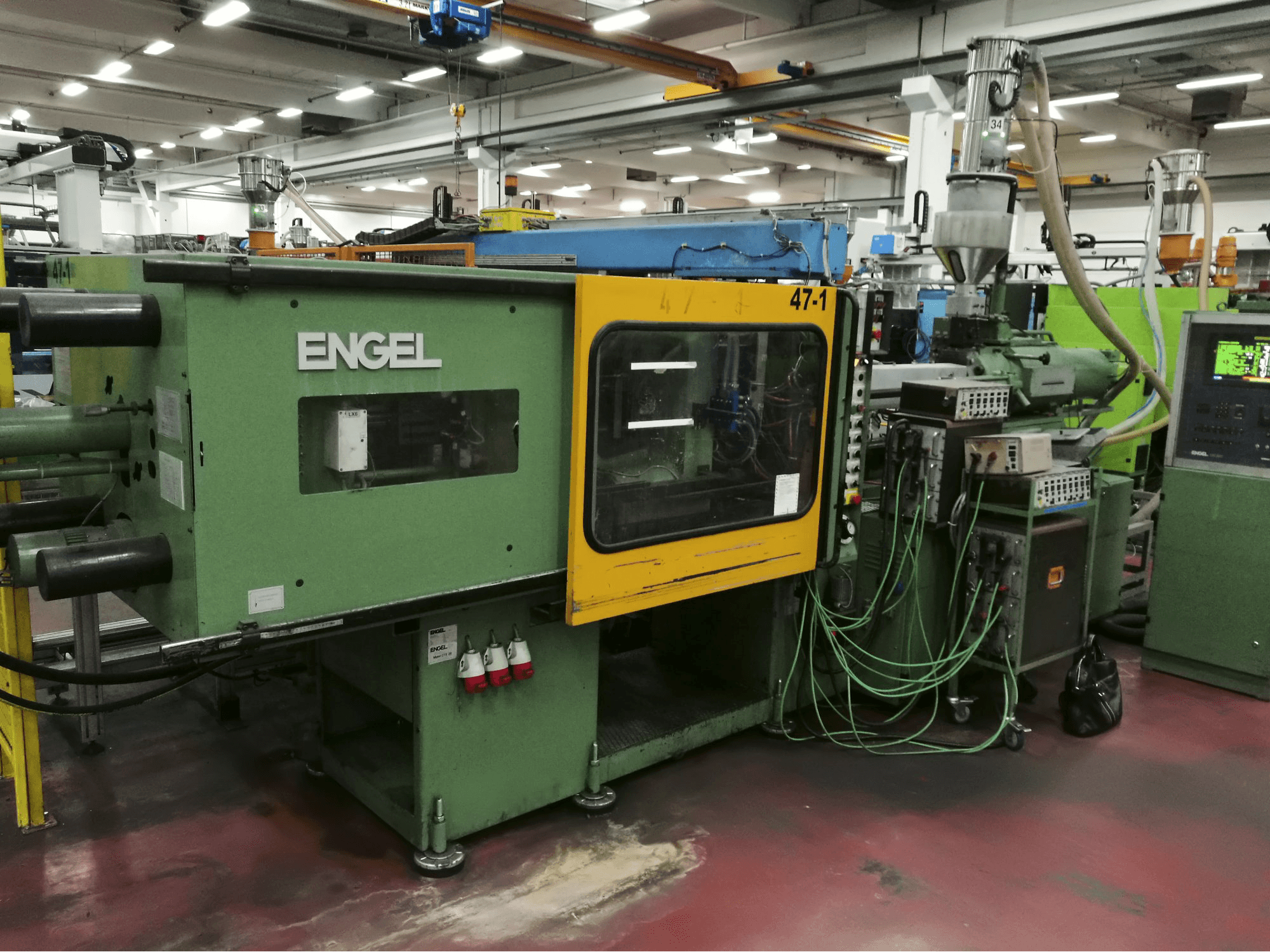

This ENGEL ES 1300/200 Injection Moulding Machine was manufactured in Germany in 1989 and has a working record of 132515 production hours. The model is operated through an ENGEL CC90 control unit, and stands out for incorporating two core pull cylinders. In the past, this machine has handled mainly PP56M10 polymer, producing wheels for shopping carts.
Overview
- brand: Engel
- year: 1989
- MODEL: ES 1300/200
- production hours: 132515
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: ENGEL
Technical Information - Engel ES 1300/200
General Data
- Measurements width: 6850 mm
- Measurements depth: 1630 mm
- Measurements height: 2440 mm
- Machine weight: 8500 kg
Control Unit
- Brand: ENGEL
- Model: CC90
Injection Unit
- Screw diameter: 70 mm
- Shot weight: 900 g/PS
- Stroke volume: 1000 cm³
- Injection pressure: 1100 bar
- Plasticizing rate max.: 380 g/s PS
- Screw speed: 5-210 1/min
- Heating capacity: 18.6 kW
- Adjustable heating zones: 4
- Nozzle pressure: 96 kN
Clamping unit
- Clamping force: 2000 kN
- Opening stroke: 510 mm
- Distance between bars: 510 x 510 mm
- Mould height min: 200 mm
- Mould height max: 510 mm
- Size of mold platens: 770 x 770 mm
- Ejector stroke: 150 mm
- Ejector force for / back: 61 kN
Media
- Pump drive power: 37 kVA
- Oil tank: 360 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
