Emmegi TRIMMER 2A

Show in original language

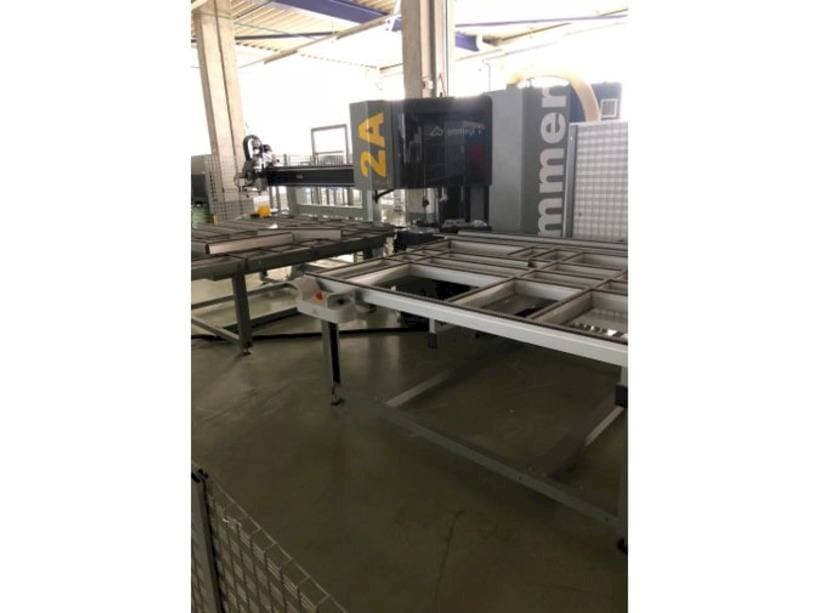

This Emmegi TRIMMER 2A was made in the year 2009 in Italy. Is a CNC corner cleaning machine for PVC frames with 2 interpolated axes and automatic cycle which, when suitably configured, is able to recognize the size of the profile to be cleaned. It has a 275 mm diameter knife which allows, with different work programs, cleaning the outer corner on various profiles.

Overview

brand: Emmegi
year: 2009
MODEL: TRIMMER 2A
application type: Other Machine Tools
Location: Switzerland
machine type: Machine Tool
availability: Sold

Technical Information - Emmegi TRIMMER 2A

General Data

Machine weight: 3500 kg

Main drive

Number of axis: 2

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Frame size with manual feeding unlimited
- - Max. Frame size with automatic feeding (optional turntable) (mm) 2. 300 x 2. 300 (2,7 kg/m) 2. 500 x 2. 500 (2,5 kg/m)
- - Min. Frame size, external measurement (mm) 350 x 350
- - Min. Frame size, internal measurement (mm) 210 x 210
- - Max. Profile height (mm) 120 / 200 (optional)
- - Min. Profile height (mm) 40
- - Max. Profile width (mm) 150
- - Cutter holder shaft diameter (mm) 32
- - Cutter speed (depending on cutter diameter) (rpm) 0 ÷ 12. 000
- - Cutter diameter (mm) 275
Qualitative Machine Benefits:
- - Machine in excellent condition
- - Cutter motor power rating (kw) 2,4
- - Places available for top / bottom units 5 / 5
- - Machinable surfaces: with cutter (external profile) 1, with top and bottom units with knife (top and bottom surfaces, internal profile) 3, with milling unit (top and bottom surfaces) 2
- - Perimeter enclosure guard for semiautomatic and automatic trimmer 2a

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
