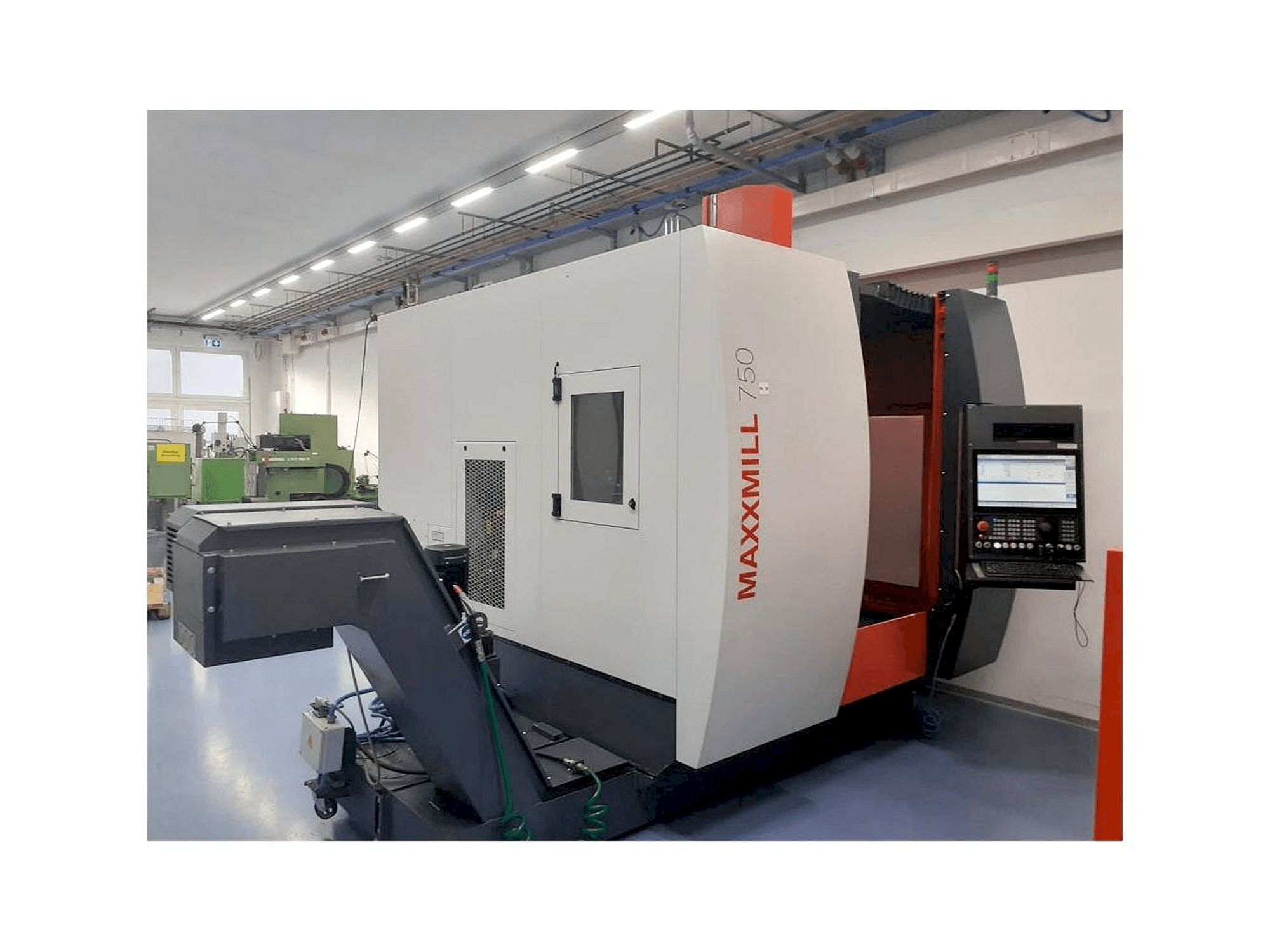

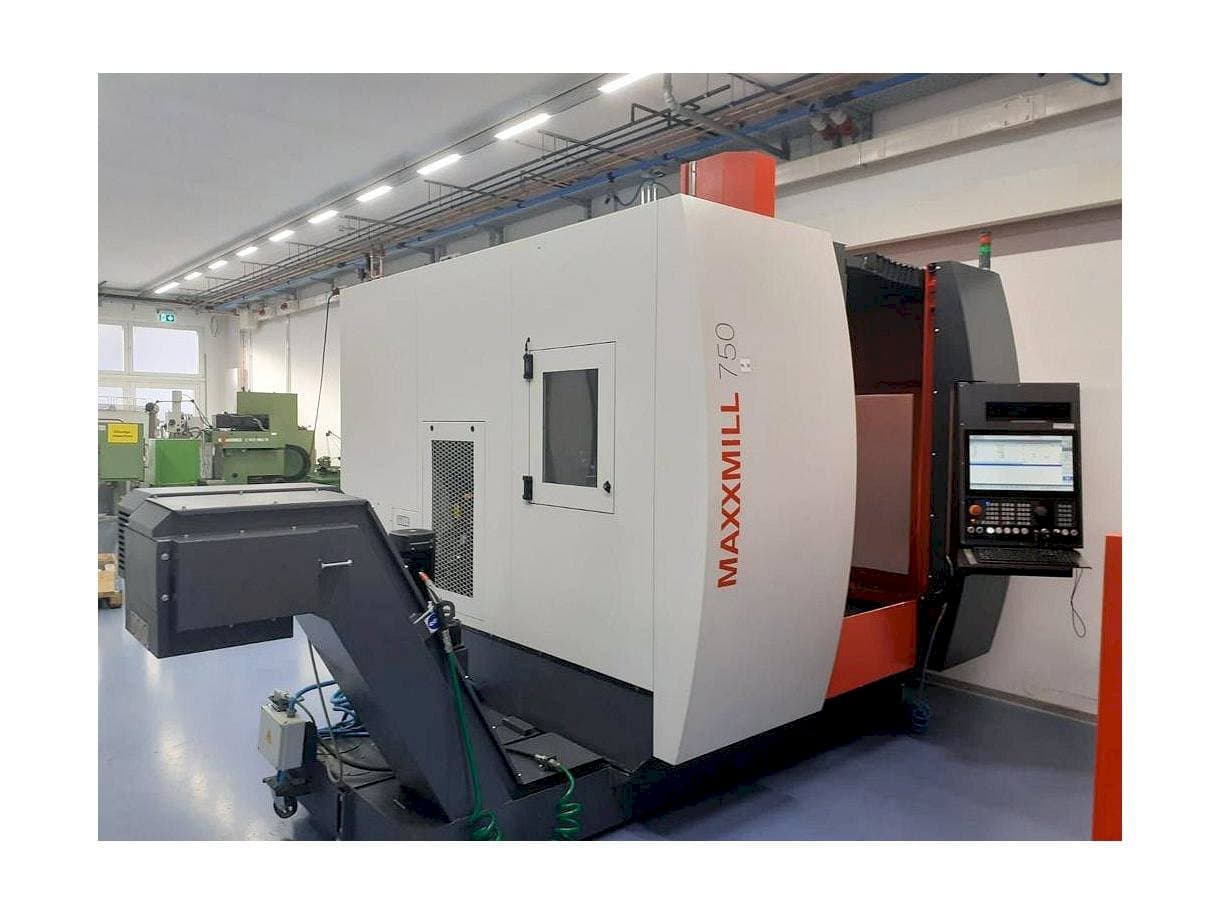

Front view of EMCO Maxxmill 750  machine

EMCO - Maxxmill 750DE-MIL-EMC-2018-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Emco Maxxmill 750 Vertical Machining Center was manufactured in the year 2018 in Italy. It is equipped with a SIEMENS SHOPMILL control unit and has a 3+2 axis. The machine has a spindle speed of 15000 rpm, is in very good condition, and is well maintained.

Overview

  • brand: EMCO
  • year: 2018
  • MODEL: Maxxmill 750
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - EMCO Maxxmill 750

General Data

  • Measurements width: 4177 mm
  • Measurements depth: 3500 mm
  • Measurements height: 3060 mm
  • Machine weight: 7900 kg

Control Unit

  • Model: SHOPMILL
  • Brand: SIEMENS

Main drive

  • Number of spindles: 1
  • Spindle speed range: 15000 1/MIN
  • Number of axis: 3+2

Movement

  • X-AXIS Movement: 750 mm
  • Y-AXIS Movement: 610 mm
  • Z-AXIS Movement: 500 mm

Workpiece

  • Workpiece weight: 300 kg

Table

  • Outer length: 750 mm
  • Outer width: 600 mm

Tools

  • Slots in storage: 40
  • Max weight: 8 kg
  • Max tool diameter: 80/125 mm
  • Max tool length: 250 mm
  • Type of tool holder: DIN 40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - B axis +/- 100 degress
      • - C axis 360 degrees (0. 001 degree increment)
      • - Min - max height under spindle 175 - 675mm
      • - Rapid feed rates 30m/minute
      • - Spindle motor power 20kw
      • - Swarf conveyor, coolant, interlocked guards, low volt light
    • Qualitative Machine Benefits:
      • - Very good condition with low hours!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
