➤ Used EMCO Emcomill E350 For Sale | gindumac.com

Show in original language

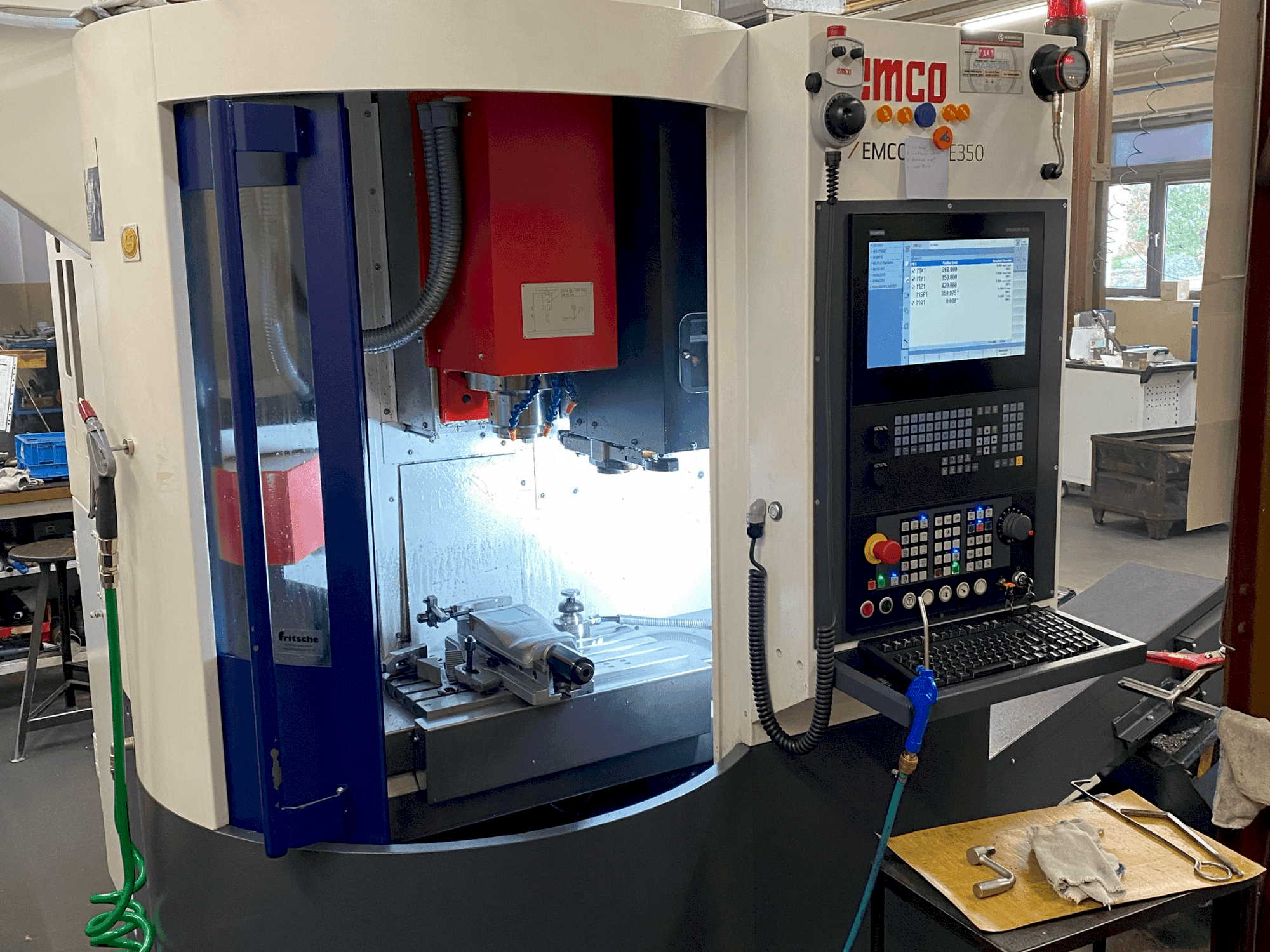

This 3-axis EMCO Emcomill E350 vertical machining centre was manufactured in 2023. It features a Siemens 828D control, electronic handwheel, and a tool magazine with 20 positions. The spindle speed reaches up to 10,000 rpm, and it includes a chip conveyor and high-pressure coolant device. If you are looking to get high-quality milling capabilities, consider the EMCO Emcomill E350 machine we have for sale. Contact us for more information about this machine.

Overview

brand: EMCO
year: 2023
MODEL: Emcomill E350
production hours: 255
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - EMCO Emcomill E350

General Data

Measurements width: 1700 mm
Measurements depth: 1600 mm
Measurements height: 2200 mm
Machine weight: 1970 kg

Control Unit

Brand: SIEMENS
Model: 828D

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 7 KW
Number of axis: 3

Movement

X-AXIS Movement: 350 mm
X-AXIS Feed Force: 2400 N
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 250 mm
Y-AXIS Feed Force: 2400 N
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 300 mm
Z-AXIS Feed Force: 4000 N
Z-AXIS Rapid traverse: 24 m/min

Tools

Max weight: 5 kg
Max tool diameter: 63 mm
Max tool length: 200 mm
Type of tool holder: ISO 30

Additional equipment

- 8 bar high pressure coolant device
- Chip conveyor 500 mm
- Cleaning gun/multiflow
- Oil mist separator
- Tightening bolt SK 30
- NC dividing head TANI100 without chuck
- Manual tailstock for NC dividing head TANI100
- Chuck flange for NC dividing head TANI100
- Manual 3-jaw chuck 100 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pitch: x - 20 mm, y - 10 mm, z - 10 mm
- - Max. Workpiece size: 350 x 250 mm
- - Clamping surface: 500 x 300 mm
- - Tool magazine: 20 positions
- - Tool clamping force: 1040 n
- - Tool change time: 2. 5 seconds
- - Spindle torque: 41 nm (s6-40%)
- - Tank capacity: 140 litres

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
