elumatec SBZ 140 Vertical Machining Center

Show in original language

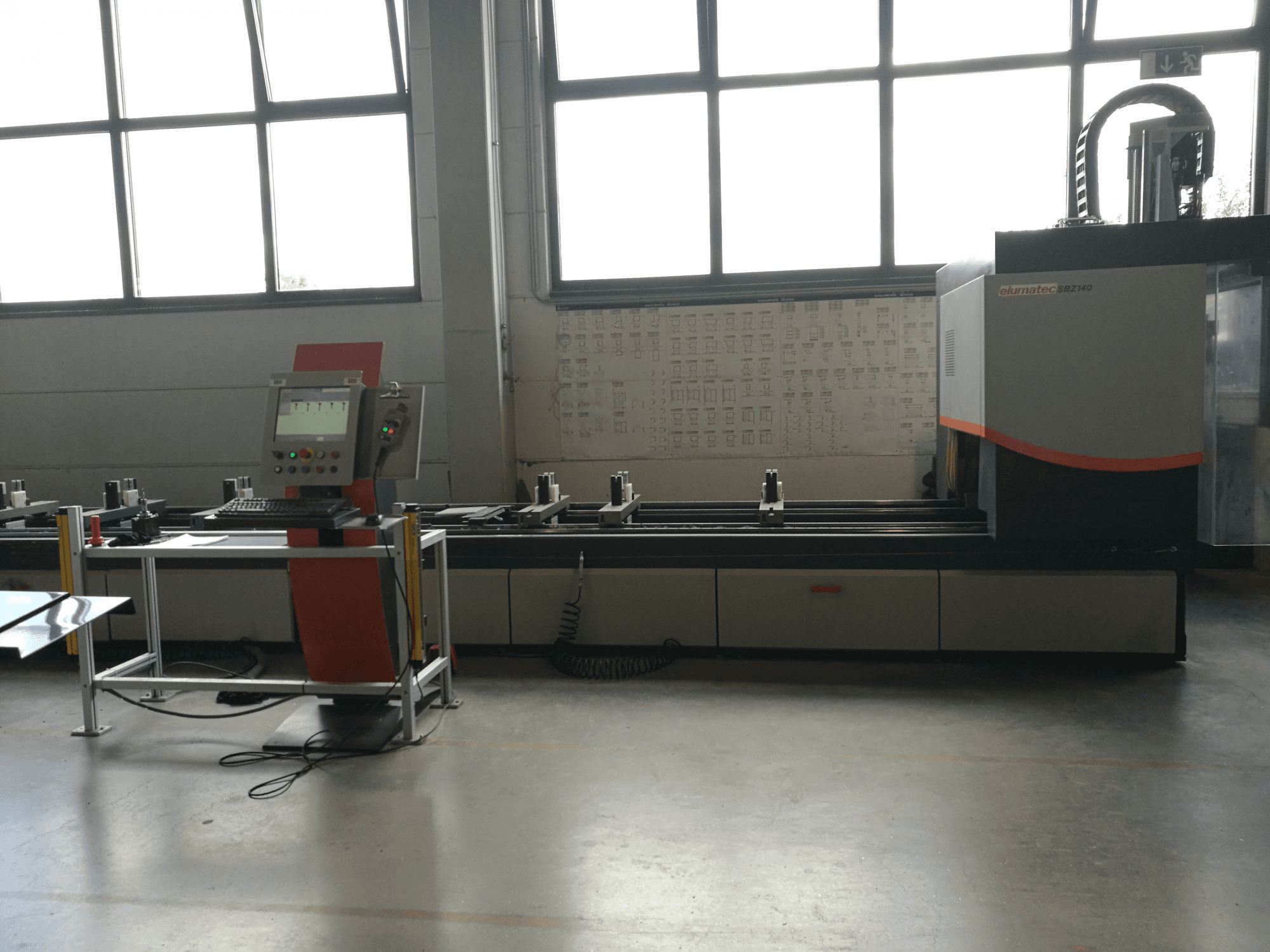

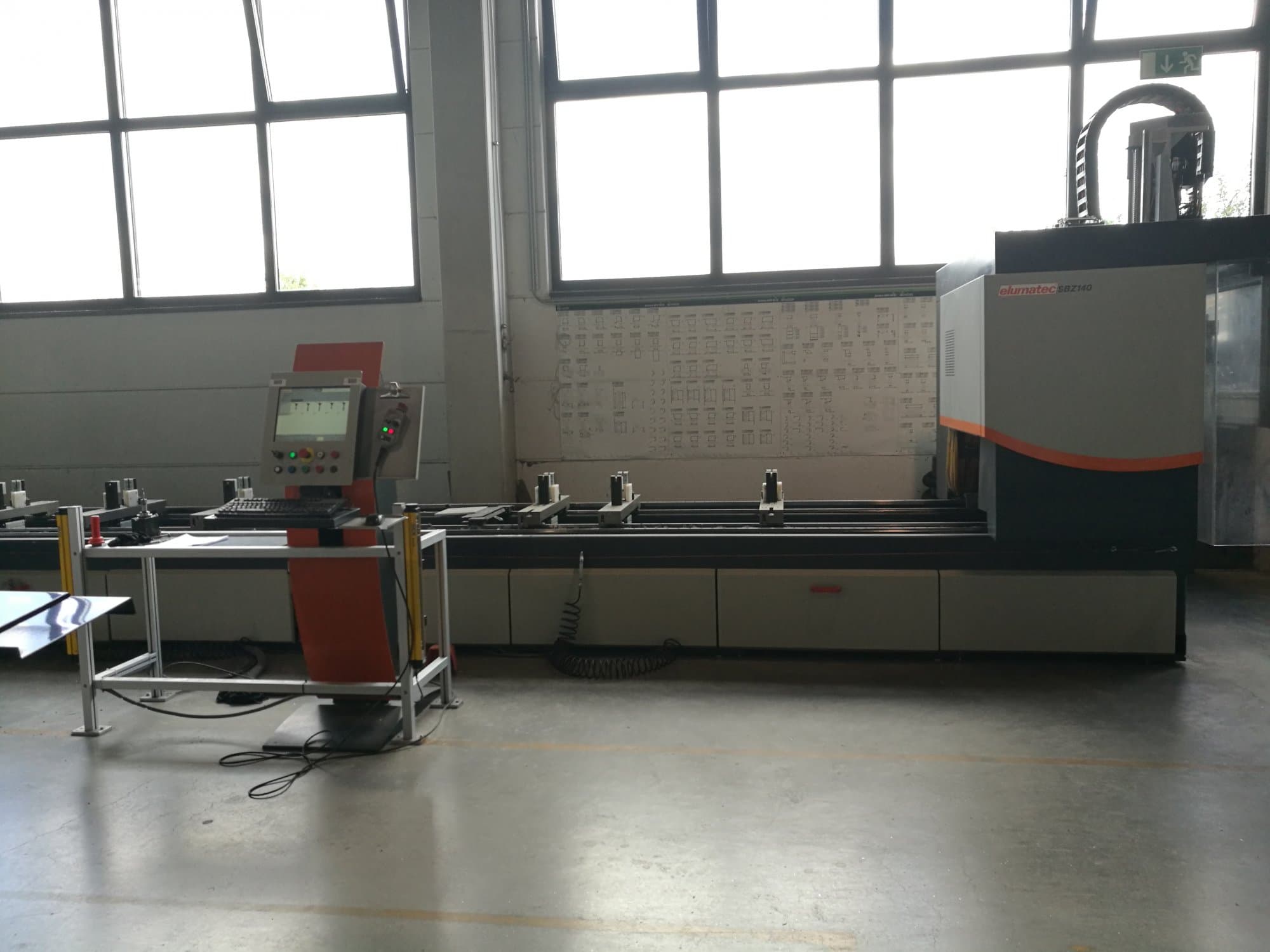

This elumatec SBZ 140 Vertical Machining Center from 2007 was manufactured in Germany and is in operation for 10070 production hours since then. Equipped with a Ferrocontrol Control Unit, this 4-Axis machine stands out due to its 2 separate working zones allowing shuttle operation and the stepless 180° adjustment. During the past, this machine has mainly worked with 15 mm aluminium profiles and comes with 8 tools included.

Overview

brand: Elumatec
year: 2007
MODEL: SBZ 140
production hours: 10070
application type: Other Machine Tools
Location: Germany
machine type: Drilling Machine (Metal)
availability: Sold

Technical Information - Elumatec SBZ 140

General Data

Measurements width: 7000 mm
Measurements depth: 1600 mm
Measurements height: 2800 mm
Machine weight: 5500 kg

Main drive

Spindle speed range: 24000 1/min

Movement

X-AXIS Movement: 7600 mm
Y-AXIS Movement: 850 mm
Z-AXIS Movement: 650 mm

Workpiece

Workpiece weight: 140 kg

Table

Outer length: 7000 mm
Outer width: 850 mm

Tools

Max tool diameter: 80 mm
Max tool length: 200 mm

Media

Main electronic connection: 3x 400 V
Power consumption: 40 kVA
Oil water separator: Yes

Additional equipment

- 8x Tool

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
