Elumatec SBZ 122/3 Vertical Machining Center

Show in original language

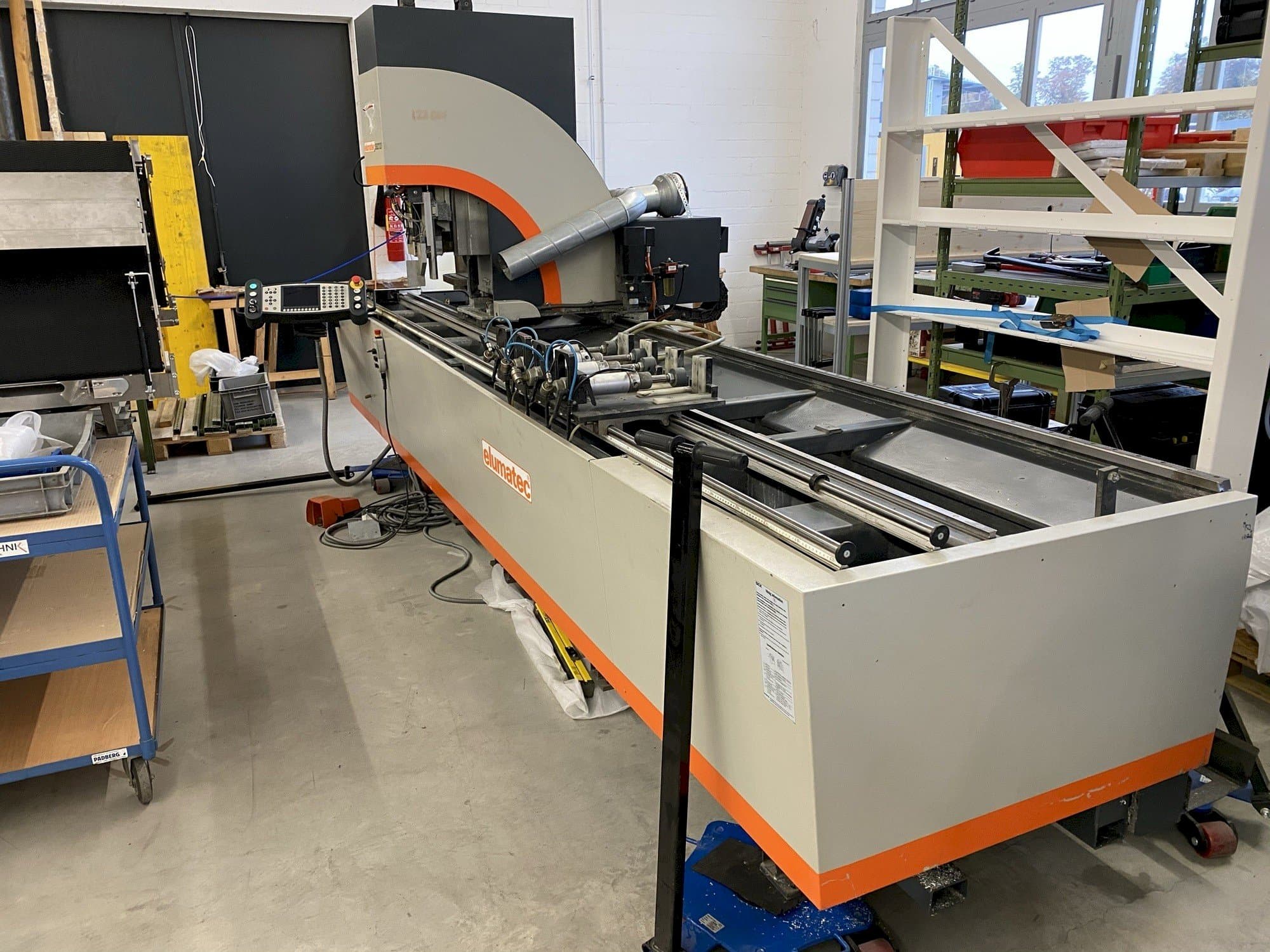

This Elumatec SBZ 122/3 Vertical Machining Center was built in 2006 in Germany. This machine can work with a spindle speed up to 21000 rpm and a spindle power of 6 kW. Includes 3 pcs tool holders and 1 pcs drill chuck. Machine in very good condition.

Overview

brand: Elumatec
year: 2006
MODEL: SBZ 122/3
application type: Milling
Location: Switzerland
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Elumatec SBZ 122/3

General Data

Measurements width: 2400 mm
Measurements depth: 5100 mm
Measurements height: 2400 mm
Machine weight: 1700 kg

Main drive

Number of spindles: 1
Spindle speed range: 21000 1/MIN
Spindle motor power: 6 kW
Number of axis: 3

Movement

X-AXIS Movement: 3850 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 280 mm

Tools

Type of tool holder: HSK F63

Additional equipment

- 3 pcs tool holders
- 1 pcs drill chuck
- Tool measuring device
- Rotation angle head
- Automatic tool changer with 4 tool storage places and storage place for rotary angle head
- Automatic clamp traverse
- Collision detection in program
- Central lubrication
- Safety device light barrier
- Material stop

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Processing lenght 3650 mm
- - Max. Machining lenght 3750 mm
- - Max. Cutter diameter 63 mm
- - Max. Disc cutter diameter 200 mm
Qualitative Machine Benefits:
- - Instruction manual
- - Machine fully functional

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
