- ➤ Used ELB Optimat For Sale - Grinding | gindumac.com

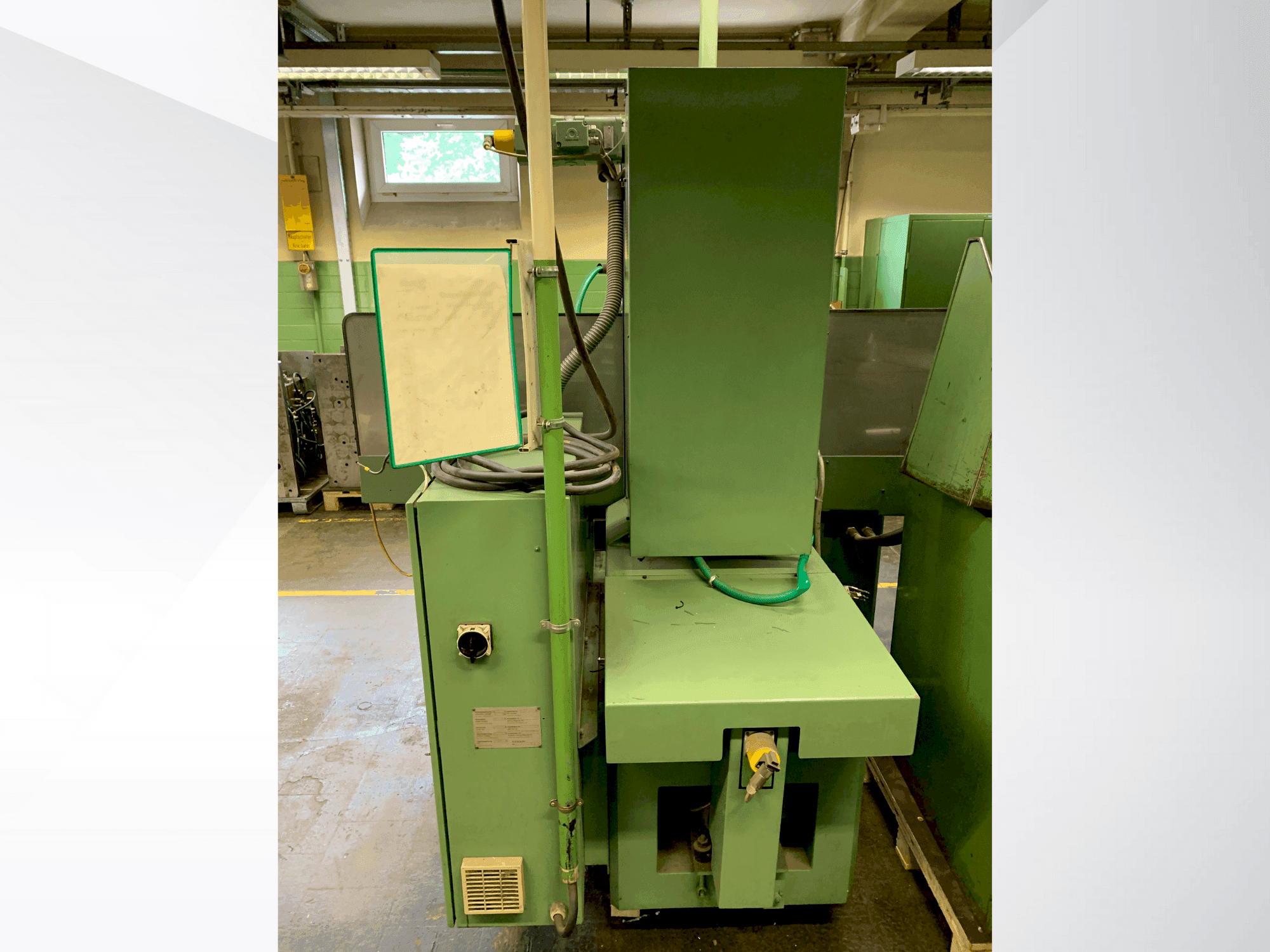

This 3-axis ELB Optimat Grinding machine was manufactured in 1989. It features a robust micro granite base and a powerful grinding spindle head with a speed of 1440 rpm. The machine offers a sanding length of 600mm and a width of 375mm, supporting a table load of 300kg. Ideal for precision tasks, the ELB Optimat includes a wet grinding device and a hand lever dressing device. For more information about this Grinding machine, please reach out to us.
Overview
- brand: ELB
- year: 1989
- MODEL: Optimat
- application type: Grinding
- Location: Germany
- machine type: Grinding Machine
- availability: Sold
Technical Information - ELB Optimat
General Data
- Measurements width: 2250 MM
- Measurements depth: 2750 MM
- Measurements height: 2400 MM
- Machine weight: 3600 KG
Control Unit
- Model: Control VA-II + ND
Main drive
- Spindle speed range: 1440 1/MIN
- Stroke: Table longitudinal stroke: 100-650 mm
- Number of axis: 3
Table
- Outer length: 900 mm
- Outer width: 350 mm
- Table load: 300 kg
Additional Information
- Technical Machine Benefits:
- - Machine base stand: micro granite
- - Guide system
- - Sanding disc holder: standard/horizontal sanding spindle/bore d=76. 2 mm/clamping width 20-30 mm/cone d=36 mm
- - Grinding spindle head: cone 36 mm, disc 300x50x76. 2 mm
- - Sanding l x w x h: 600 x 375 x 375 mm
- - X-axis: table feed 1-30 m/min
- - Y-axis: vertical feed max. 180 mm/min, infeed size adjustable from 0. 001 mm
- - Z-axis: automatic cross travel max. 350 mm, cross infeed size 1-40 mm, cross travel max. 1200 mm/min
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
