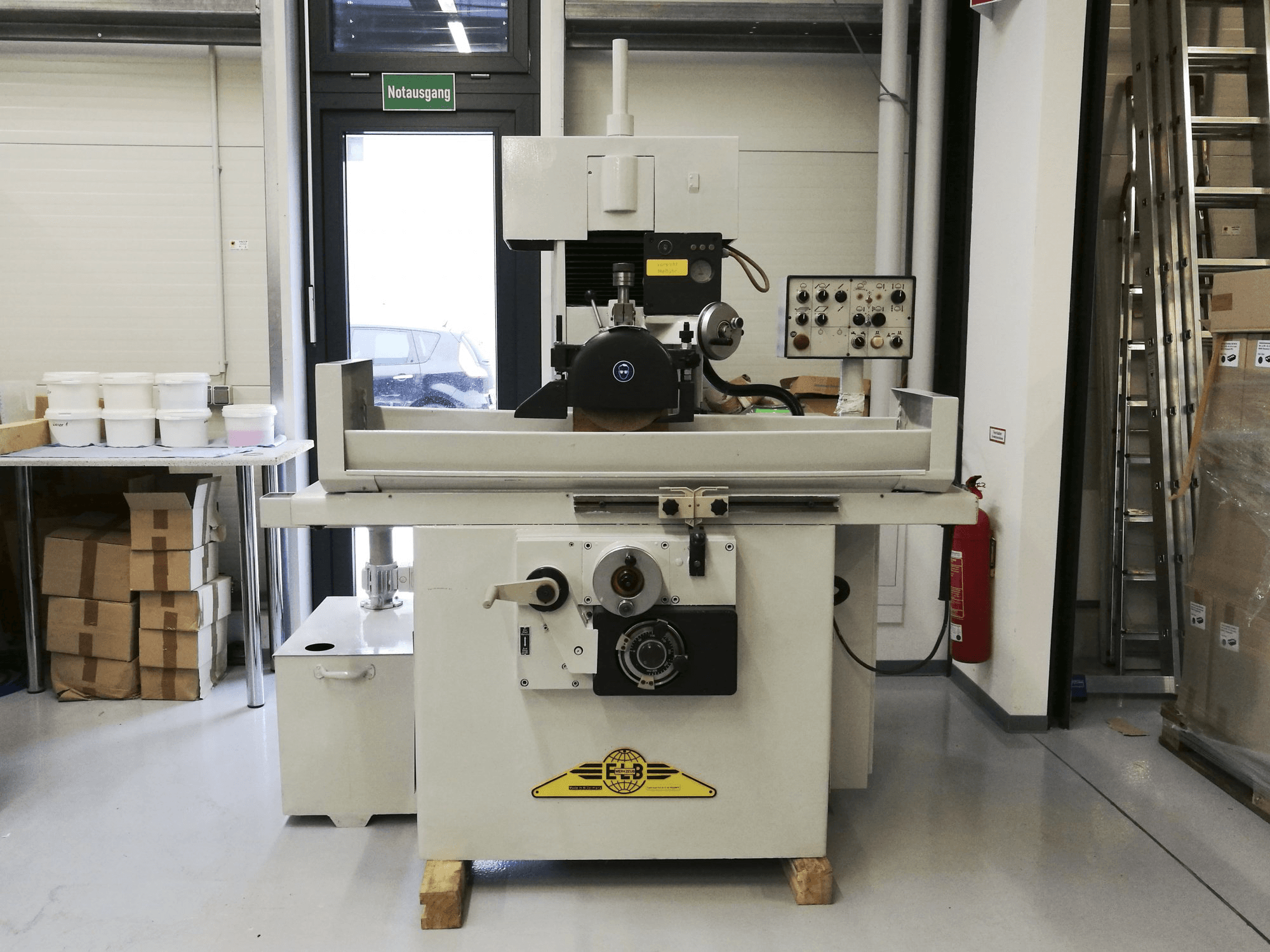

ELB Amb. 5/2 VAI-Z Grinding Machine

Show in original language

This ELB Amb. 5/2 VAI-Z Grinding Machine was manufactured in 1978 and comes with 3x grinding wheel holders as additional equipment. In the past, this machine has handled mostly steel and produced diamond indexable inserts for the Machinery industry. The model stands out for its robustness and its easy-handling, and ensures excellent grinding surfaces results.

Overview

brand: ELB
year: 1978
MODEL: Amb. 5/2 VAI-Z
application type: Grinding
Location: Germany
machine type: Surface Grinding Machine
availability: Sold

Technical Information - ELB Amb. 5/2 VAI-Z

General Data

Measurements width: 2050 mm
Measurements depth: 1350 mm
Measurements height: 2100 mm
Machine weight: 1450 kg

Main drive

Number of spindles: 1
Spindle speed range: 1400-2800 1/min
Spindle motor power: 1.2-1.4 kW

Movement

X-AXIS Movement: 420 mm
X-AXIS Working Feed: 1-30 m/min
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 230 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece x: 500 mm
Workpiece y: 250 mm
Workpiece weight: 250 kg

Table

Outer length: 760 mm
Outer width: 200 mm
TSlots size: 16 mm
Number of tslots: 1

Media

Main electronic connection: 380 V /50 Hz
Power consumption: 6 kVA
Lubrication tank: 85 L
Oil tank: 55 L

Additional equipment

- 3x grinding wheel holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
