Doosan VC 320 Vertical Machining center

Show in original language

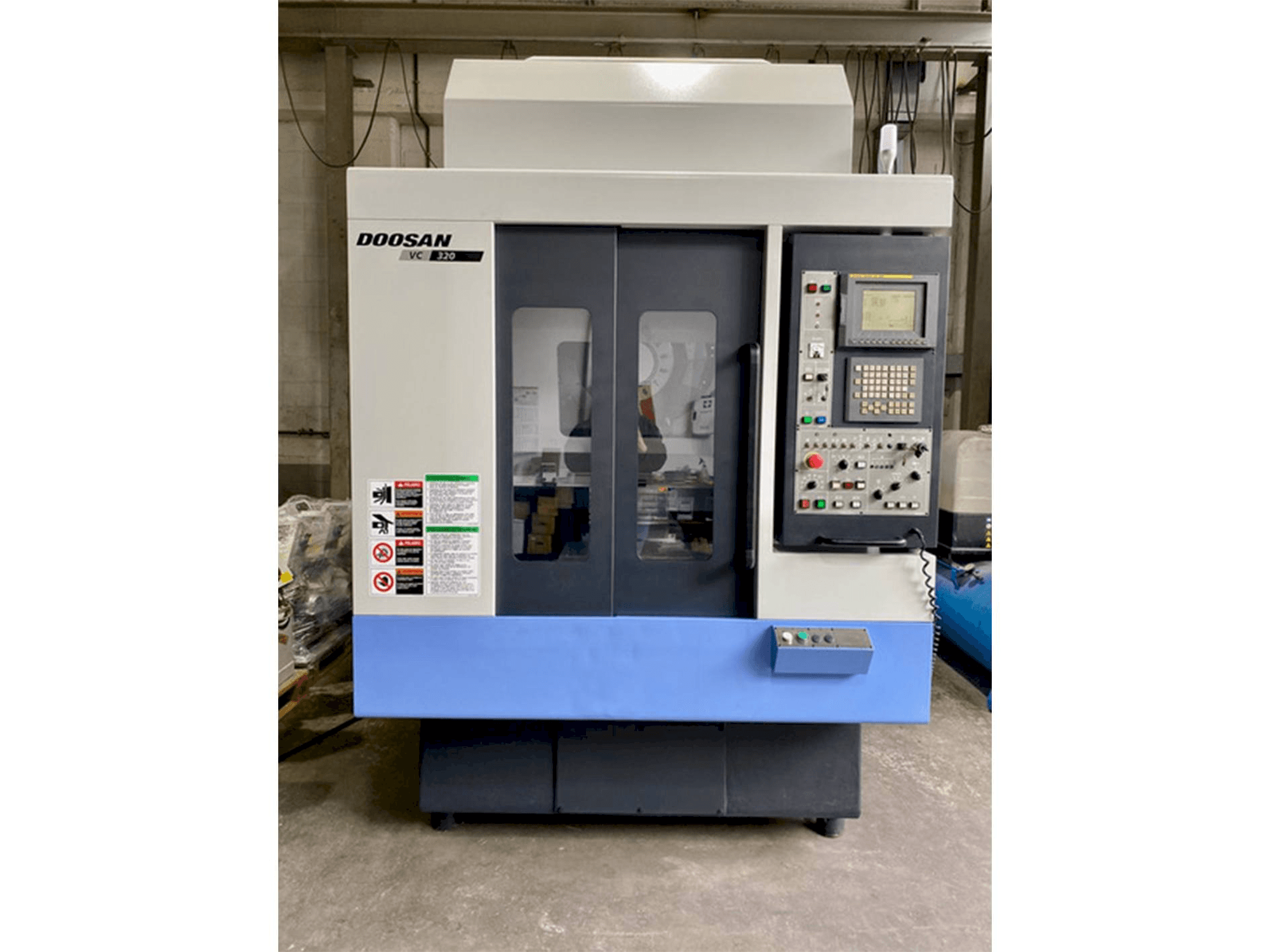

This Doosan VC 320 Vertical Machining center was manufactured in Korea in 2007. It has a production record of 18734 hours, of which 6558 are cutting hours. This 3 axis machine can work with a spindle speed up to 12000 rpm. It includes pallet change.

Overview

brand: DOOSAN
year: 2007
MODEL: VC 320
production hours: 18734
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN VC 320

General Data

Measurements width: 3250 mm
Measurements depth: 1700 mm
Measurements height: 2690 mm
Machine weight: 5500 KG

Control Unit

Model: 21i MB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 520 mm
Y-AXIS Movement: 320 mm
Z-AXIS Movement: 350 mm

Workpiece

Workpiece weight: 150 KG

Table

Outer length: 650 mm
Outer width: 355 mm

Tools

Slots in storage: 14
Max weight: 2.8 KG
Max tool diameter: 80 mm
Max tool length: 200 mm
Type of tool holder: BT-30

Media

Main electronic connection: 220V / 60Hz
Power consumption: 23.05 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pallet change
- - Electronic handweel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
