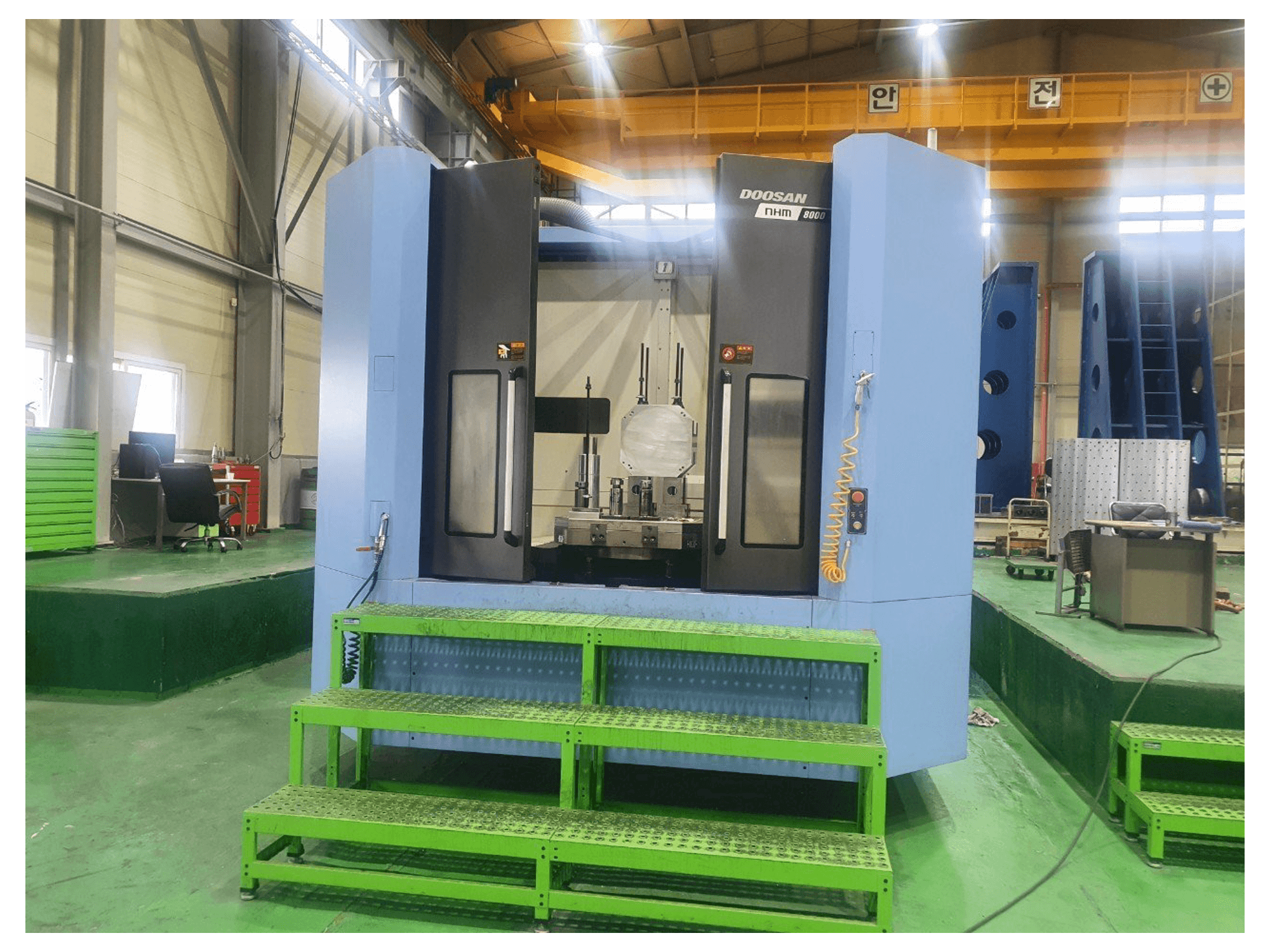

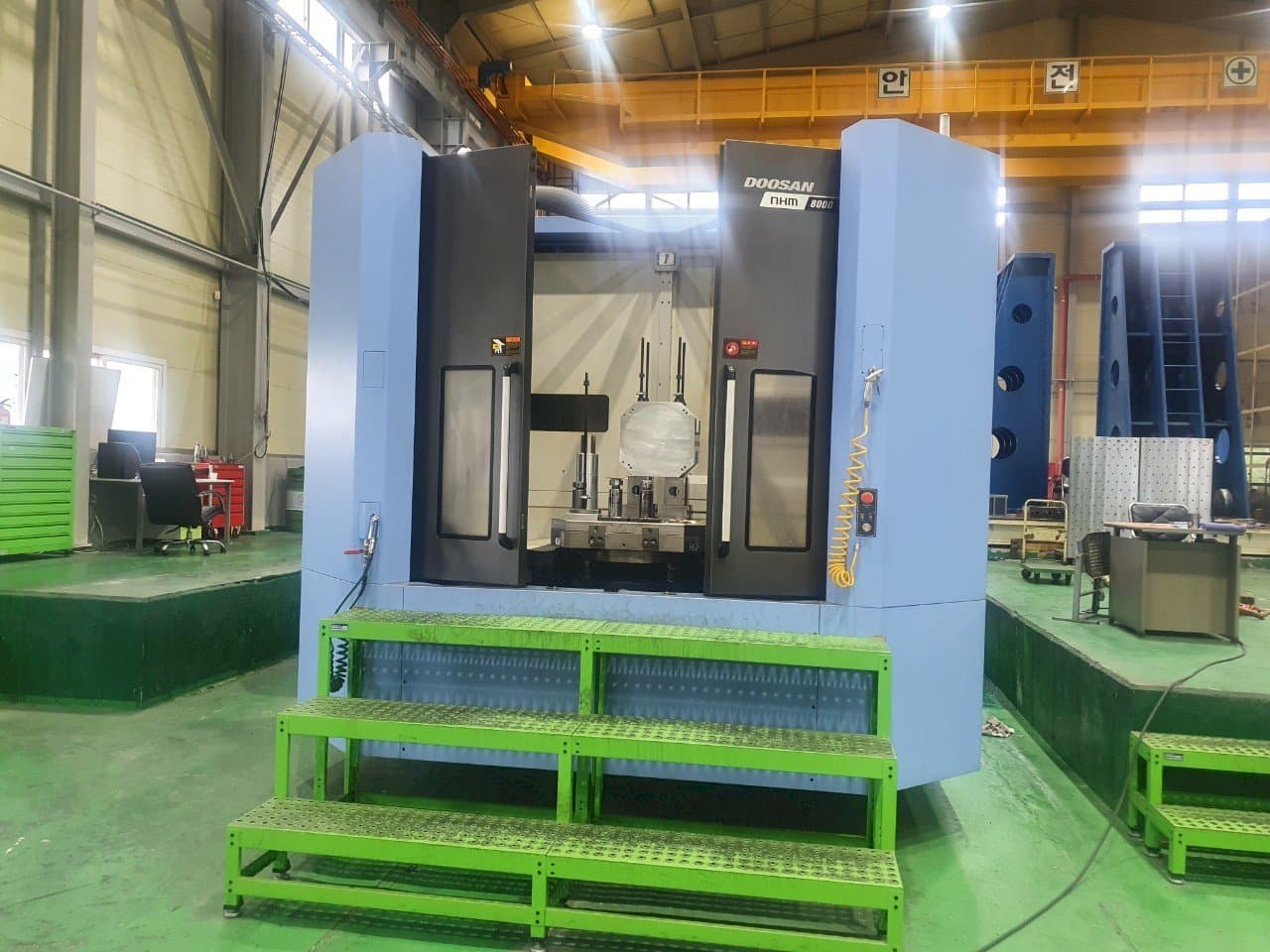

Doosan NHM8000 Horizontal Machining center

Show in original language

This Doosan NHM8000 Horizontal Machining center was built in 2018. It is operated through a FANUC Series 31i-MODEL B control unit. This 3 axis machine can works with a spindle speed up to 8000 rpm. It includes a spindle misting device system, air limit sensing and an automatic power off. It comes with manual books.

Overview

brand: DOOSAN
year: 2018
MODEL: NHM8000
application type: Milling
Location: South Korea
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN NHM8000

Control Unit

Model: Series 31i-MODEL B
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Tool taper: BT50
Number of axis: 3

Movement

X-AXIS Movement: 1400 mm
Y-AXIS Movement: 1050 mm
Z-AXIS Movement: 1200 mm

Media

Main electronic connection: 220V / 60Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pallet size: 2 * 800 x 800 mm
- - Index degree: 1 degree
- - Spindle 2 step gear type
- - Magazine capacity: 90 ea
- - Tsc 70 bar
- - New bt50 tools 30 ea
- - Spindle air curtain
- - Spindle misting device system
- - Part program storage:4mb_1000 ea
- - Automatic power off
Qualitative Machine Benefits:
- - Automatic tool measurement: ts72r_renishaw
- - Data server 1gb
- - AiccⅡ (600 block)
- - Linear scale (x, y, z axis)
- - Shower coolant
- - Air conditioner
- - Mist collector
- - Air limit sensing
- - Box guideway type
- - Chip bucket

Extra information

- -Oil skimmer -Call right(LED 3 Step) -MPG handle -Manual books -CE MARK

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
