DOOSAN - Mynx 6500/50ES-MIL-DOO-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

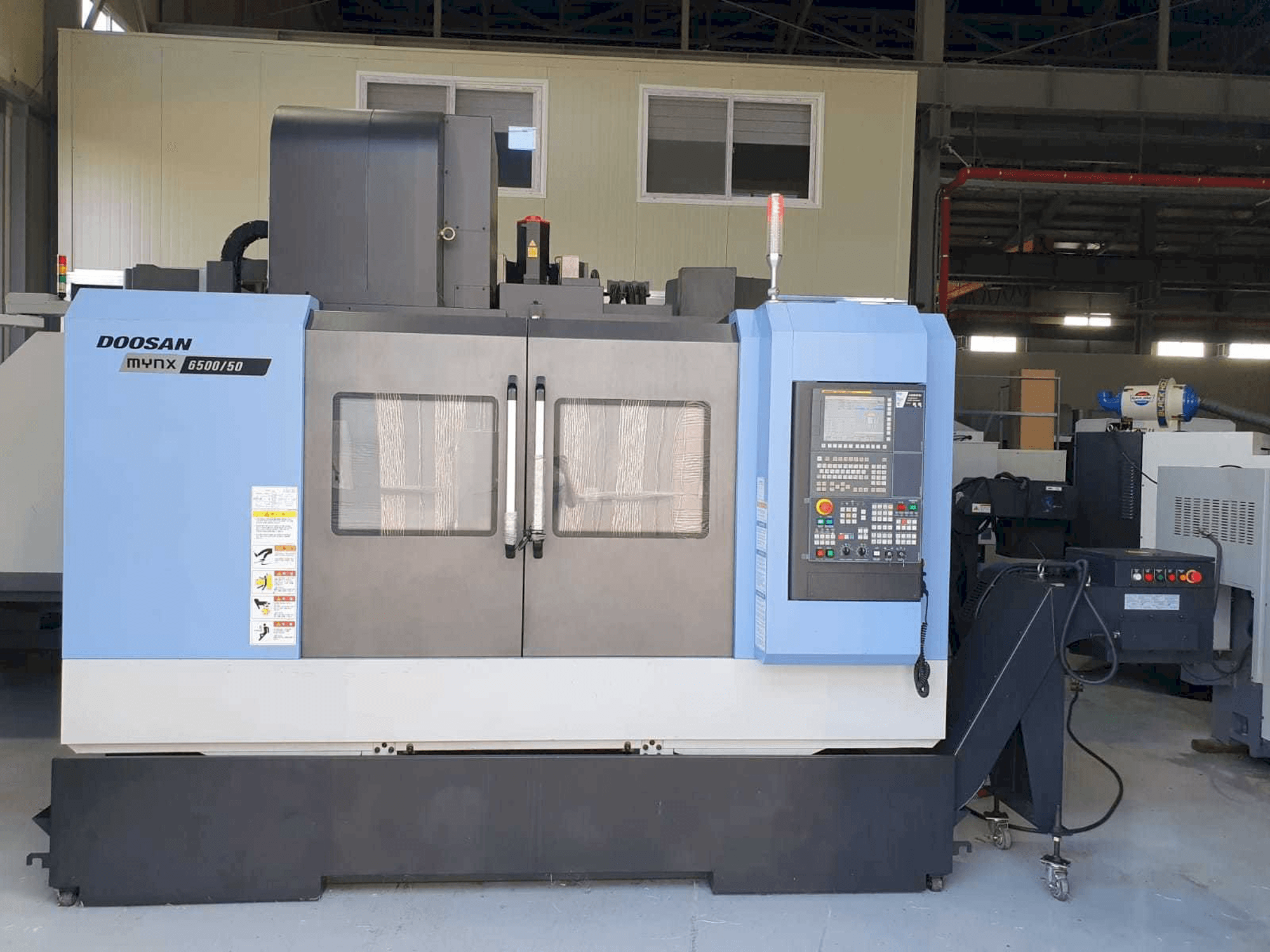

Doosan Mynx 6500/50 Milling machine

Show in original language

This Doosan Mynx 6500/50 Milling machine was made in the year 2018. It has been on for 1559 hours, of which 739 are cutting hours. It is operated through a FANUC i-Series control unit. The machine comes with a new 4th axis Tsudakoma and it works with a spindle speed up to 8000 rpm. Tailstock TL210M including.

Overview

brand: DOOSAN
year: 2018
MODEL: Mynx 6500/50
production hours: 739
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Mynx 6500/50

General Data

Machine weight: 9000 KG

Control Unit

Model: i-Series
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1270 MM
Y-AXIS Movement: 670 MM
Z-AXIS Movement: 625 MM

Table

Outer length: 1400 MM
Outer width: 670 MM

Tools

Type of tool holder: BT50

Media

Main electronic connection: 220V / 60HZ
Power consumption: 39.44 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Aicc 40 block
- - Spindle belt type
- - Tsc 20 bar
- - Oil skimmer (belt type)
- - Magazine tool capacity : 24ea
- - Call right(led 3 step)
- - Spindle head cooling system (oil cooler)
- - Guideway type:box guide
- - Mpg handle
Qualitative Machine Benefits:
- - *new 4th axis tsudakoma:
- - Splitter rwa320l
- - Shim for splitter: 45mm (with this we get a turning of the workpiece: 500 mm)
- - Tailstock tl210m
- - Shim tailstock: 45 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
