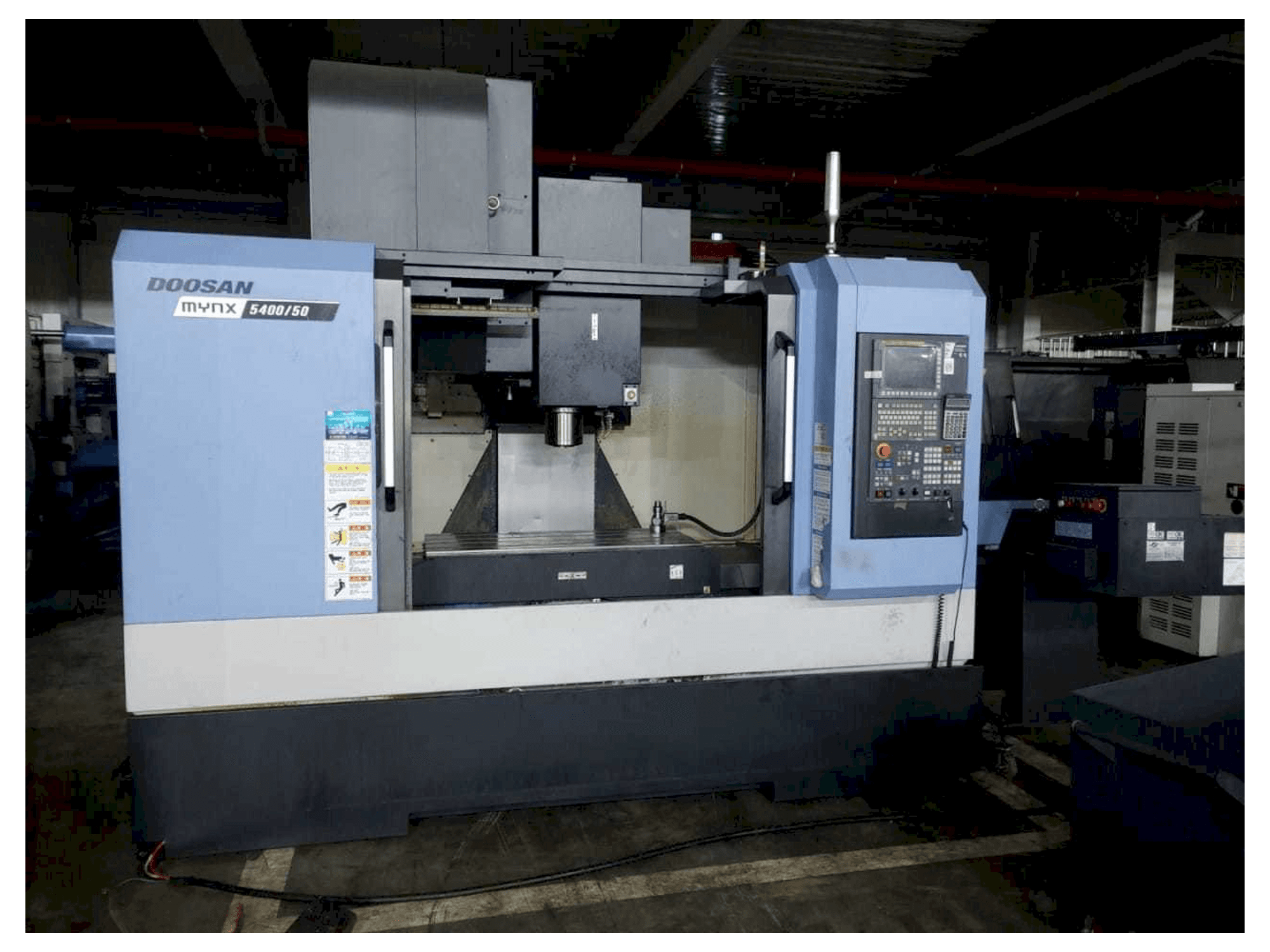

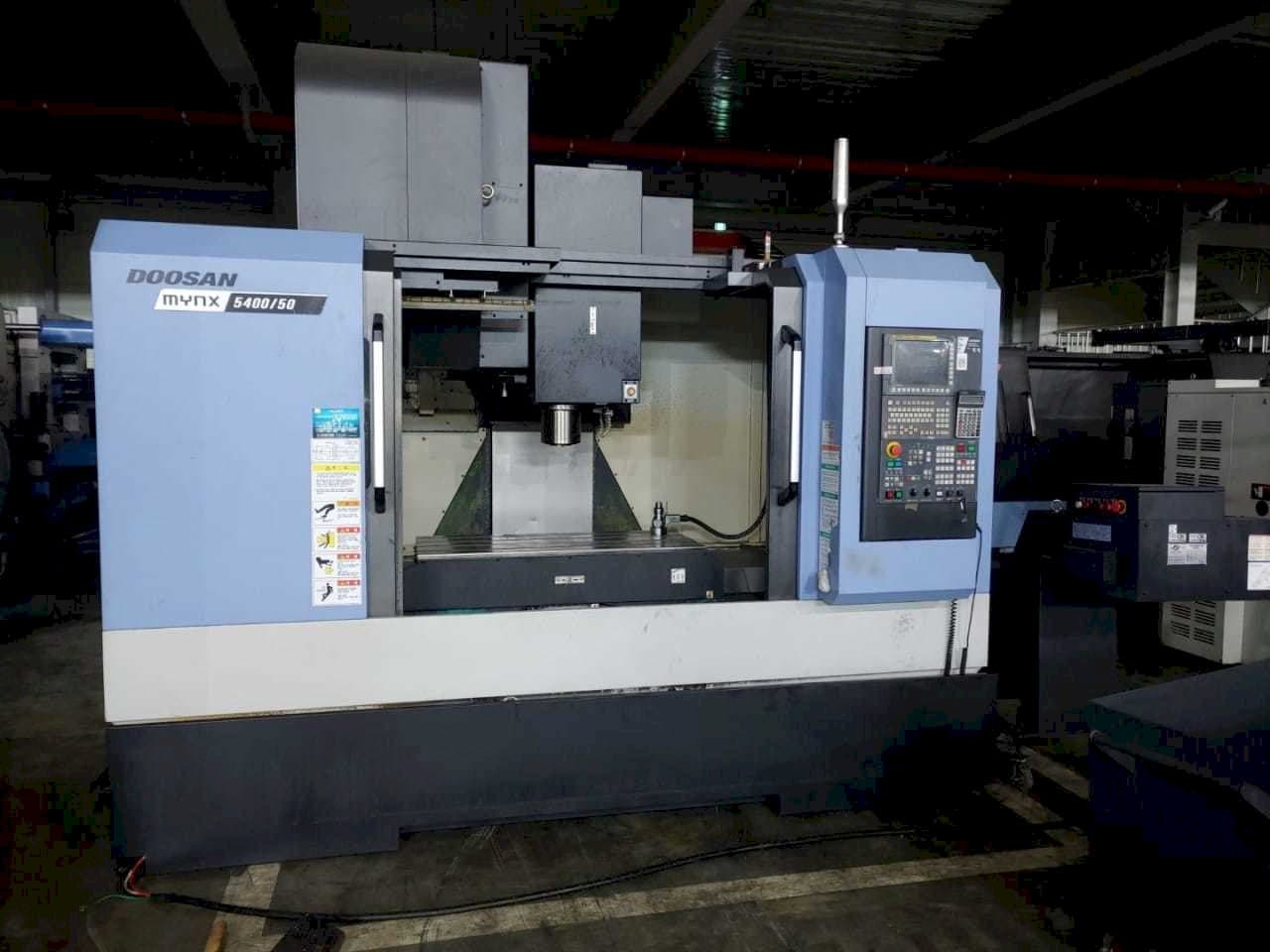

Doosan MYNX 5400/50 Vertical Machining Center

Show in original language

This Doosan MYNX 5400/50 Vertical Machining Center was manufactured in 2019. It has been power on for 3148 hours, of which 1882 are running hours and 2355 are cutting hours. It is operated through a FANUC i Series control unit. This 4 axis machine works with a spindle speed up to 6000 rpm. The machine comes with NC rotary table, a chip bucket and a new BT50 tool taper.

Overview

brand: DOOSAN
year: 2019
MODEL: MYNX 5400/50
production hours: 3148
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN MYNX 5400/50

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 6000 1/MIN
Tool taper: BT50
Number of axis: 4

Tools

Number of index: 10

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - S-320f8 nc rotary table
- - AiccⅡ_200 block
- - Data server 1gb
- - Tsc 20 bar
- - Chip bucket
- - Spindle belt type
- - Tool magazine capacity: 24 ea

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
