DOOSAN - HP5100IT-MIL-DOO-2008-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Doosan HP5100 Horizontal Machine Center

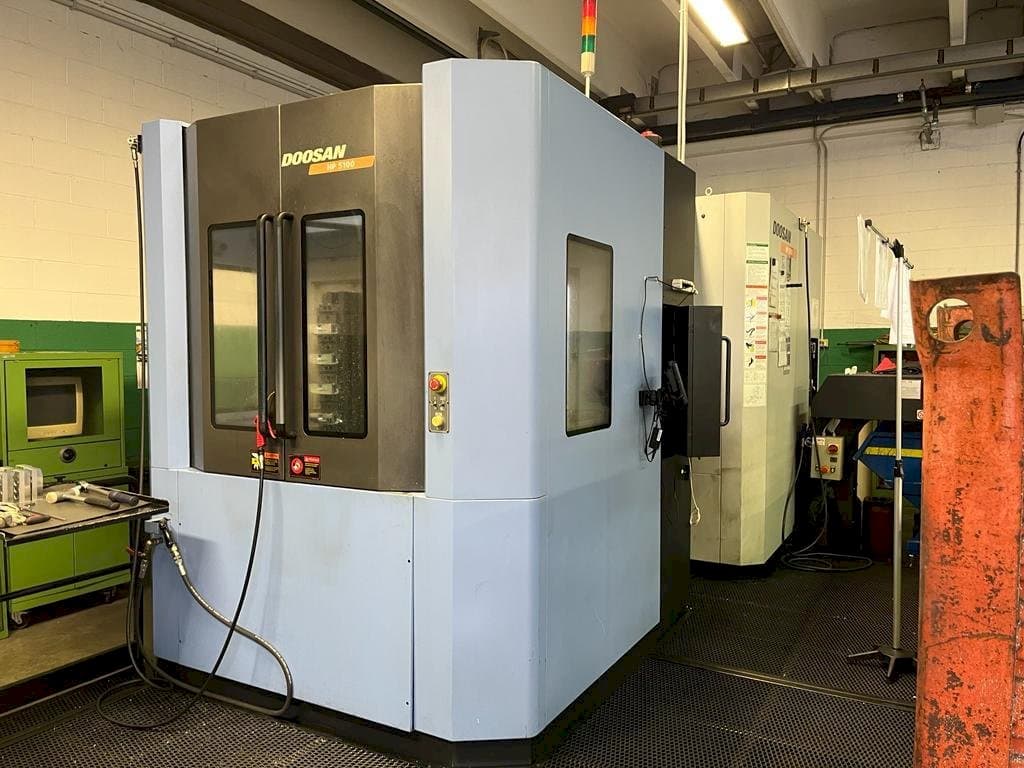

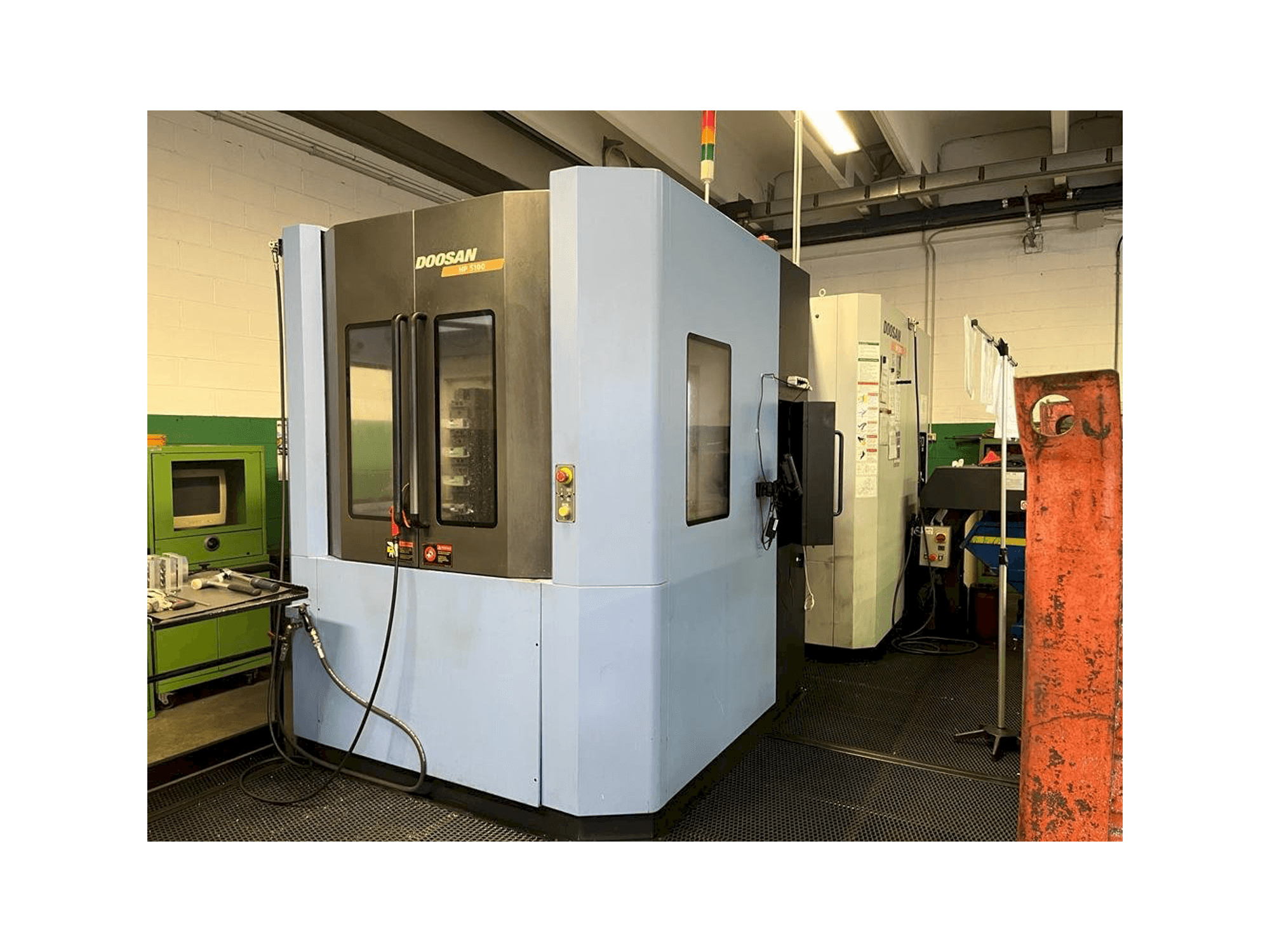

This Doosan HP5100 Horizontal Machine Center was built in the year 2008. It is equipped with a FANUC control unit. The machine has a spindle speed of 1 - 30000 rpm.
Overview
- brand: DOOSAN
- year: 2008
- MODEL: HP5100
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - DOOSAN HP5100
Control Unit
- Brand: FANUC
Main drive
- Spindle speed range: 1 - 30000 1/MIN
Movement
- X-AXIS Movement: 800 mm
- X-AXIS Rapid traverse: 60 m/min
- Y-AXIS Movement: 700 mm
- Y-AXIS Rapid traverse: 60 m/min
- Z-AXIS Rapid traverse: 60 m/min
Additional Information
- Technical Machine Benefits:
- - The axis motion system consists of a series of motors, ball screws, linear guides, etc. The axis guides are equipped with roller lm guides for high speed and high productivity
- - L axis: 750 mm
- - Work progress: 1/30000 mm/min
- - Ball screw diameter and pitch: ø40 x p20
- - Positioning precision: ±0. 005 / entire stroke
- - Repeatability: ±0. 002 mm
- - Measuring system: x, y, z axes; incremental encoder - b axis: absolute encoder mm/min
- - Distance spindle nose - pallet center: 150 - 900 mm
- - Distance between spindle axis and pallet surface: 50 - 750 mm
- - X axis: a30/3000i, y axis: a30b/3000i, z axis: a30/3000i, b axis (1st indexing): a12/3000is, b axis (rotation 0. 0019): a12/3000is, x axis: 7 kw, y axis: 7 kw, z axis: 7 kw, b axis (1st indexing): 2. 7 kw, b axis (0. 001° rotation): 2. 7 kw
- - You can change the engine type
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
