DOOSAN - HM8000KR-MIL-DOO-2014-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Doosan HM8000 Horizontal Machining Center

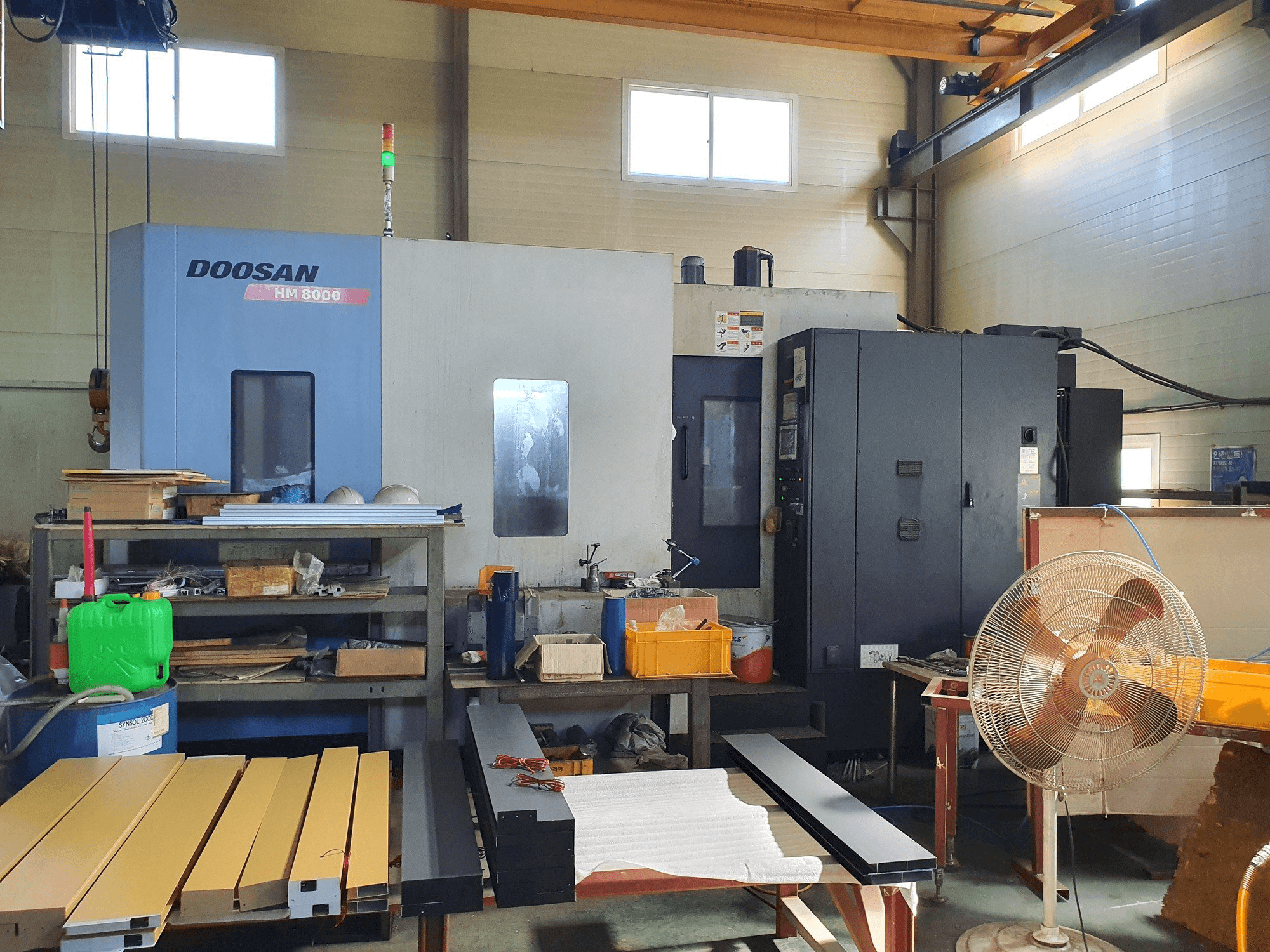

This Doosan HM8000 Horizontal Machining Center was built in Korea in the year 2014. It It is operated through a FANUC Series 31i-MODEL A control unit . This 3 axis machine perform with a spindle speed up to 6000 rpm.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: HM8000
- application type: Milling
- Location: South Korea
- machine type: Horizontal Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - DOOSAN HM8000
Control Unit
- Brand: FANUC
- Model: Series -31i MODEL A
Main drive
- Spindle speed range: 6000 1/MIN
- Tool taper: BT50
Movement
- X-AXIS Movement: 1400 mm
- Y-AXIS Movement: 1050 mm
- Z-AXIS Movement: 1200 mm
Table
- Outer length: 800 mm
- Outer width: 800 mm
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Dual table
- - Bucket
- - Spindel gear type
- - Tsc 20 bar
- - Magazine tool capacity : 40ea
- - Call right(led 3 step)
- - Guideway type:box guide
- - Mpg handle
- Qualitative Machine Benefits:
- - Manual books
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
