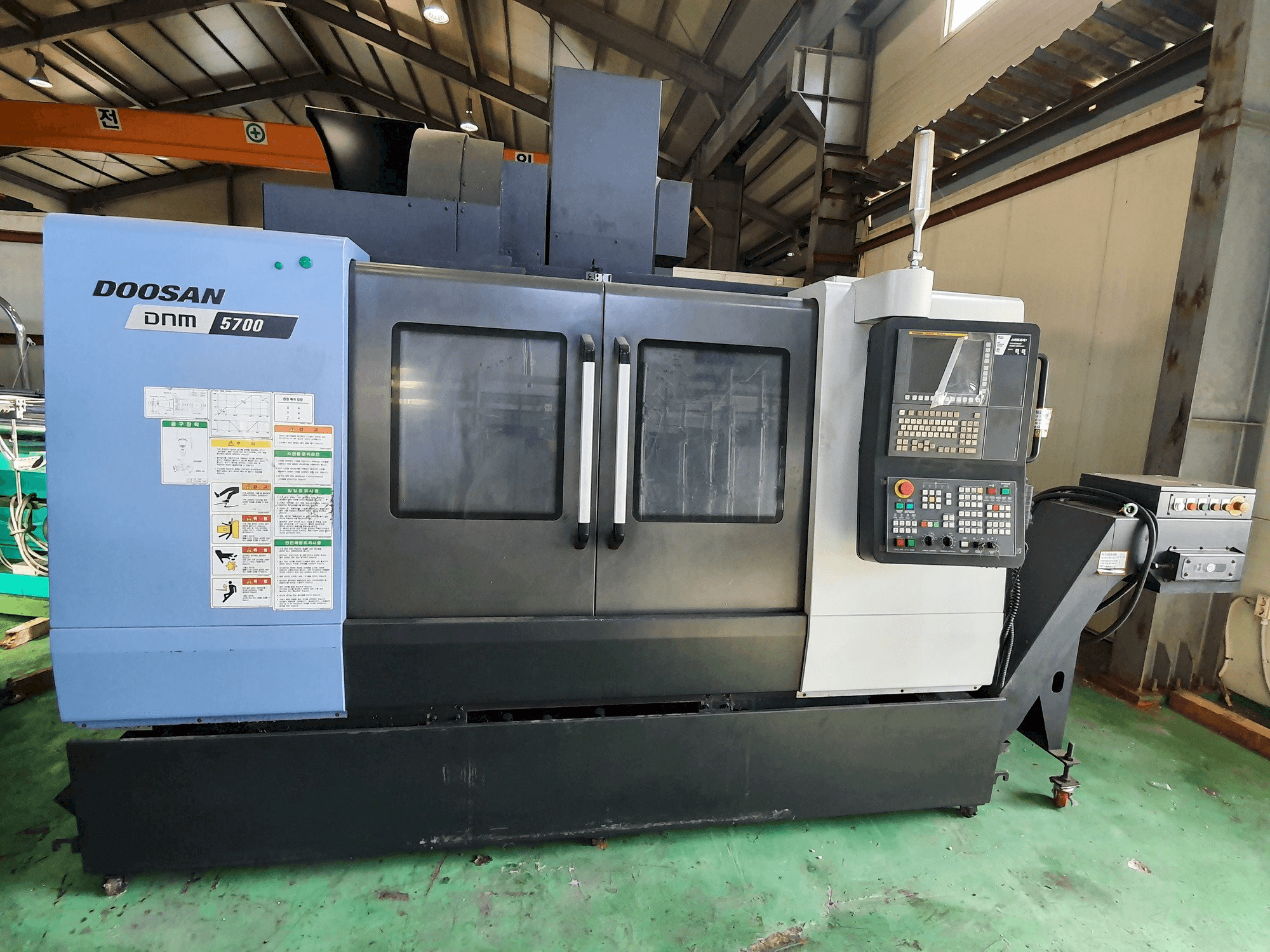

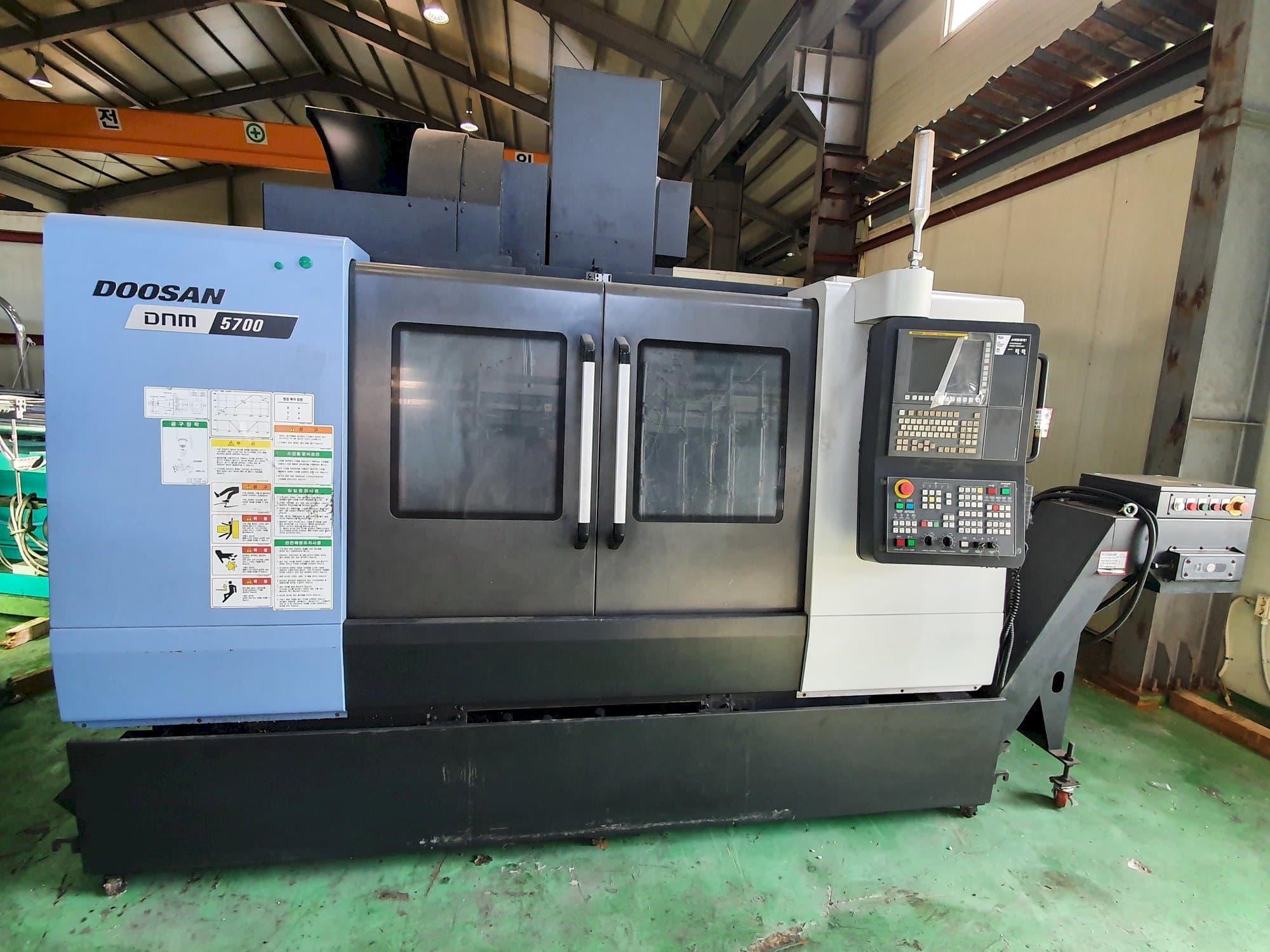

This Doosan DNM5700 Vertical Machining Center was manufactured in 2018. This 3 axis machine operates through a DOOSAN - FANUC i Series control unit. It has a spindle speed up to 8000 rpm. The machine comes with manual books.

Overview

brand: DOOSAN
year: 2018
MODEL: DNM5700
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DNM5700

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 570 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1300 mm
Outer width: 570 mm

Tools

Type of tool holder: BT40

Media

Main electronic connection: 220V - 60Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ce mark
- - Air blow
- - Oil skimmer
- - Tsc 20 bar
- - Magazine tool capacity : 30ea
- - Call right(led 3 step)
- - Guideway type: lm guide
- - Mpg handle
- - Manual books

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
