➤ Doosan DNM350/5AX - Vertical Machining Center For Sale

Show in original language

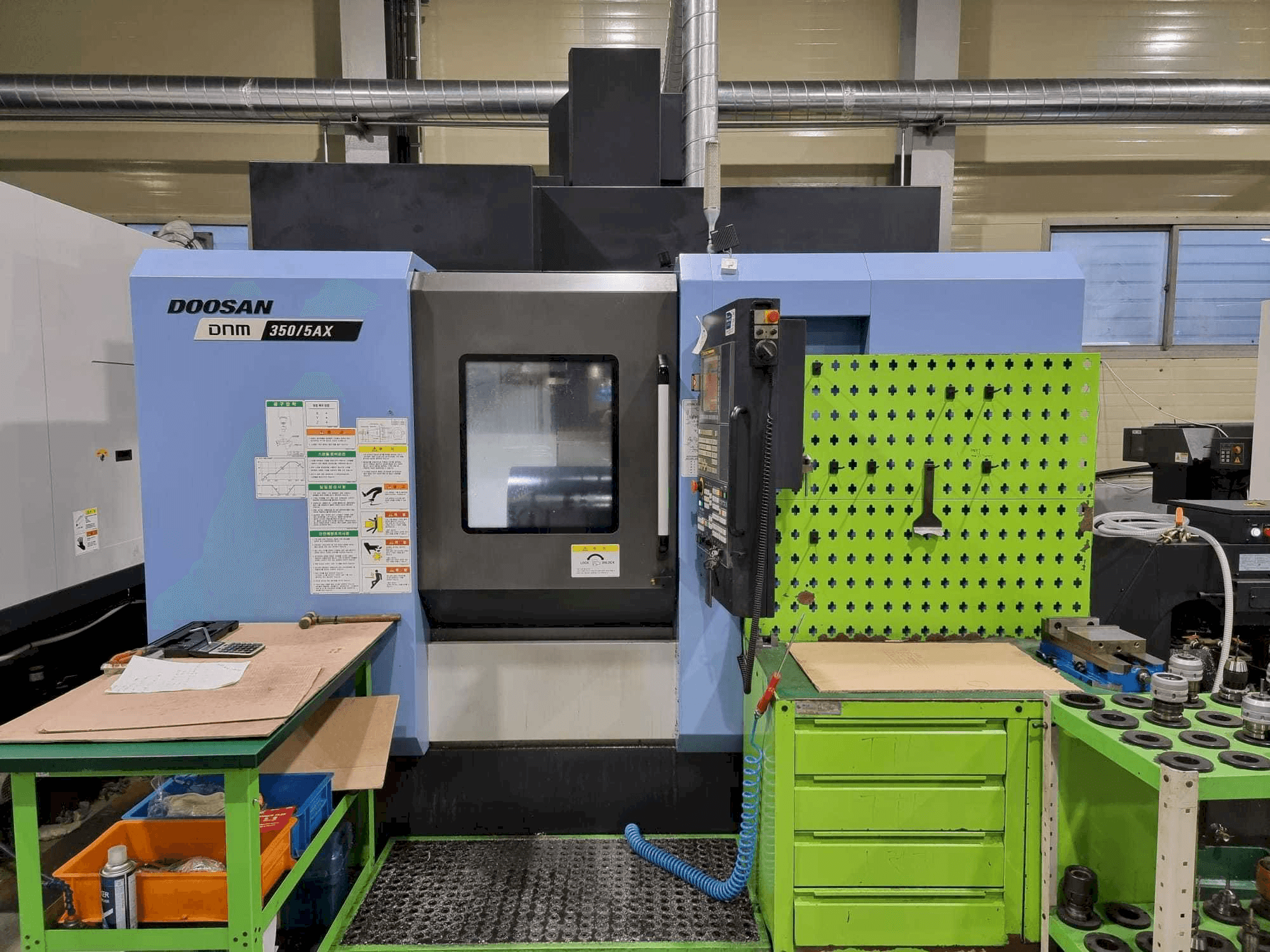

This Doosan DNM350/5AX Vertical Machining Center was manufactured in South Korea in the year 2018. This 5 axis machine operates through aa FANUC-i control unit. It incorporates a spindle speed up to 12000 rpm and a table size of 350 mm. This machine includes its manual books.

Overview

brand: DOOSAN
year: 2018
MODEL: DNM350/5AX
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DNM350/5AX

Control Unit

Model: i series
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: BT40
Number of axis: 5

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 655 mm
Z-AXIS Movement: 500 mm
A-AXIS Movement: 150 (+30 ~ -120) MM
C-AXIS Movement: 360 MM

Workpiece

Workpiece drm over bed: 400 mm
Workpiece drm over support: 335mm

Table

Outer length: 350 mm
Table load: 250 kg

Tools

Number of index: 30ea

Media

Main electronic connection: 220V, 60Hz
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle head cooling system
- - Direct spindle type
- - Tsc 20 bar
- - Air blower
- - Spindle air curtain
- - Ts27r_renishaw
- - Data server 1gb
- - Helical interpolation
- - Retraction for rigid tapping
- - Automatic tool measurement
Qualitative Machine Benefits:
- - Guideway type:lm guide
- - Call right(led 3 step)
- - Mpg handle
- - Manual books
- - Ce mark

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
