- Doosan DNM350/5AX Vertical Machining Center

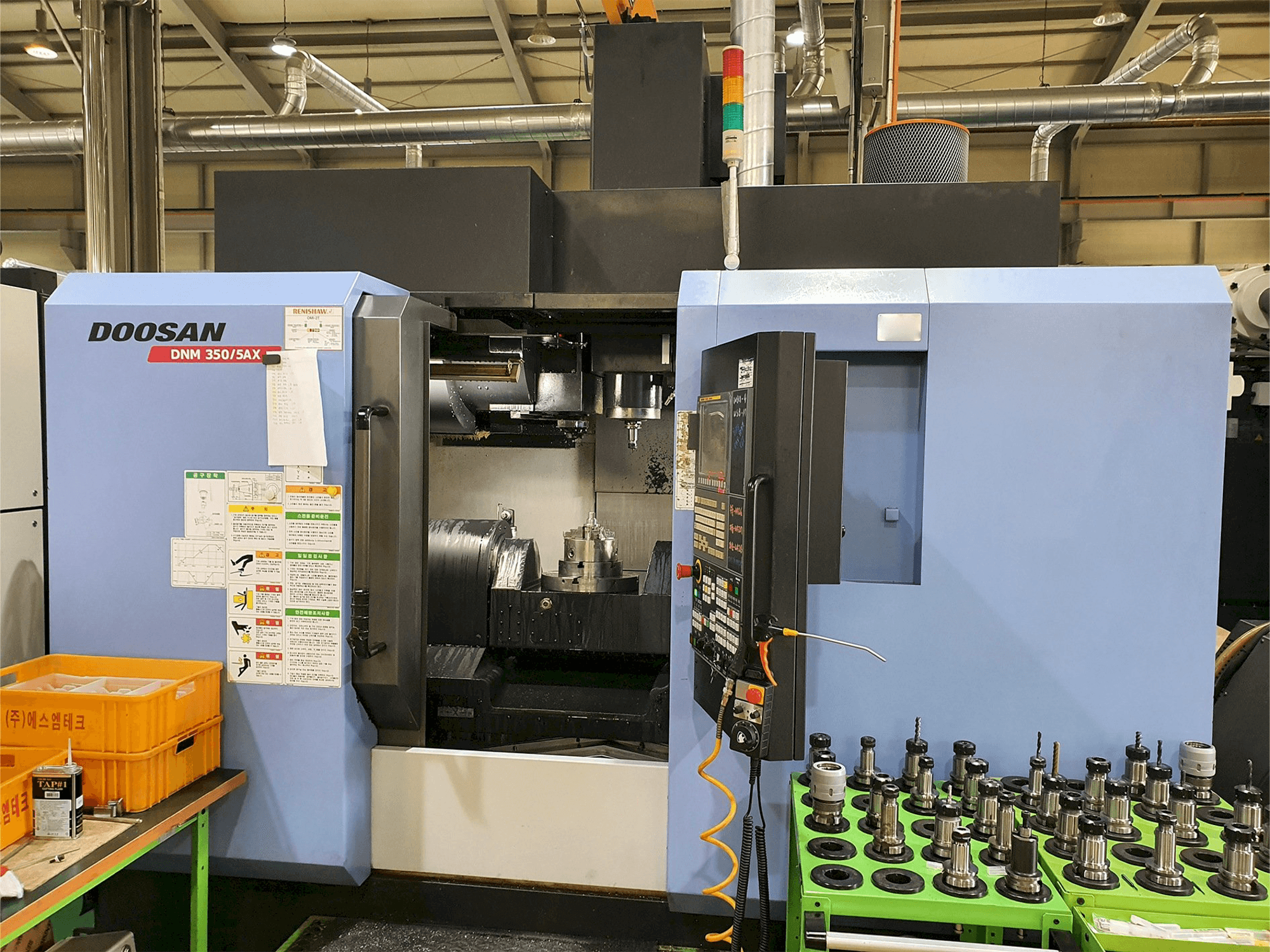

This Doosan DNM350/5AX Vertical Machining Center was built in the year 2015. It is equipped with a FANUC 31i-B5 control unit. This 5 axis machine operates with a spindle speed up to 12000 rpm. It includes an automatic tool measurement and manual books.
Overview
- brand: DOOSAN
- year: 2015
- MODEL: DNM350/5AX
- application type: Milling
- Location: South Korea
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - DOOSAN DNM350/5AX
Control Unit
- Brand: FANUC
- Model: 31i-B5
Main drive
- Spindle speed range: 12000 1/MIN
- Tool taper: BT40
- Number of axis: 5
Movement
- X-AXIS Movement: 400 mm
- Y-AXIS Movement: 655 mm
- Z-AXIS Movement: 500 mm
Table
- Table load: 250 KG
Media
- Main electronic connection: 220V / 60Hz
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - A-axis deg. : 150 (+30 ~ -120)
- - C-axis deg. : 360
- - Max. Workpiece swing diameter x height : Ø400 x 335mm
- - Table size: Ø350 mm
- - Oil cooler
- - Direct spindle type
- - Magazine tool capacity : 40ea
- - Tsc 20 bar
- - Linear scale (x, y, z, a, c)
- - Automatic tool measurement
- Qualitative Machine Benefits:
- - Guideway type:lm guide
- - Call right(led 3 step)
- - Mpg handle
- - Manual books
- - Ce mark
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
