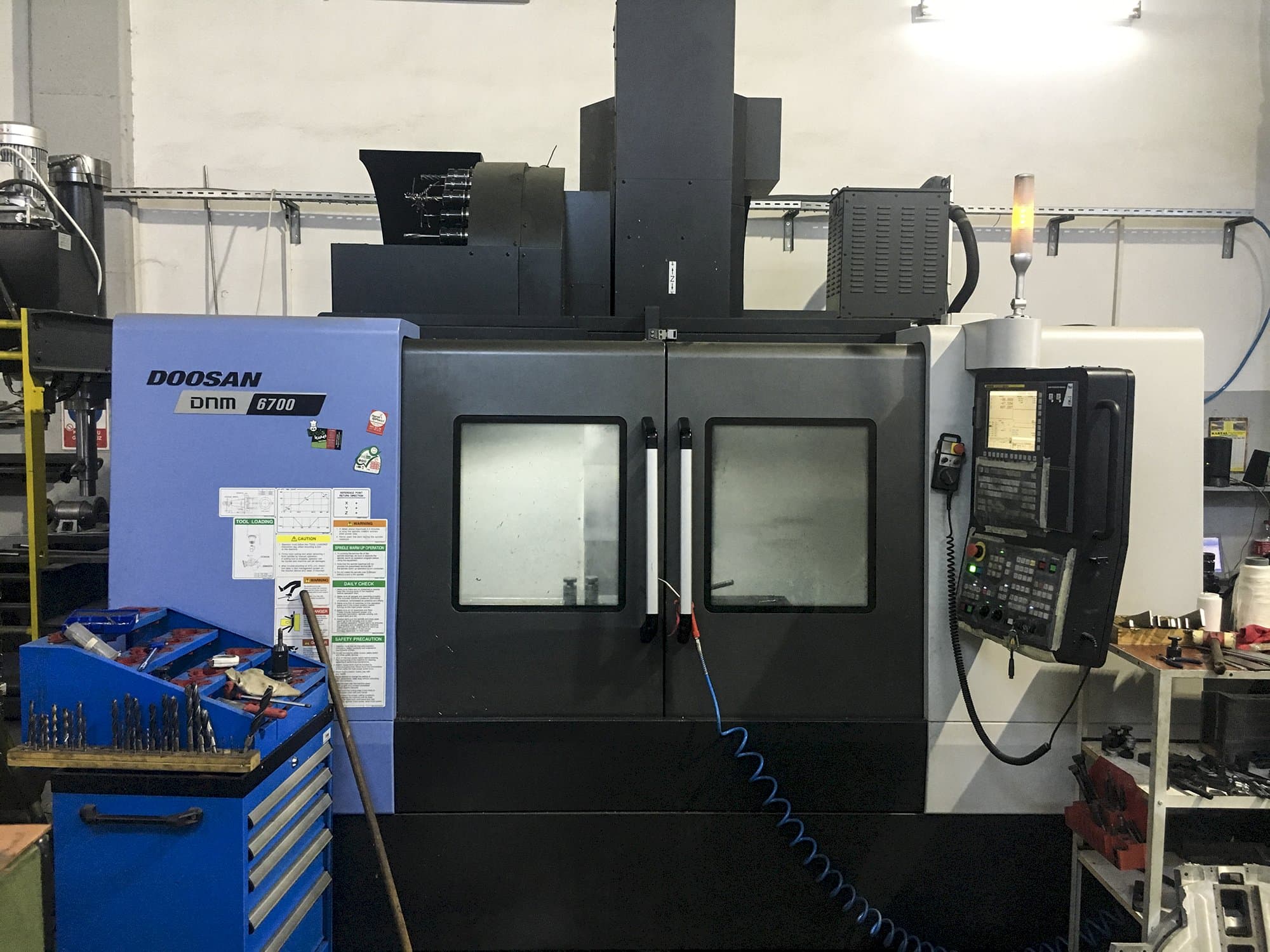

Doosan DNM 6700 Vertical Machining Center

Show in original language

This Doosan DNM 6700 Vertical Machining Center from 2017 was fabricated in South Korea and has an overall production time of only 947 working hours. Operated thorugh a FANUC iSeries Control unit, this highly reliable and flexible model with big table and direct drive spindle is in perfect condition with little working hours.

Overview

brand: DOOSAN
year: 2017
MODEL: DNM 6700
production hours: 947
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DNM 6700

General Data

Measurements width: 2597 mm
Measurements depth: 3350 mm
Measurements height: 3120 mm
Machine weight: 8500 kg

Control Unit

Brand: FANUC
Model: i Series
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/min

Movement

X-AXIS Movement: 1300 mm
Y-AXIS Movement: 670 mm
Z-AXIS Movement: 625 mm

Workpiece

Workpiece weight: 1300 kg

Table

Outer length: 1500 mm
Outer width: 670 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool length: 300 mm
Type of tool holder: BT40

Media

Main electronic connection: 220 V
Power consumption: 33 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
