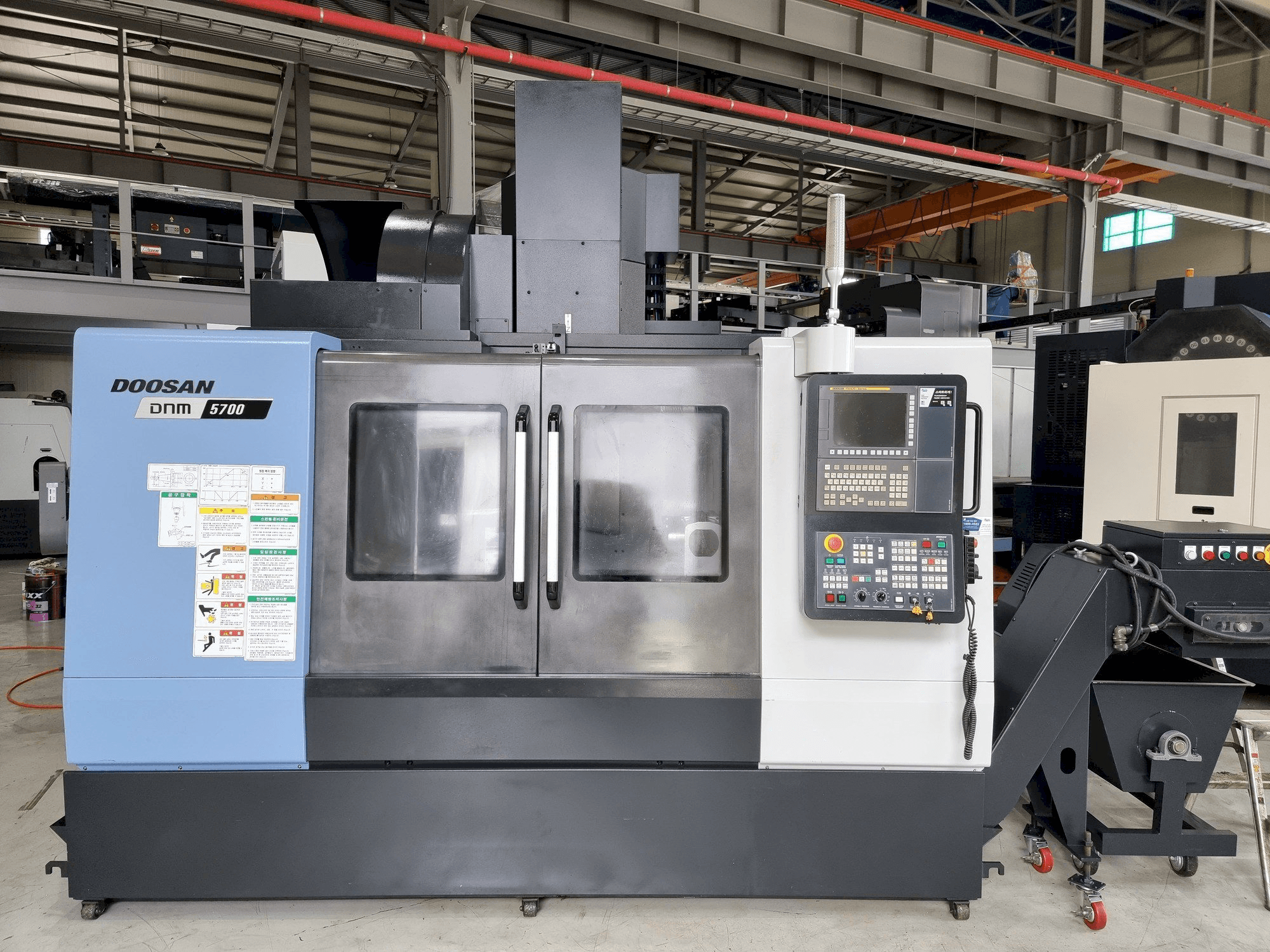

Doosan DNM 5700 Vertical Machining Center

Show in original language

This Doosan DNM 5700 Vertical Machining Center was built in Korea in the year 2018. It has been power on for 2969 hours, of which 1722 hours are running time, and 1504 hours are cutting time. This 4 axis machine equipped with a FANUC i Series control unit. It incorporates a spindle speed up to 8000 rpm and a table size of 1300 x 570 mm. This machine includes its manual books.

Overview

brand: DOOSAN
year: 2018
MODEL: DNM 5700
production hours: 2969
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DNM 5700

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 570 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1300 mm
Outer width: 570 mm

Media

Main electronic connection: 220 V 60 Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Nc rotary table:s-200f4 (samchully)
- - Tsc 20 bar
- - Tool taper: bt40
- - Spindle direct type
- - Magazine capacity : 30ea
- - Lm guideway type
- - Oil skimmer
- - Call right (led 3 step)
- - Mpg handle
- - Ce mark
Qualitative Machine Benefits:
- - Manual books
- - AiccⅡ_200 block
- - Transformer -sd card and usb
- - Condition of the machine like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
