- Doosan DBC250II Boring Machine

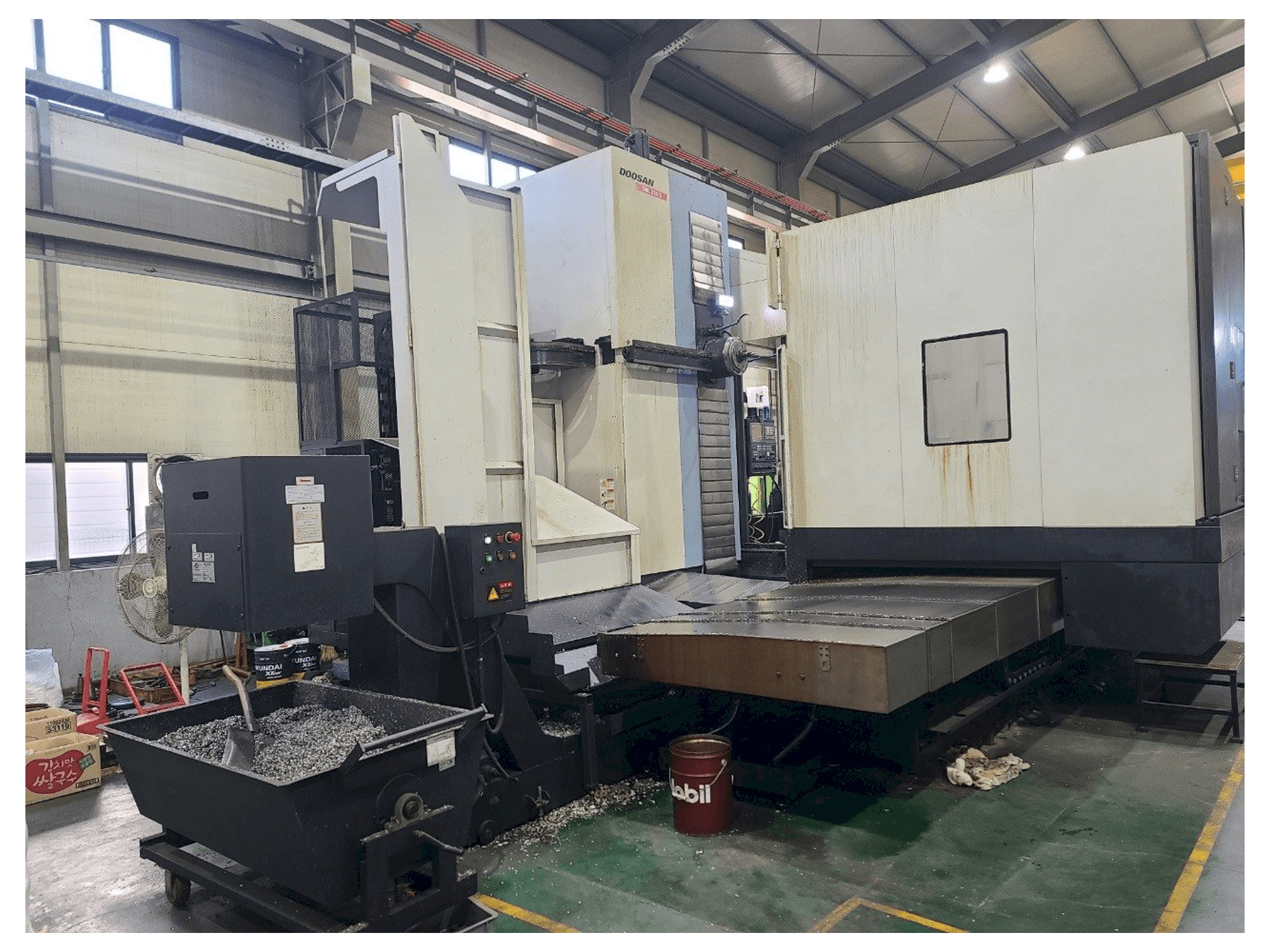

This Doosan DBC250II Boring Machine was built in Korea in the year 2014. It has been on for 19079 hours of which 7483 are cutting hours. This machine is equipped with a FANUC-31i control unit. It has a spindle speed up to 6000 rpm and a table of dimensions 1600 x 1800 mm. Tools included.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: DBC250II
- production hours: 19079
- application type: Other Machine Tools
- Location: South Korea
- machine type: Boring Machine (Metal)
- availability: Sold
- control unit brand: FANUC
Technical Information - DOOSAN DBC250II
Control Unit
- Brand: FANUC
- Model: 31i
Main drive
- Spindle speed range: 6000 1/MIN
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 2000 mm
- Z-AXIS Movement: 1600 mm
- W-Axis Movement: 500 mm
Table
- Outer length: 1600 mm
- Outer width: 1800 mm
Tools
- Number of index: 40ea
- Type of tool holder: BT50
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Index degree:0. 001 degree
- - Cover type : full cover type
- - 220v, 60hz
- - New bt50 tools included (10 ea)
- - Spindle direct type
- - Dsqii (data server 1gb & aiccⅡ 200 block)
- - Spindle oil cooler
- - Automatic power off
- - Box guideway type
- Qualitative Machine Benefits:
- - Call right(led 3 step)
- - Oil skimmer
- - Flood coolant pump
- - Coolant gun
- - Auto power off
- - Mpg handle
- - Manual books
- - Ce mark
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
