DOOSAN - DBC 110SKR-BOR-DOO-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

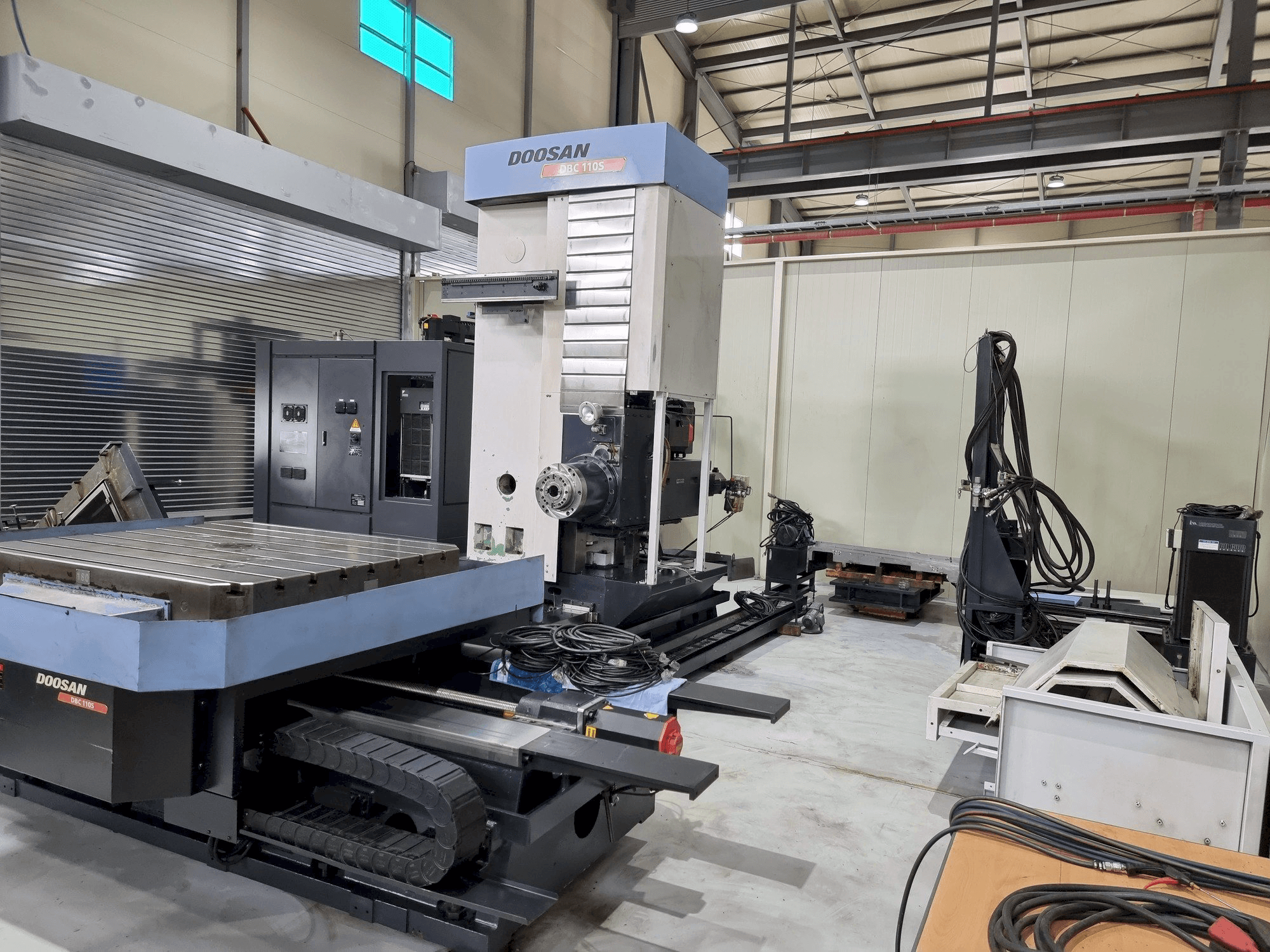

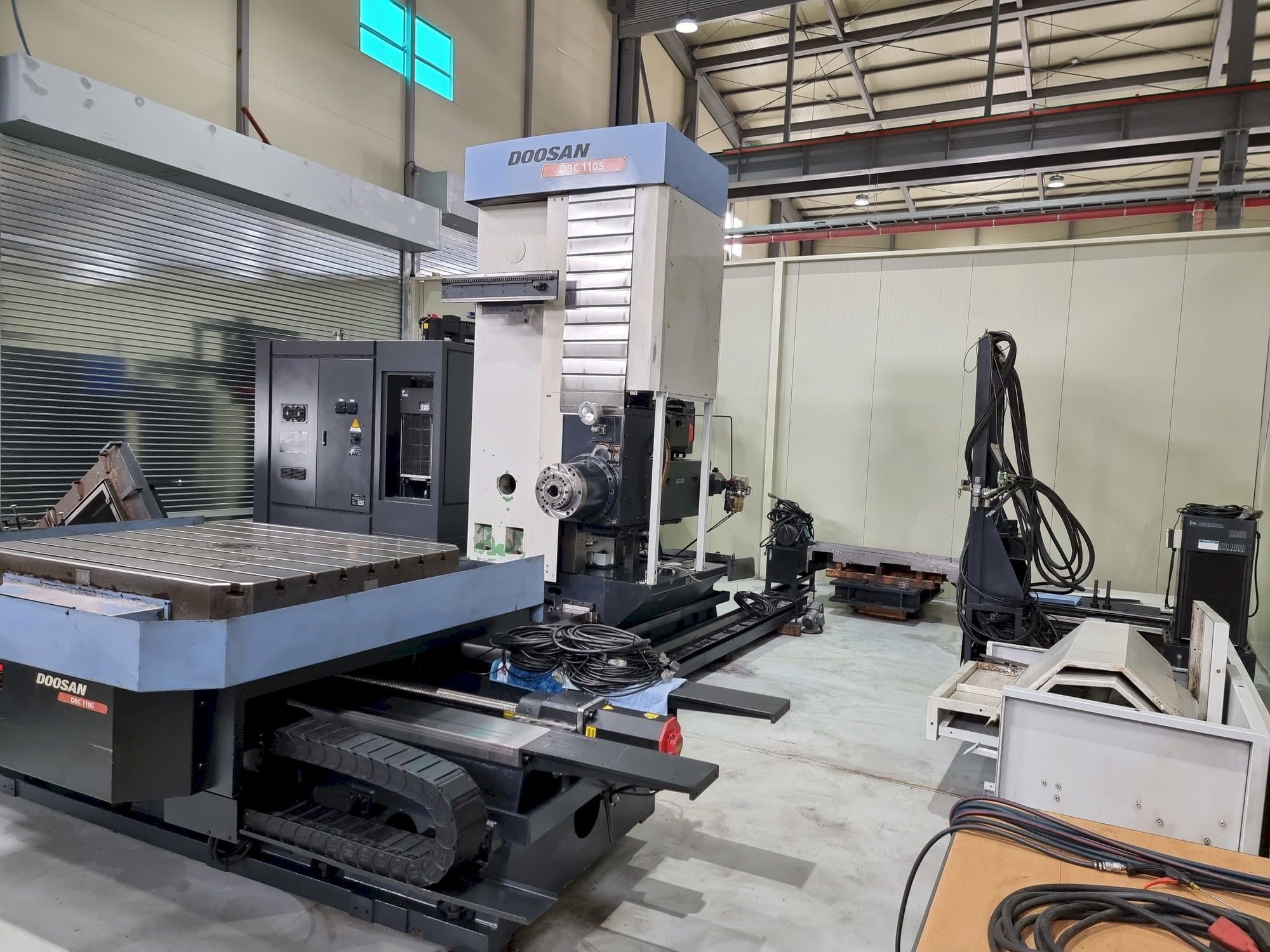

This Doosan DBC 110S boring machine was manufactured in the year 2011. It is equipped with a FANUC Series 32i-MODEL A control unit. This machine can work with a spindle speed up to 3000 rpm and a boring spindle diameter 110 mm. It includes its manual books.

Overview

brand: DOOSAN
year: 2011
MODEL: DBC 110S
application type: Other Machine Tools
Location: South Korea
machine type: Boring Machine (Metal)
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DBC 110S

Control Unit

Model: Series 32i-MODEL A
Brand: FANUC

Main drive

Spindle speed range: 3000 1/MIN
Spindle bore: 110 mm

Movement

X-AXIS Movement: 2000 MM
Y-AXIS Movement: 1500 MM
Z-AXIS Movement: 1200 MM
W-Axis Movement: 500 mm

Table

Outer length: 1600 MM
Outer width: 1400 mm

Tools

Type of tool holder: BT50

Media

Main electronic connection: 220 V 60 Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from spindle nose to table top: 0~1500 mm
- - Distance from spindle nose to table center: 550~1750 mm
- - Indexing: 0. 001 degree
- - 2 step gear type
- - Magazine tool capacity: 40ea
- - Call right (led 3 step)
- - Mpg handle
- - Ce mark
Qualitative Machine Benefits:
- - Manual books

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
