DONAU DANUSYS 1507 Vertical Machining Center

Show in original language

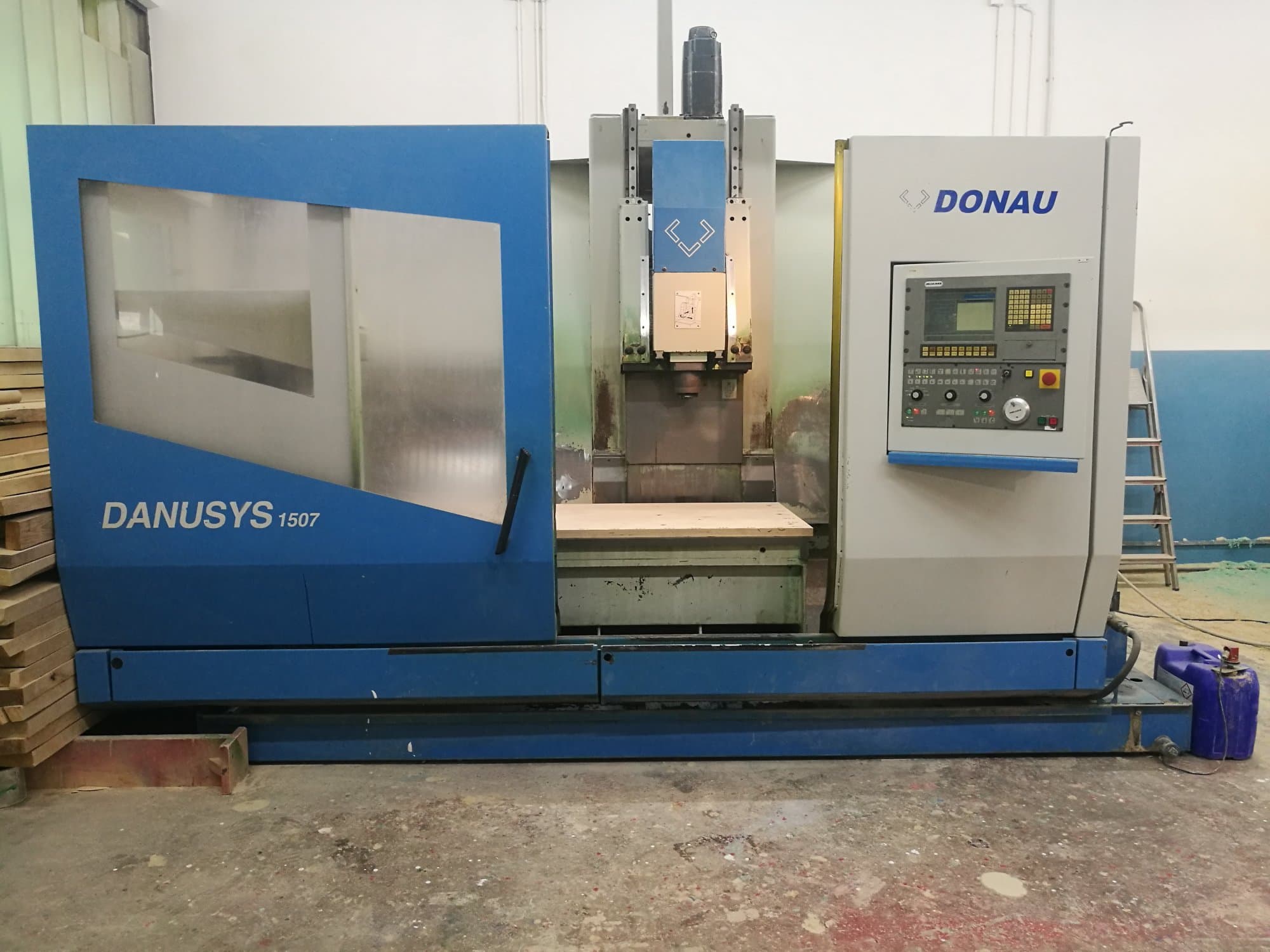

This DONAU DANUSYS 1507 Vertical Machining Center, made in Germany in 1999, has a working history of approximately 50000 production hours. Equipped with a MITSUBISHI CNC MELDAS 500M Control unit and with the spindle replaced end of 2017, this machine has mainly worked with copper during the past and lately exclusively with wood, producing molds for foundries.

Overview

brand: DONAU
year: 1999
MODEL: DANUSYS 1507
production hours: 50000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MITSUBISHI

Technical Information - DONAU DANUSYS 1507

General Data

Measurements width: 3900 mm
Measurements depth: 2100 mm
Measurements height: 3200 mm
Machine weight: 5500 kg

Control Unit

Model: MELDAS 500M
Brand: MITSUBISHI

Main drive

Number of spindles: 1
Spindle speed range: 4200 1/min

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 700 mm

Table

Outer length: 1500 mm
Outer width: 700 mm

Tools

Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V
Power consumption: 20 kVA

Additional equipment

- Automatic tool changer for 16 positions SK40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
