- DN SOLUTIONS NHP 5000 Horizontal Machining center

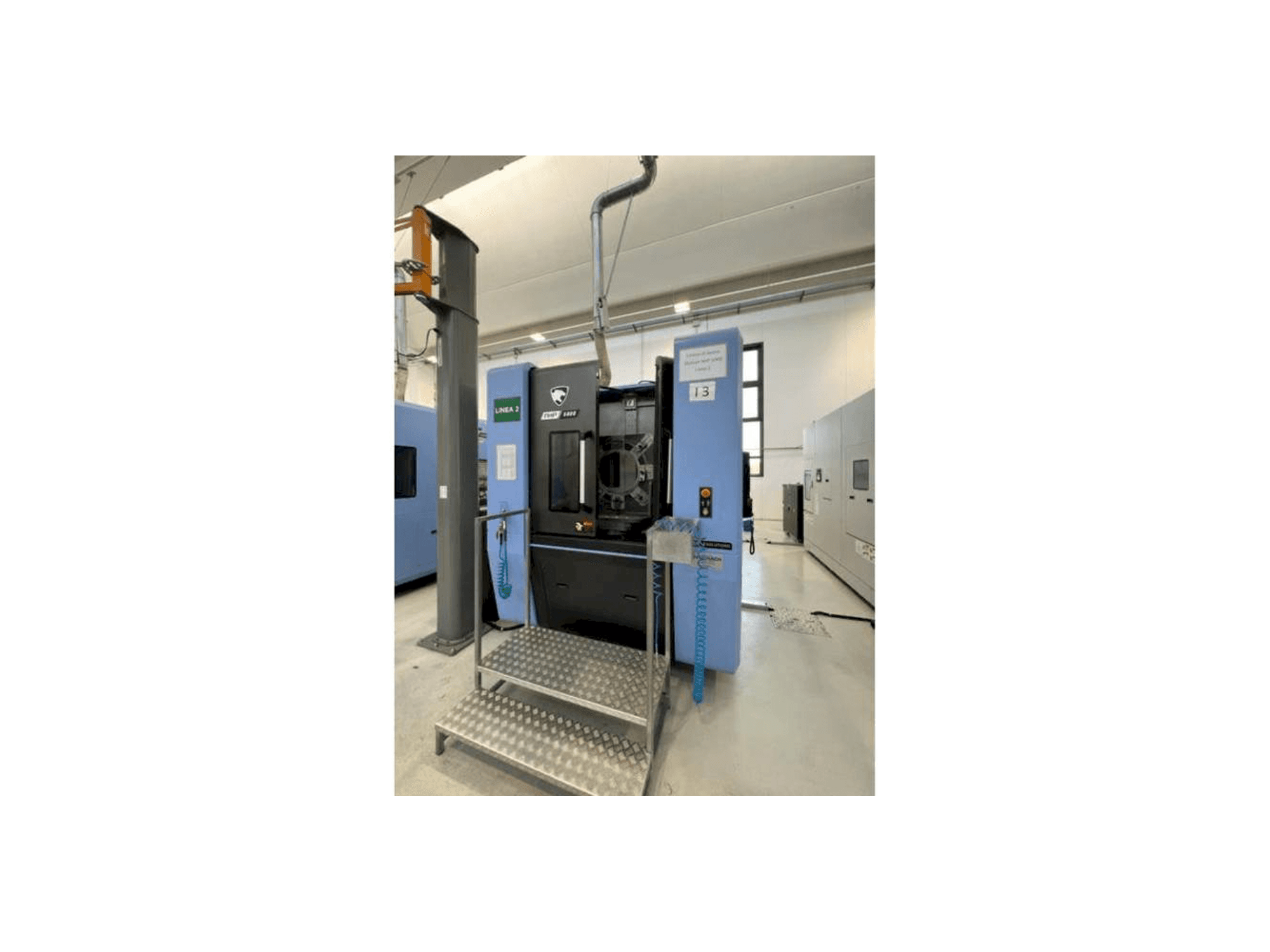

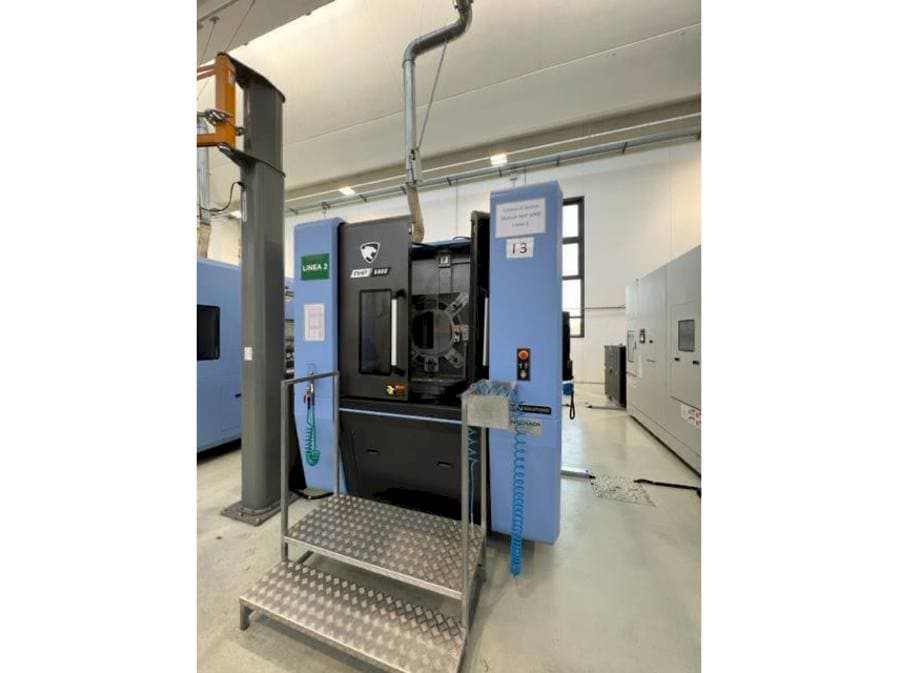

This DN SOLUTIONS NHP 5000 Horizontal Machining center was manufactured in the year 2021. It is equipped with a FANUC 31I-MODEL B control unit and has 4 axis. The machine has a spindle speed of 15000 rpm.
Overview
- brand: DN SOLUTIONS
- year: 2021
- MODEL: NHP 5000
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
- availability: Immediately
- control unit brand: FANUC
Technical Information - DN SOLUTIONS NHP 5000
General Data
- Measurements width: 2680 mm
- Measurements depth: 5450 mm
- Measurements height: 2880 mm
- Machine weight: 11500 kg
Control Unit
- Model: 31I-MODEL B
- Brand: FANUC
Main drive
- Spindle speed range: 15000 1/MIN
- Tool taper: ISO 40
- Number of axis: 4
Movement
- X-AXIS Movement: 730 mm
- Y-AXIS Movement: 730 mm
- Z-AXIS Movement: 880 mm
Table
- Outer length: 500 mm
- Outer width: 500 mm
Tools
- Slots in storage: 60
Additional Information
- Technical Machine Benefits:
- - Max. Weight piece (spindle): 500 kg
- - Torque (cont. / 10 min) (spindle): 150 nm
- - Rapid x-axis travel (rapid travel): 60000
- - Y-axis rapid traverse (rapid traverse): 60000
- - Z-axis rapid traverse (rapid traverse): 60000
- - Max. Diameter tool (atc warehouse): d. 75 d. 170
- - Max. Length tool (from reference line) (atc magazine): 550
- - Tool selection method (atc magazine): fixed
- - Max. Weight tool (atc magazine): 12
- - Tool change time (atc magazine): 2. 8
- Qualitative Machine Benefits:
- - Pressure (refrigerant): 70 bar
- - Cooling tank (refrigerant): 500l
- - Apc 2 stations
- - Running x730 x y730 x z880 (voltage: d. 800x1000)
- - Iso 50 electric spindle with double contact flange, oil cooled
- - Pallet capacity: 500 kg
- - External air blow adjustable “m” function
- - Internal refrigerant supply at 70 bar
- - Preparation of the measurement probe for zeroing of the piece with renishaw rmp60 cycles (radio broadcast) -data server 2gb, fanuc aicc 2 software (high speed for molds and 3d figures, 1ooo blocks ahead)
- - Communication with ports and usb + ethernet
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
