DMG MORI - NHX 4000DE-MIL-DMG-2017-00004

Name: DMG MORI NHX 4000
Brand: DMG MORI
SKU: DE-MIL-DMG-2017-00004
Price: 14996700 INR
Availability: InStock

Rs. 14,996,700

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI NHX 4000 For Sale | gindumac.com

Show in original language

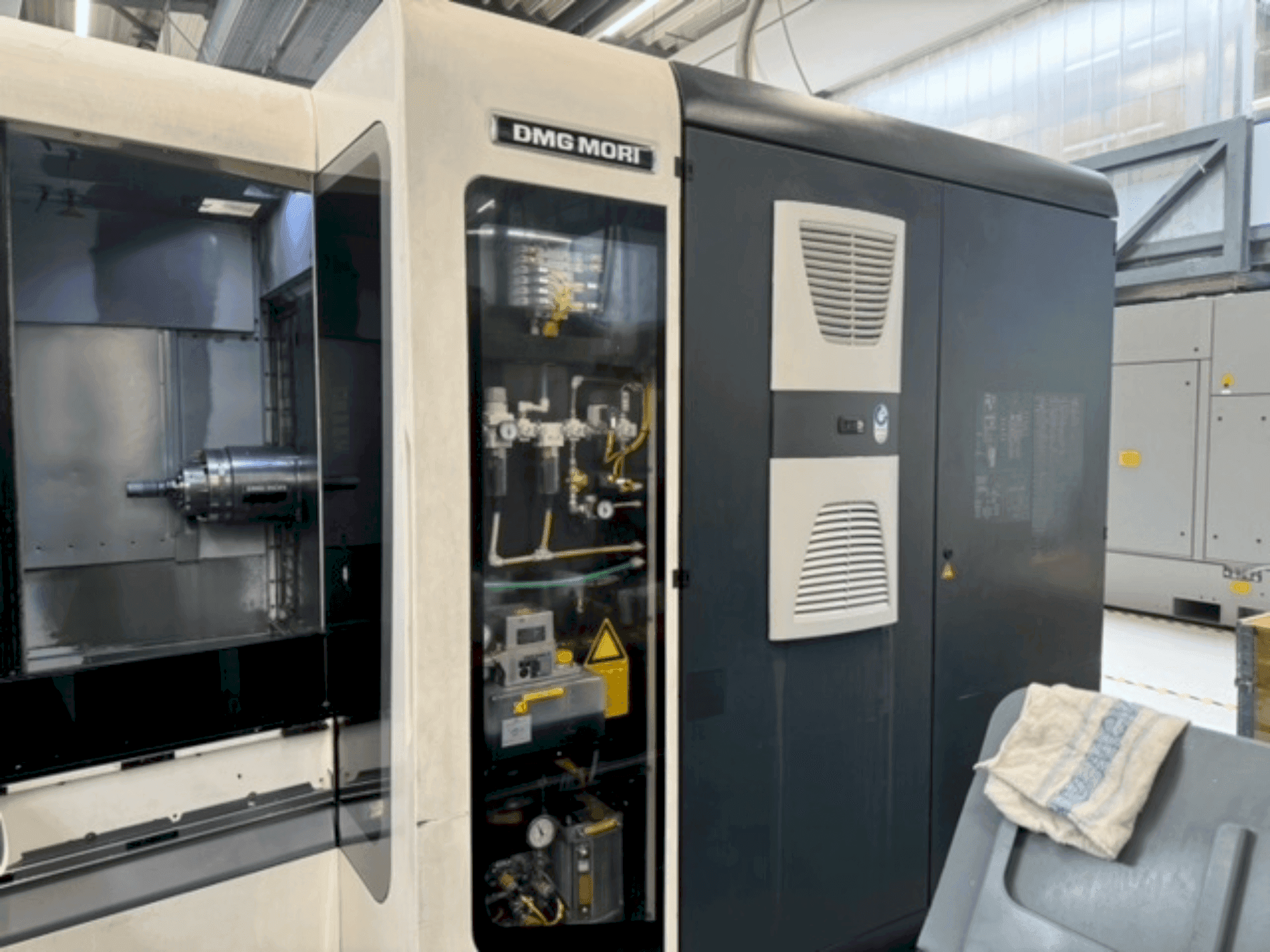

This 4-axis DMG MORI NHX 4000 was manufactured in 2017. A robust horizontal machining center, it features a travel range of 560x560x660 mm and a clamping surface of 400x400 mm. Equipped with a high-speed drive spindle at 15,000 min-1 and a 40-tool magazine, it ensures efficient operations. The machine includes a CELOS® control system with Siemens 840D sl Operate, enhancing usability with a multi-touch screen. For more information about this horizontal machining center, please reach out to us.

Overview

brand: DMG MORI
year: 2017
MODEL: NHX 4000
application type: Milling
Location: Austria
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - DMG MORI NHX 4000

Control Unit

Model: 840D sl Operate with CELOS®
Brand: SIEMENS

Main drive

Spindle speed range: 20000 min-1 1/MIN
Spindle motor power: 21 / 16 kW (40 / 100 ED)
Tool taper: BT40

Movement

X-AXIS Movement: 560 MM
Y-AXIS Movement: 560 MM
Z-AXIS Movement: 660 MM

Media

Chip conveyor: Yes

Additional equipment

- Two pallets with threaded holes
- Automatic turning APC with 2 stations
- Direct distance measuring system
- Rotating viewing window in the work area door
- Coolant rinsing gun
- I/F for oil mist separator
- Knoll KF110/700 compact filter system
- Spindle sensor measuring system with optical signal transmission / Cooling unit for spindle
- Tool breakage control system in the tool magazine
- Signal light (red, yellow, green, blue)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Technical machine benefits: apps for machine operation and data management, nc table with direct drive motor technology, random system tool slot assignment
- - Clamping surface: 400x400 mm
- - Indexing table angle 1º
- - Tool holder: hsk-a63
- - Torque: 130 nm / 86 nm (40 / 100 % duty cycle)
- - Max. Tool diameter: 70 mm (neighboring tools), 170 mm (occupied neighboring places)
- - Max. Tool length: 450 mm / max. Tool weight: 12 kg / metric setting

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
