- DMG MORI DMU 75 monoBLOCK

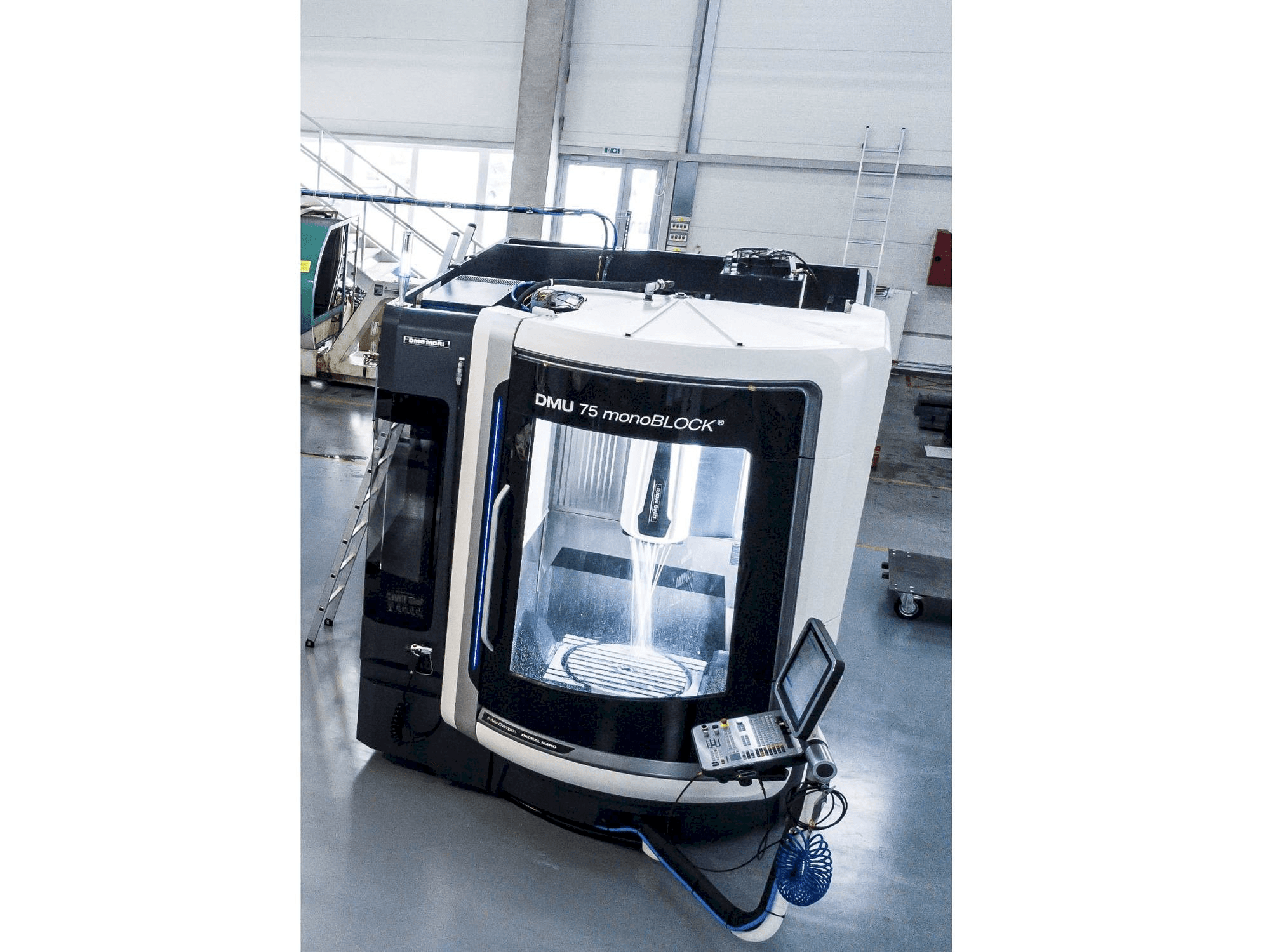

This DMG MORI DMU 75 monoBLOCK Vertical Machining Center was manufactured in the year 2018 in Germany. It has a record of 5050 hours, of which 2080 are spindle hours. This 5 axis machine operates through a HEIDENHAIN iTNC640 control unit. It can work with a spindle speed up to 20000 rpm. This machine includes several accessories as a handwheel and a wash pistol. It is in top conditions.
Overview
- brand: DMG MORI
- year: 2018
- MODEL: DMU 75 monoBLOCK
- production hours: 5050
- application type: Milling
- Location: Slovakia
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - DMG MORI DMU 75 monoBLOCK
General Data
- Machine weight: 11800 KG
Control Unit
- Brand: HEIDENHAIN
- Model: iTNC640
Main drive
- Number of spindles: 1
- Spindle speed range: 20000 1/MIN
- Spindle motor power: 35 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 750 mm
- X-AXIS Rapid traverse: 40 m/min
- Y-AXIS Movement: 650 mm
- Y-AXIS Rapid traverse: 40 m/min
- Z-AXIS Movement: 560 mm
- Z-AXIS Rapid traverse: 40 m/min
Workpiece
- Workpiece weight: 600 KG
Tools
- Slots in storage: 60
- Max weight: 15 kg
- Max tool diameter: 125/175 mm
- Max tool length: 400 mm
- Type of tool holder: HSK-A63
Media
- Main electronic connection: 400 V 50 HZ
- Power consumption: 49 KVA
Additional equipment
- - Handwheel
- - Wash pistol
- - Set of tool holders + workpiece probes
Additional Information
- Technical Machine Benefits:
- - Spindle torque (100% dc) 130 nm
- - Automatic tool changer 60 positions
- - Max. Workpiece height 500 mm
- - Paper filtration of emulsion
- - High pressure cooling thru spindle
- - Table diameter 650 mm
- Qualitative Machine Benefits:
- - Machine in top conditions
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
